Compact integrated weigh-wrap-label system
AW-5600CPII
RetailPrésentation

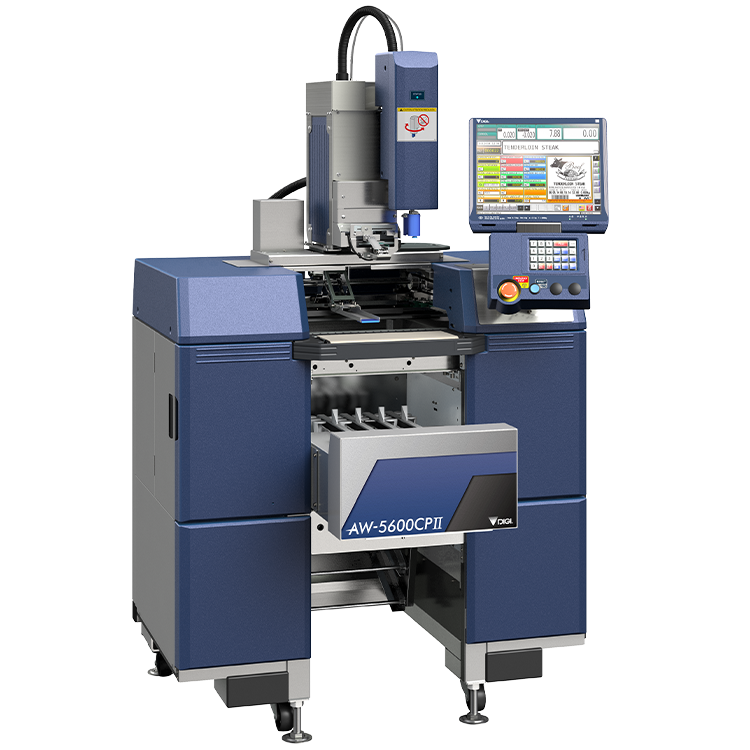

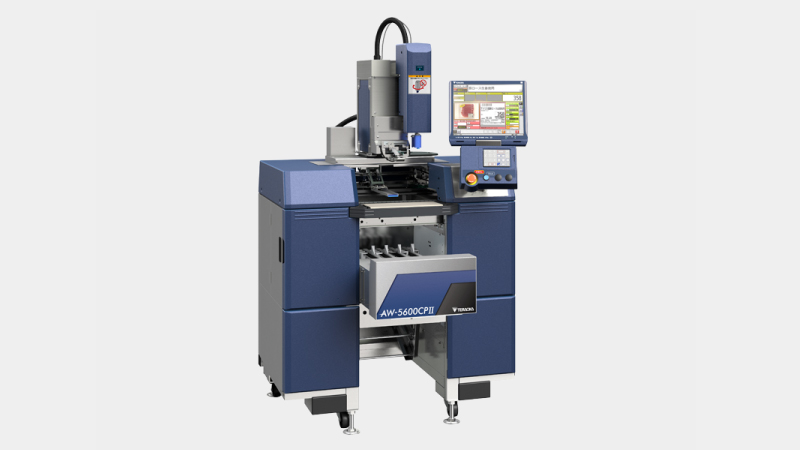

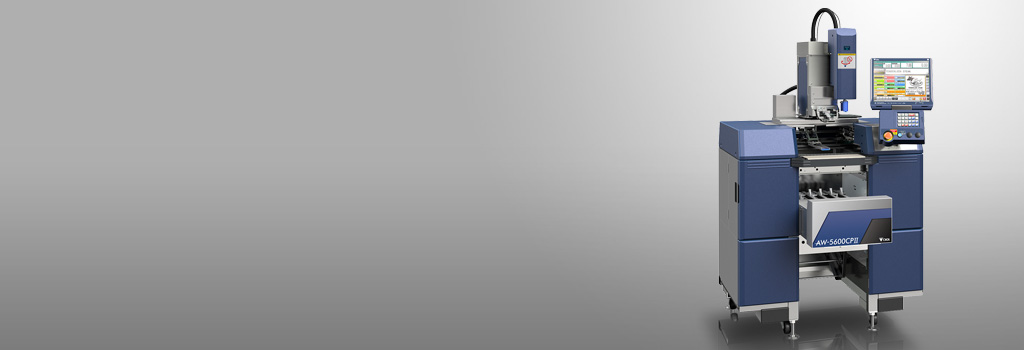

AW-5600CPII is the basic model of the 5600 series, providing an impressive 30 packages/minute throughput in a reduced-cost design. Its compact form retains the full-spec 300dpi high-resolution printer and extra-large full-color touchscreen display that are standard with the 5600 series. The newly developed rotational labeler arm allows fully automatic application of linerless labels. Variations include models with manual or automatic label application.
Compact integrated weigh-wrap-label system
The basic model of the 5600 series, providing an impressive 30 packages/minute throughput in a reduced-cost design.
High Productivity & User-friendly
Weighing, wrapping, and labeling can be done in one step at a maximum processing speed of 30 packages/minute. The user-friendly extra-large 15" full color touch screen allows label print contents to be previewed on the display, helping to prevent labeling errors.
Economical & Ecological
The linerless auto-label-sizing feature eliminates void spaces on the label and automatically adjusts the label size. Use of linerless labels minimizes waste, thereby integrating environmental friendliness into your everyday work process. AW-5600CPII AUTO integrates a newly designed rotational labeler arm to enable automatic label placement of linerless labels.
Easy Clean-Up, Every Time
AW-5600CPII is designed to be incredibly easy to clean. The parts that come into direct contact with food can be removed in seconds and washed with water. Also, the main unit sits well above the floor to allow mopping and sweeping.
Caractéristiques

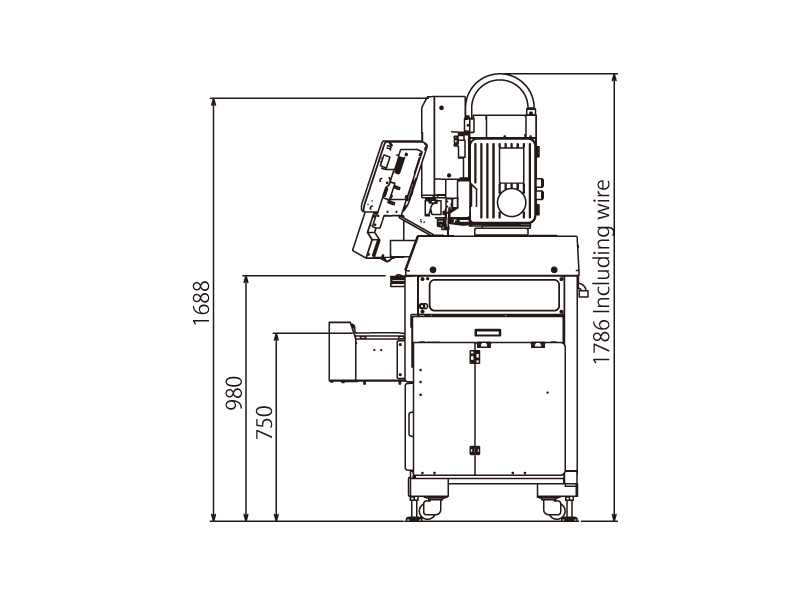

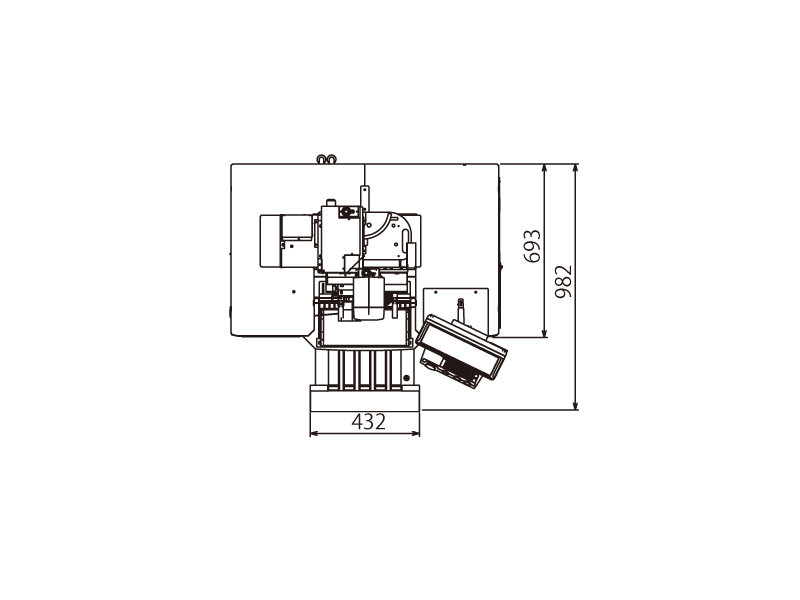

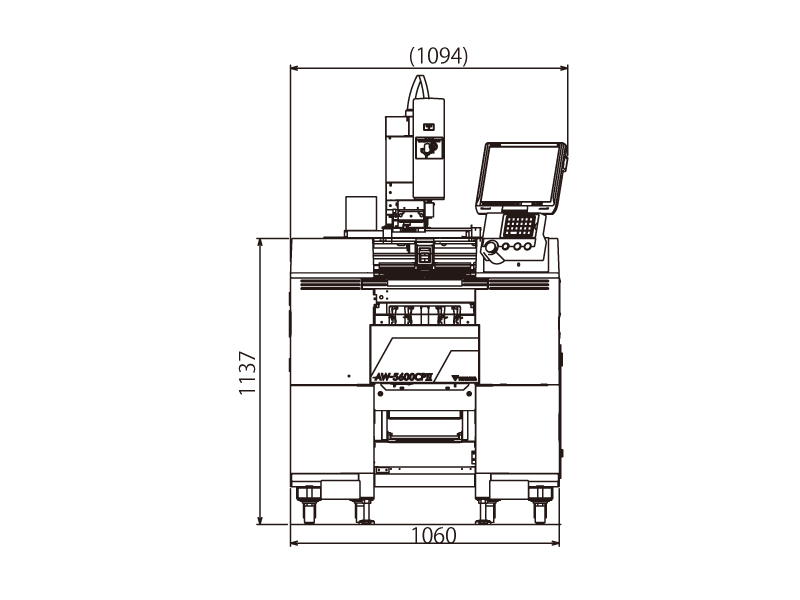

Dimensions
Wrapping
| Wrapping speed | Max. 30 packages/min. |
|---|---|
| Package size | Width: 130 to 350 mm/5.1-13.8 inches Height : 10 to 130 mm/0.4-5.1 inches Depth : 80 to 230 mm/3.1-9.0 inches * The combination of maximum size of each dimension cannot be used. The size of the package that can be wrapped also depends on the film used. |
| Film width | 300 to 500 mm |
Weighing
| Interval type | Multi interval | Single inerval | |
|---|---|---|---|
| Capacity | Max 3/6 kg | Max 6/15 kg | Max. 30 lb |
| Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
| Weighing range | 20 g - 6 kg | 40 g - 15 kg | 0.20 - 30 lb |
| Max. wrapping capacity | 5 kg | 5 kg | 11 lb |
Labeling
| Labeling application | Automatic application | Manual application | ||
|---|---|---|---|---|
| Die-cut Label | Linerless Label | Die-cut Label | Linerless Label | |
| Label width | 40 - 80 mm/ 1.6-3.1 inches |
44 - 59 mm/ 1.73-2.3 inches |
25 - 80 mm/ 0.98-3.1 inches |
44 - 59 mm/ 1.73-2.3 inches |
| Label length | 28 - 105 mm/ 1.1-4.1 inches |
28 - 105 mm/ 1.1-4.1 inches |
20 - 150 mm/ 0.79-5.9 inches |
20 - 500 mm/ 0.79-19.7 inches* * Maximum printing length is 300 mm/11.8 inches
|
Operation console
| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch screen |
| Memory for programmable files | 18 GB |
General
| Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.5 kW 220-240 V; 1 φ; 50/60 Hz; 1.8 kVA,1.5 kW |
|---|---|
| Net weight | Approx. 360 kg |
Modèles
Automatic label application
AW-5600CPII AUTO
Twin labeler
AW-5600CPII TWIN AUTO
