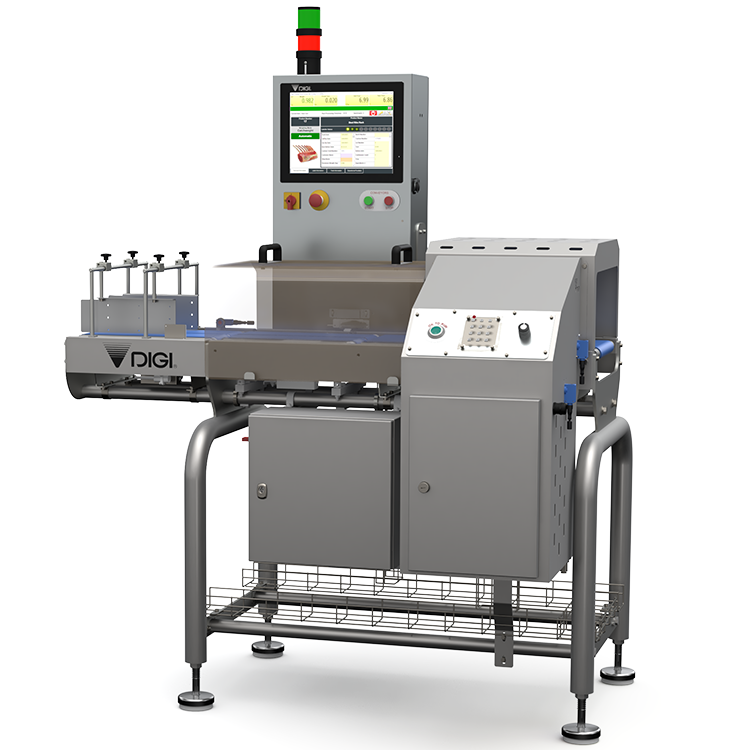

Checkweighing System With Integrated Rejection

CW-800RJ

Food Industry

Main Features

The CW-800RJ is a fully-automated checkweighing system with integrated rejection, capable of processing 150 packs per minute. Its high productivity will ensure targets are met, whilst your brand is protected by ensuring target weight is met.

Download brochure here

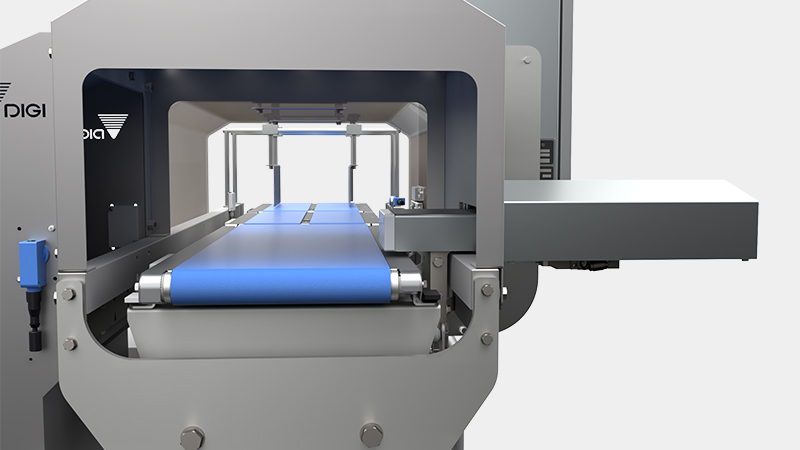

cw800rj_WP04_01

Integrated Rejector

With the CW-800RJ, you will have complete control of the weight of your batches, accepting all that meet your specified weight and rejecting those that do not.

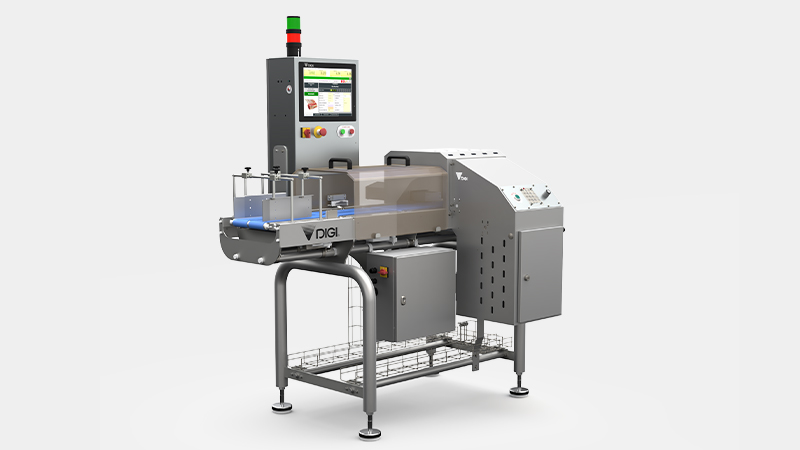

cw800rj_WP04_02

Automatic Checkweighing of up to 150ppm

Understanding the demands of the modern production environment, the CW-800RJ has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.

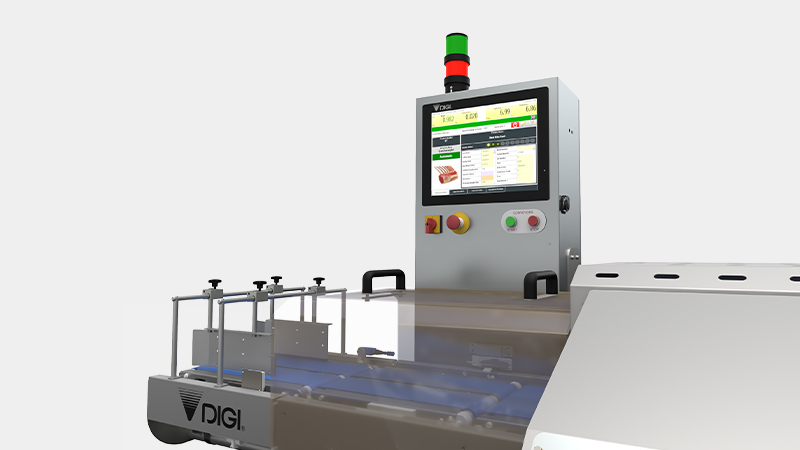

cw800rj_WP04_03

User-Friendly Interface

The CW-800RJ uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows®  operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.

Specifications

Dimensions

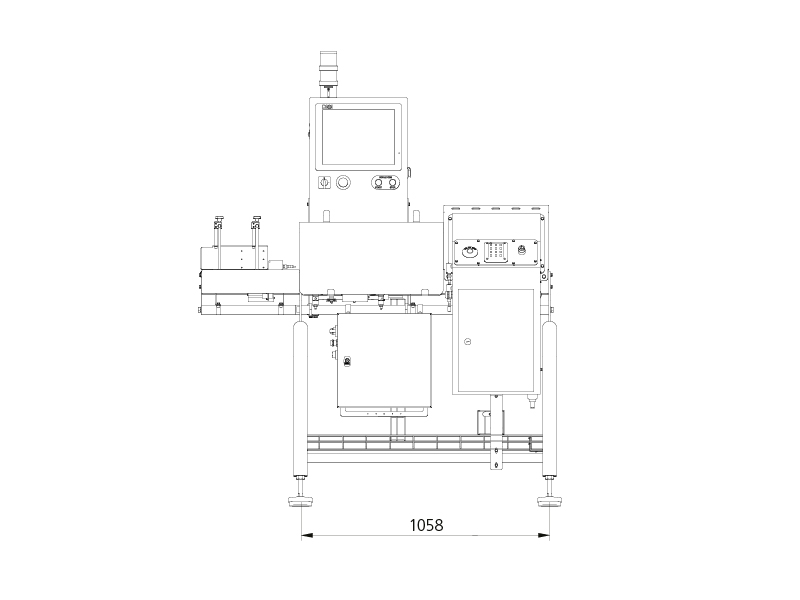

  • cw800rj_WP05_01

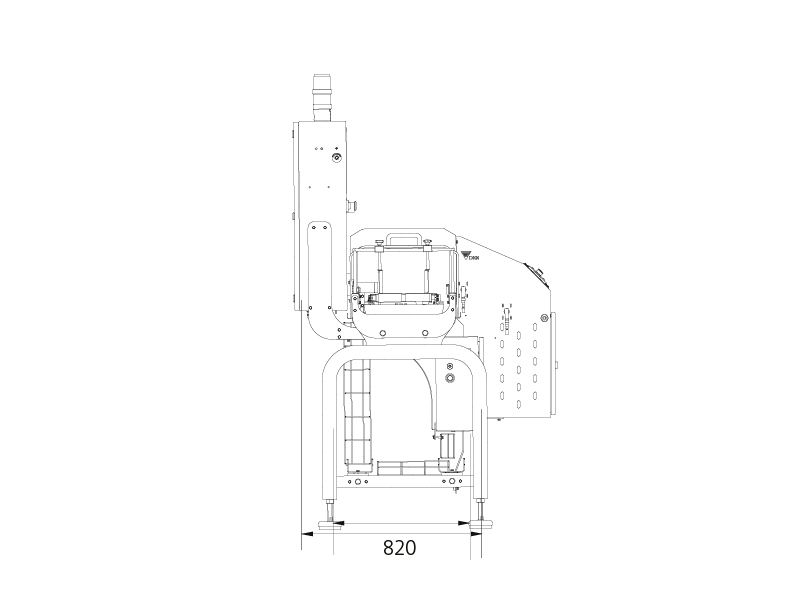

  • cw800rj_WP05_02

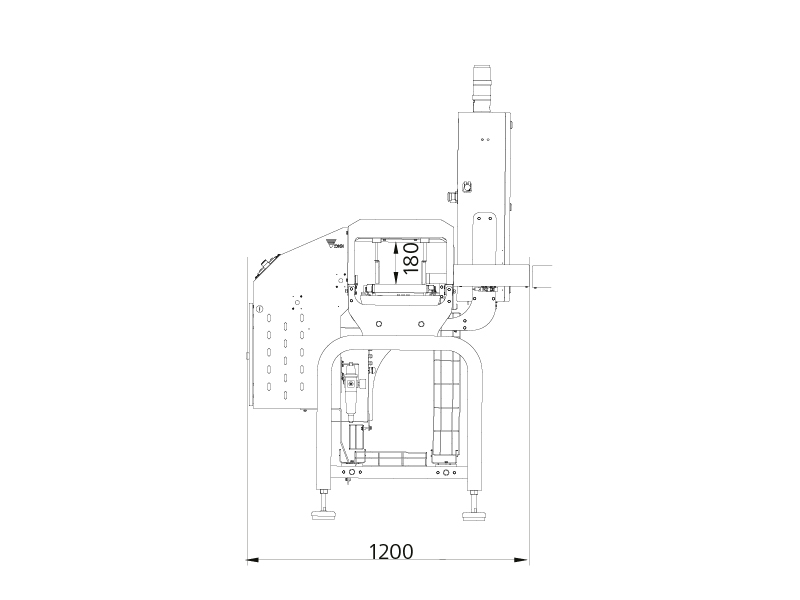

  • cw800rj_WP05_03

Weighing


Capacity Max 6 kg
Single Interval e= 1g
Pack Speed up to 150 packs per minute
Pack Size   L80-300mm x W40-250mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Fixed Weight, Average (Emark)
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Pack Guides Adjustable width pack guides
Conveyors Blue belts

Variations

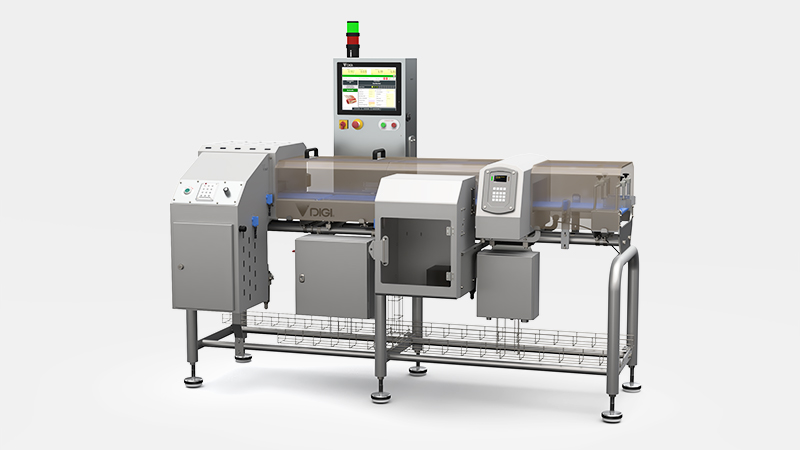

cw800rj_WP07_01

CW-800 with Metal Detection and Rejection (CW-800 Combi)

Fully automated weighing, metal detection and rejection of your products. Protect your brand by ensuring target weight is met and foreign contaminants are kept out. Visit the CW-800 Combi product page for full details.

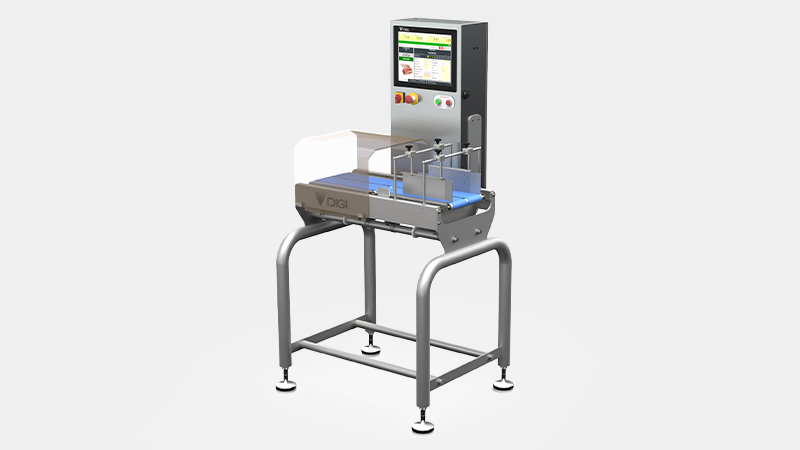

cw800rj_WP07_02

Standalone Checkweighing (CW-800)

Compact, single-framed checkweighing system for high productivity. Visit the CW-800 product page for more details.

Options

Options

Options Barcode scanners/controllers, Metal detection, Rejection, Pack sensors, Pack guides
