The latest model in the industry's top-selling lineup of automatic thermal labelers for food processing lines

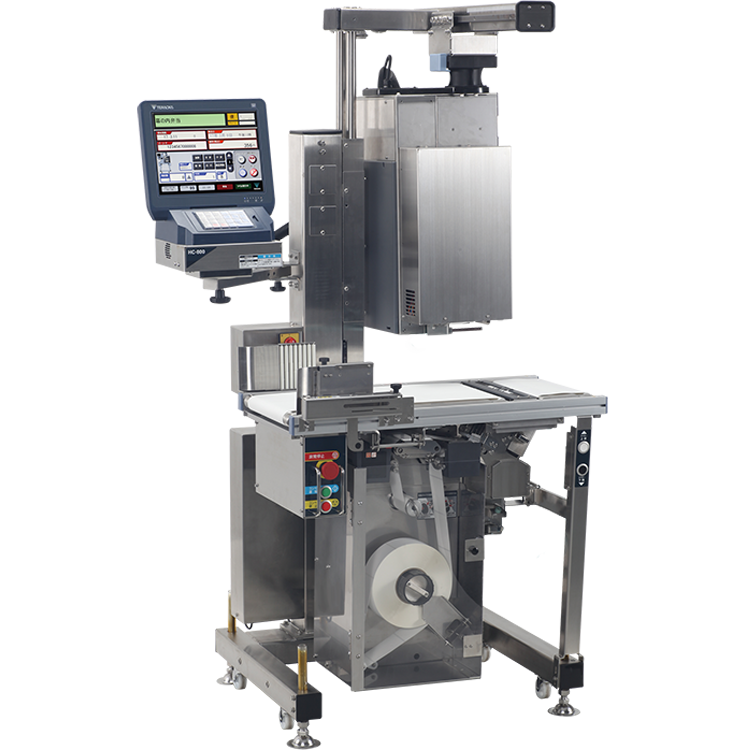

HC-800
Food IndustryMain Features
Taking advantage of know-how cultivated from a large installed user base, HC-800 is a label printer with great ease of use and convenience, making it ideal for convenience stores and volume retailer vendor systems. By installing a special application, the printer is able to display and print a variety of labels for processed foods, such as bento lunch boxes and side dishes. We completely revamped the basic functionality to allow more accurate and efficient operation in an easy-to-clean, space-saving form factor.

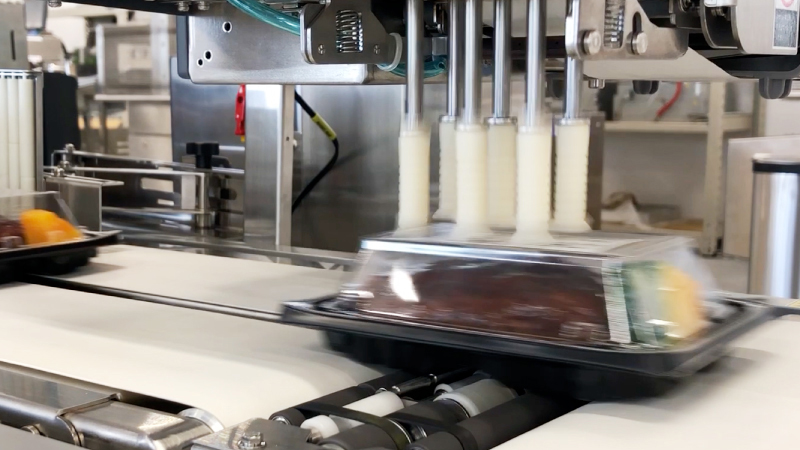

Realizing more advanced labeling
HC-800 realizes improved performance over conventional labelers in terms of cleaning, space-savings, speed, and precision. The top labeler uses a rotating applicator, so a label angle can be set for each master. We also added an array of features to fundamentally improve the performance of the print/apply functionality, to further advance daily labeling operations.

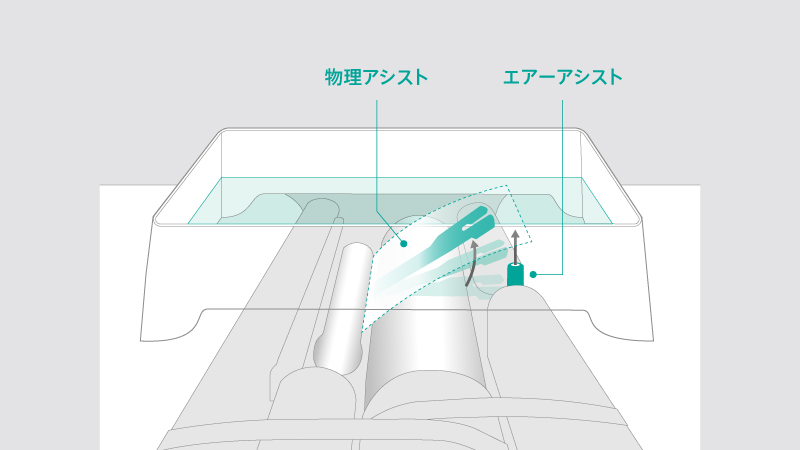

Compatible with raised bottom trays
With tray shapes becoming more varied, certain tray types, such as raised-bottom trays, may pose a challenge when applying a label to the tray bottom. In addition to making the conveyor flat to stabilize tray movement, HC-800 includes two additional mechanisms, a physical assist and an air blow assist, for applying bottom labels. You can select which to use according to the product weight and the shape of the tray bottom; the unit can handle trays with raised bottoms of up to 15 mm.
Easy to replace consumables and easy cleaning!
A dedicated mode for replacing the platen roller has been added, where the roller moves to a position where it can be easily replaced without special tools.
In addition, a flat-panel LCD with excellent visibility and operability is adopted, making cleaning that much easier.

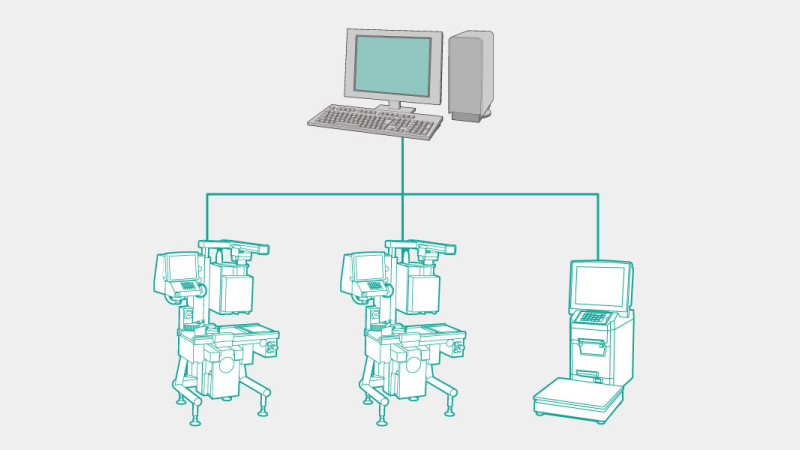

Network connectivity for centralized data management
Connecting the labeler to a your LAN using the PCS-L700 labeler controller allows you to:
1. Centrally manage label masters
2. Manage printing dates
3. Manage printing orders
4. Monitor labeling progress
5. Centrally manage printing history
Specifications

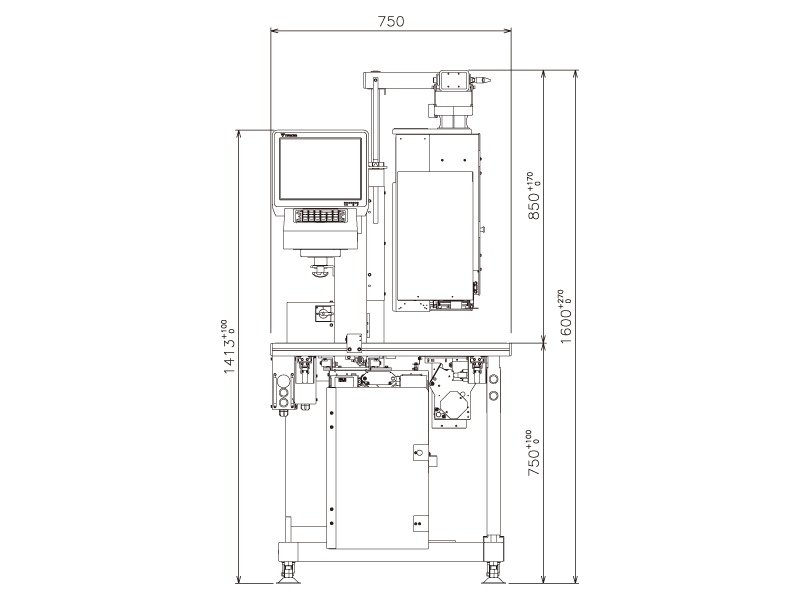

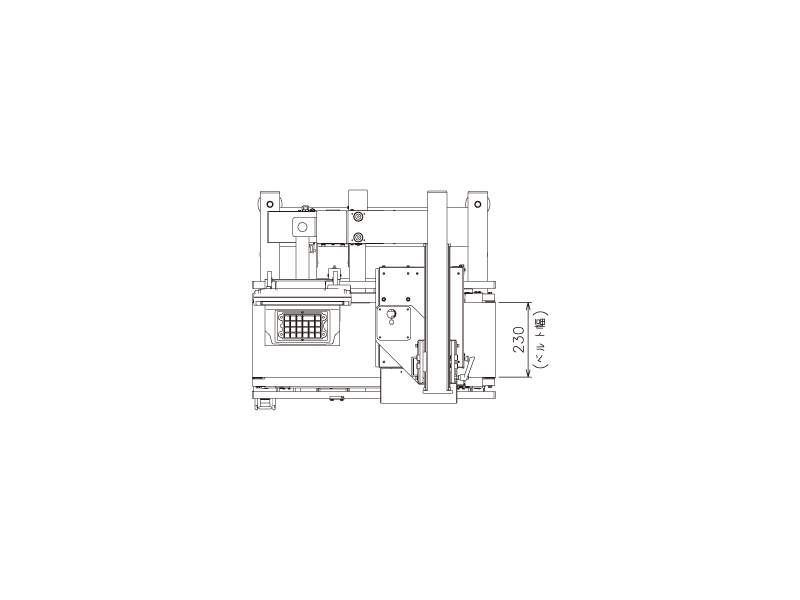

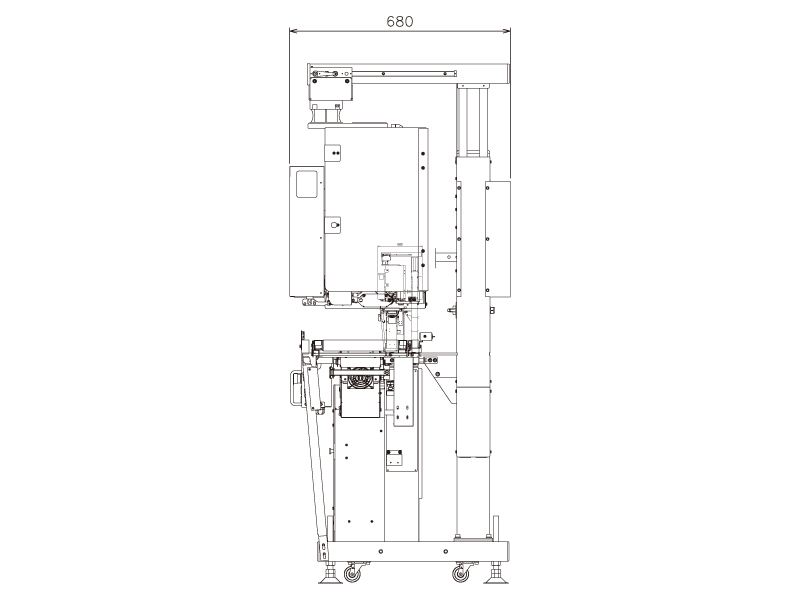

Dimensions
| Labeler Cassette type | Cassette type | Non-cassette type | ||
|---|---|---|---|---|
| Printing method | Thermal printing (300 dpi) | |||
| Label print speed | Max. 200 mm/sec | Max. 300 mm/sec | ||
| Package size | Width | 50 to 240 mm | ||
| Length (Upper Applicator) | 50 to 240 mm | |||
| Length (Bottom Applicator) | 70 to 350 mm | |||
| Height | 15 to 190 mm | |||
| Label size | Upper Applicator *Non-cassette type Rotary applicator |
Width | 40 to 80 mm | |
| Length | 28 to 100 mm | |||
| Upper Applicator Rotary applicator |
Width | 40 to 80 mm | ||
| Length | 28 to 100 mm | |||
| Bottom Applicator Non-cassette type |
Width | 40 to 80 mm | ||
| Length | 28 to 130 mm | |||
| Dimensions of main unit | Width | 750 mm | ||
| Length | 680 mm | |||
| Height | Max. 1824 mm | Max. 1870 mm | ||
| Conveyor Height | 800 mm ±50 mm | |||
| Direction of product flow | Right flow or Left flow | |||
| Power supply | 100V Single phase | |||
| Power consumption | 260 W | 390 W | ||
| Conveyor speed (m/min.) | 5.5 to 50 (Variable) | |||
| Air consumption | Upper Applicator | Max. 1.61 ℓ/sheet | ||
| Bottom Applicator | Max. 2.36 ℓ/sheet | |||
| Weight of main unit | 130 kg | 150 kg | ||
| Operating temperature | 5℃ to 35℃ (without condensation) | |||
