Picking carts with built-in scales enable simultaneous picking and quantity verification

AI picking carts

Logistics

Order Picking & Sorting System

Main Features

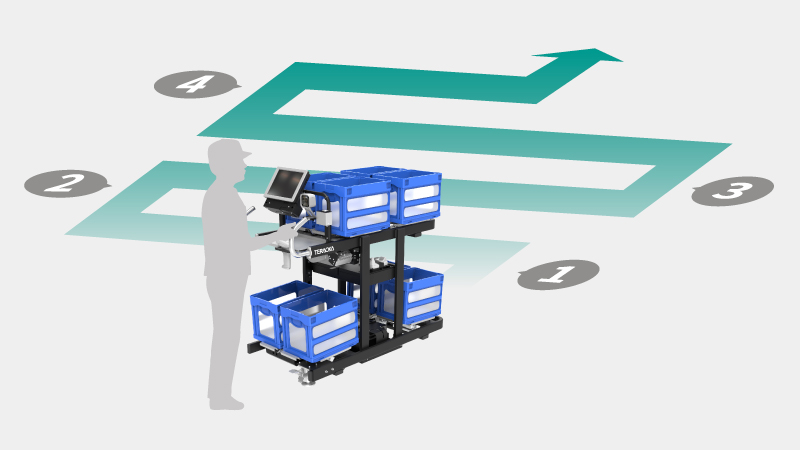

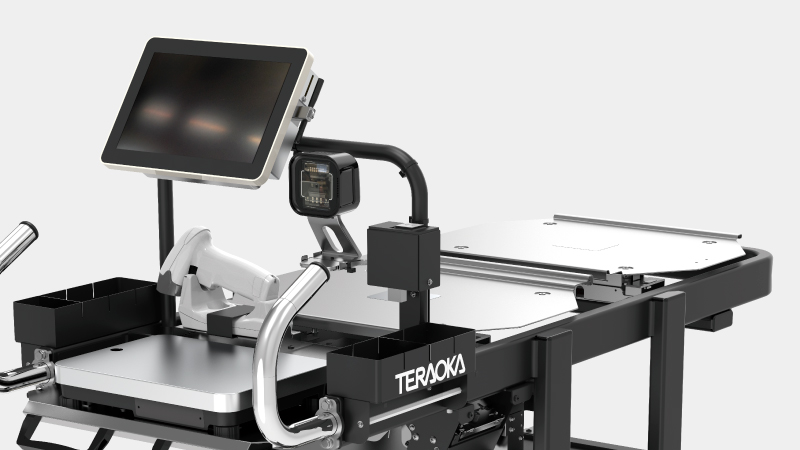

Cart with built-in scale is ideally suited for the most labor-intensive picking work in distribution centers. Contributes to increased productivity by wirelessly communicating with the shipping/receiving management system (IT-Matex III), which verifies quantities picked while simultaneously determining the optimum picking path. Eliminating the need to work with forms such as shipping instructions and minimizing the need for printed labels, this system helps reduce operational costs. Lightweight and compact even with its built-in scales, the cart also excels at navigating aisles.

Weight and quantity can be measured simultaneously

In this video, we introduce the features of this product.

High-precision loadcell

Accurate quantity verification is achieved by adopting a high-performance load cell (internal resolution: 1/30,000; display resolution: 1/3000) to minimize unit weight errors.

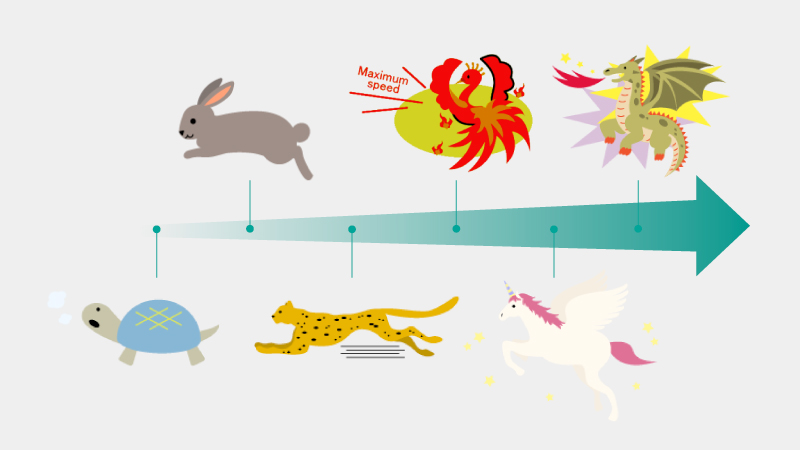

Worker motivation function

An animal character on the display changes to indicate per-hour picking performance. This helps workers increase performance in an enjoyable way.

Simultaneous box/loose verification

Box and loose weights can be registered for each PLU according to packing type. Not only does this facilitate simultaneous picking of boxed and loose items, but it helps keep orders together and makes it easy to tell how many items should be removed from a container to fill an order.

Specifications

Dimensions

Product	Model	PKGM-4800	PKGM-4400	PKGM-4400F	PKGN-3300	PKGM-2100	PKGM-3100	PKGC-4500
Product	Type	Multi-cart (Vertical type)	Multi-cart (Vertical type)	Multi-cart (Front-on type)	Multi-cart (Vertical type)	Single cart (Detachable type)	Single cart	Built-in lightweight scales
Display		10.4-inch TFT LCD			10.1-inch TFT LCD	10.4-inch TFT LCD		10.1-inch TFT LCD
Wireless communication	Wireless LAN	IEEE 802.11a/b/g/n/ac
Scanner		UPCA, UPCE, EAN/JAN 8, EAN/JAN13, CODE39, CODE128, ITF2of5
Printer	Print Method	Thermal Printing
Printer	Print Size	80 (W) x 115 (L) mm
Weighting Section (Loading)	Maximum load weight	6kg/15kg	30kg
	Minimum increment	1g
	Number of scales	8	4		3	1		4
Weighting Section (Lightweight)	Maximum load weight	-						2.5kg/5kg
	Minimum increment	-						0.2g/0.5g
	Number of scales	-						1
Power supply	Continuous operating time	14 hours or better (front-on type cart) * Varies according to manner used and environment.
	Type	Ni-MH (Nickel-Metal Hydride Battery)
	Charging time	10.5 hours
	Charging system	DIGI Chain charging (charges up to 5 units at once)			Magnetic Charging	DIGI Chain charging (charges up to 5 units at once)
Cart	Operating Temperature	5 to 35℃ during operation, 0 to 55℃ in storage
	Operating Humidity	20 to 85% RH (no condensation)
	Frame material	Aluminum
	Dimensions (mm) W x L x H	570×1,277×1,174		800×977x1,097	480×1,239×1,152	620×1,001×1,196	570×1,335×1,000	570×1,327×1,174
	Weight	64.5kg	50kg	55kg	50kg	45kg	47kg	57kg

Variations

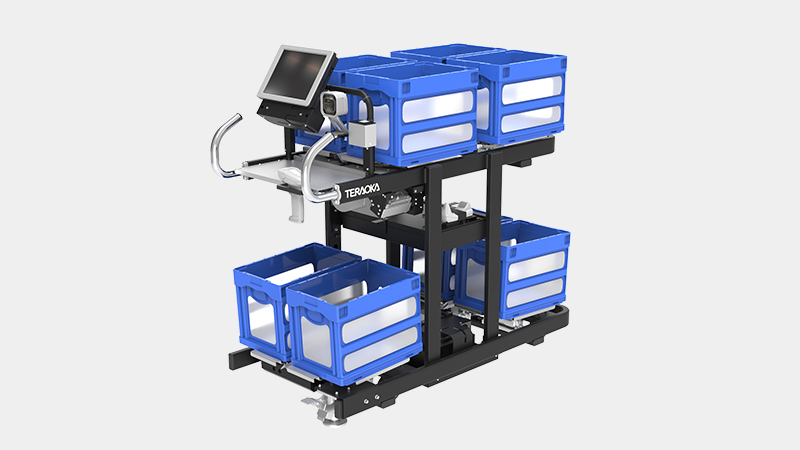

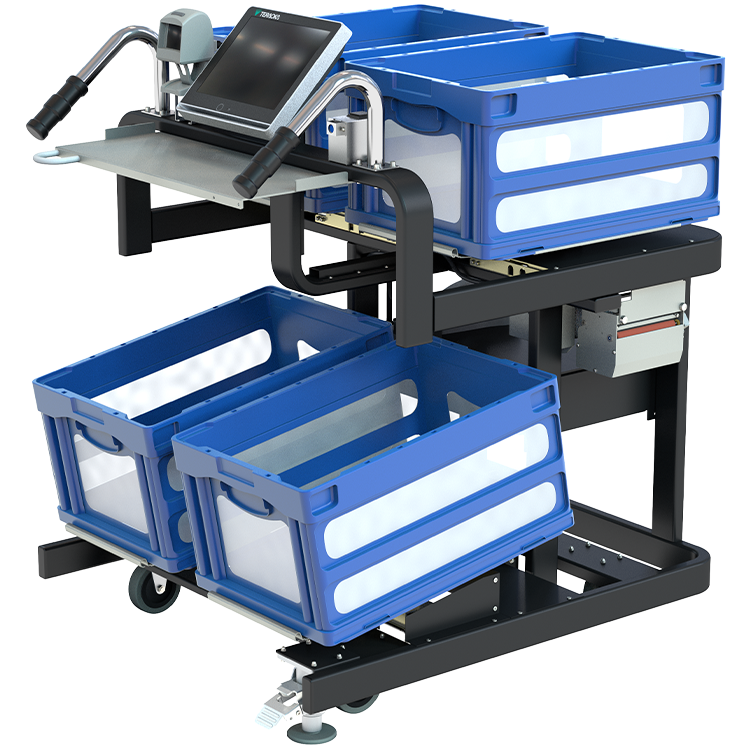

Multi-cart (vertical type)

PKG-4000

Equipped with four scales, this cart makes it possible to pick up to four orders simultaneously. With a width of just 570mm, its compact design allows easy movement past other workers even in narrow aisles.

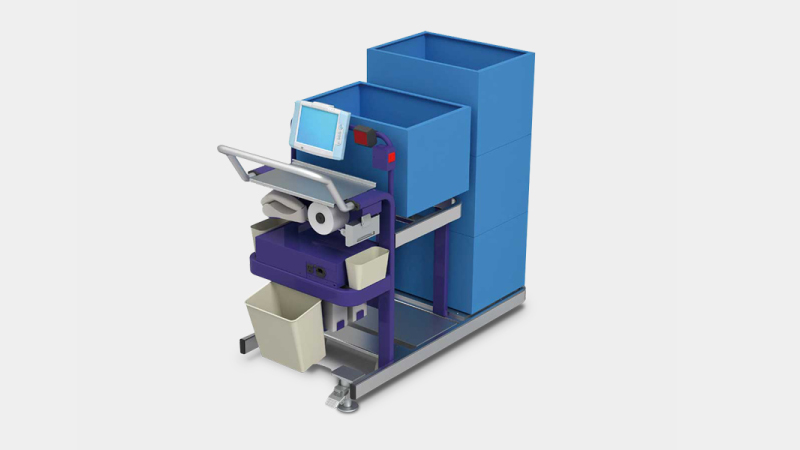

Multi-cart (front-on type)

PKG-4000F

Equipped with four scales, this cart is designed with smooth loading setting as top priority. It is suitable for use at sites that have wider aisles.

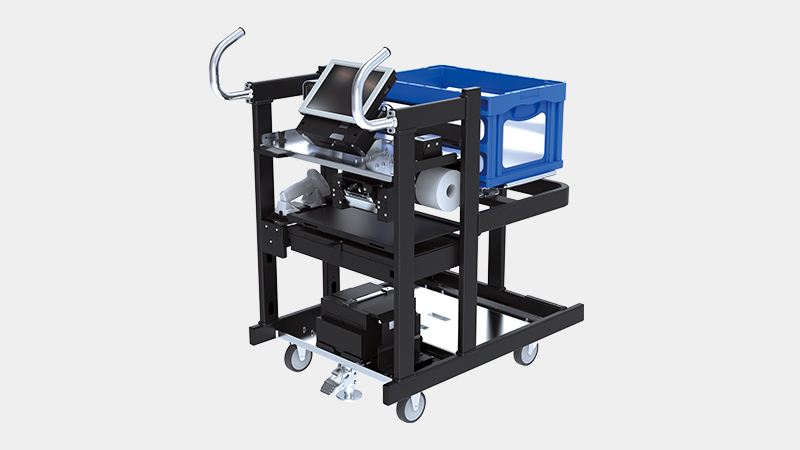

Single cart

PKG-3100

This cart can carry up to three picking boxes in addition to the one that is currently being worked.

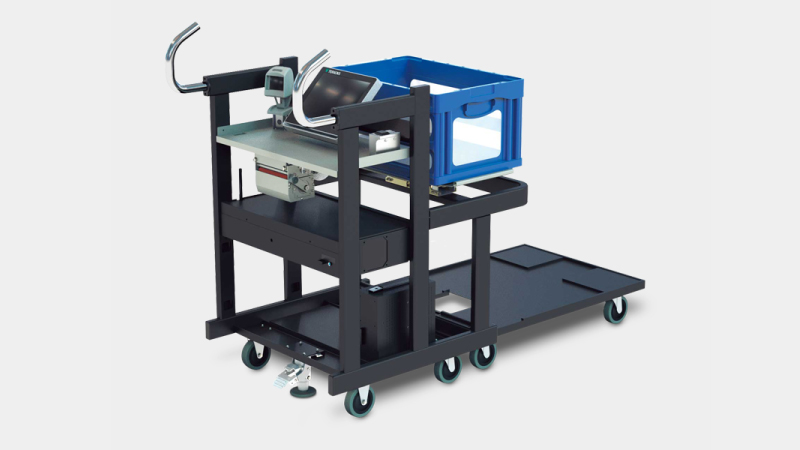

Single cart (detachable type)

PKG-3100D

Based on the PKG-3100 single cart, the front part of the cart with it scales can be detached from the rear part that holds the picking boxes. This greatly reduces work required to change picking boxes when the working box becomes full.

Case Studies

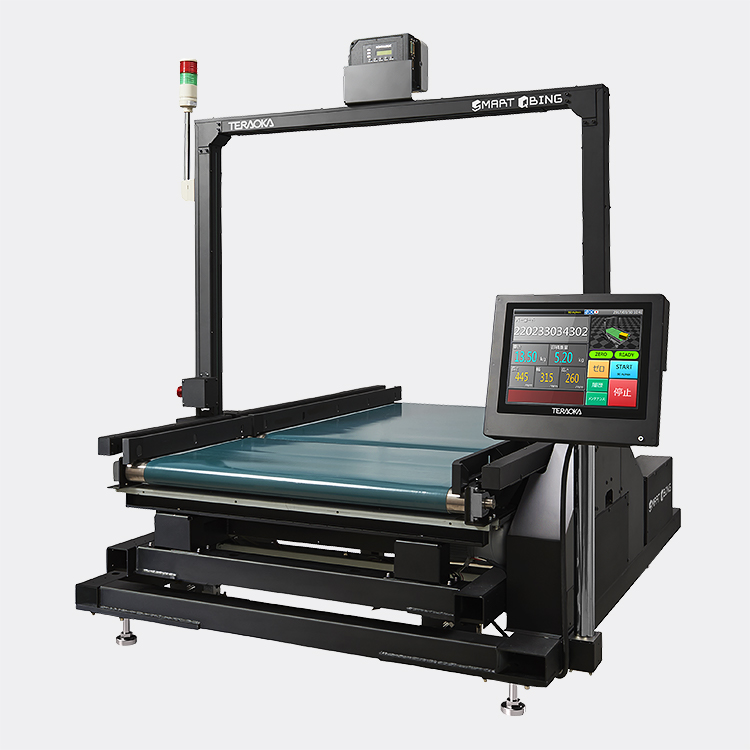

AI Picking Cart - Picking Cart with Built-in Weigh Scale SPK - High-precision Dimensioning Weigh Scale

Tokyo Logistics Factory Co., Ltd.

The need for inspection and repacking of products before shipping was eliminated, dramatically improving work efficiency and increasing productivity.

Read Full Case Study

AI Picking Cart with Built-in Weigh Scale and SPK High-precision Dimensioning Weigh Scale

Keihin Distribution Co., Ltd.

Improved productivity by increasing picking accuracy through double inspection (scanning and weighing) and reducing post-picking inspection work when packaging.

Read Full Case Study

FAQ

Aside from eliminating storage for forms, what is the advantage of doing away with paper picking lists?

Time required to produce lists is eliminated, including printing. Errors in product type, packaging, and quantity that result from misreading lists are also reduced. Further, not having to hold a list leaves both hands free for picking.
How much time is needed for charging?

14hours or better (front-on type cart)
* Varies according to manner used and environment.
