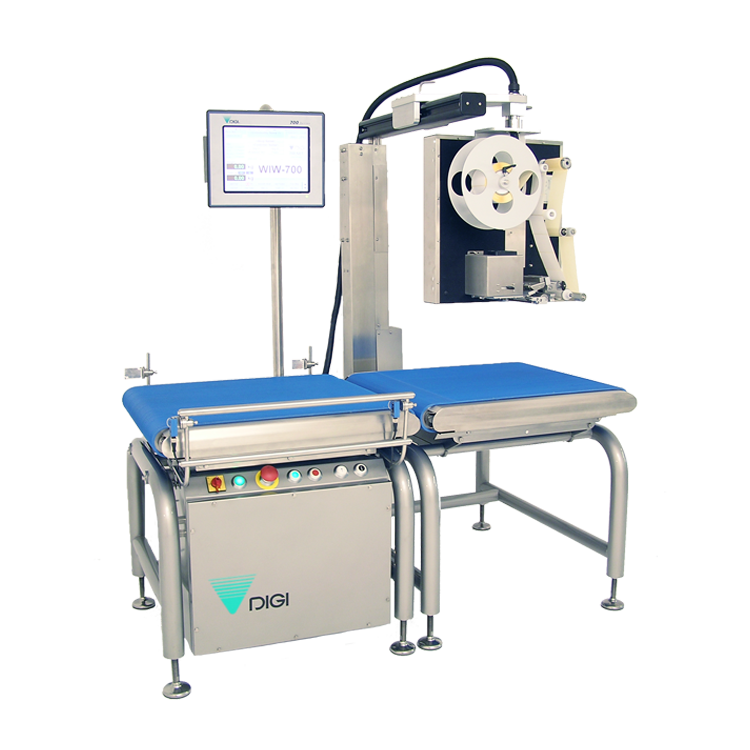

Automatic heavy duty weigh price labeler

WIW-700

Food Industry

Automatic Weigh Labelers

Main Features

The WIW-700 is a high capacity dynamic weigh price labeling machine. The powerful drum motor conveyors can carry large loads up to 60kg with a typical crate/tray size of 600mm long x 600mm wide. This PC based machine allows easy integration with existing machines and networking and comes with color touch screen for easy programming and plu selection.

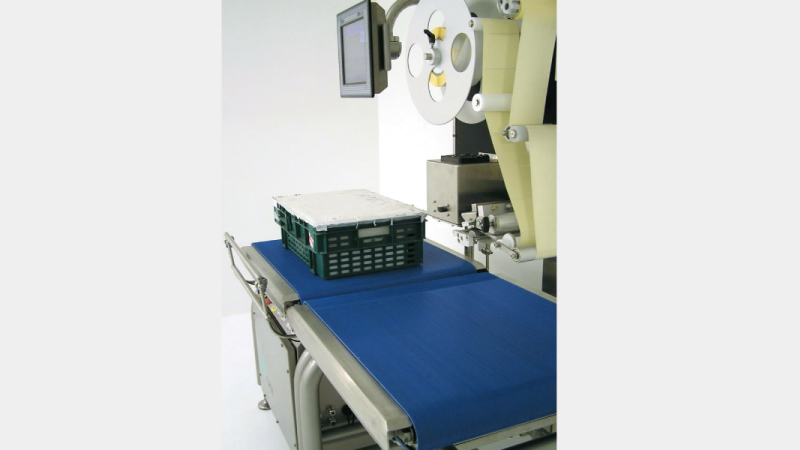

Large crate capacity

The powerful drum conveyor motors will transport products up to 60kg and with the large size deck a crate of up to 600mm long x 600mm wide can be weighed and labeled.

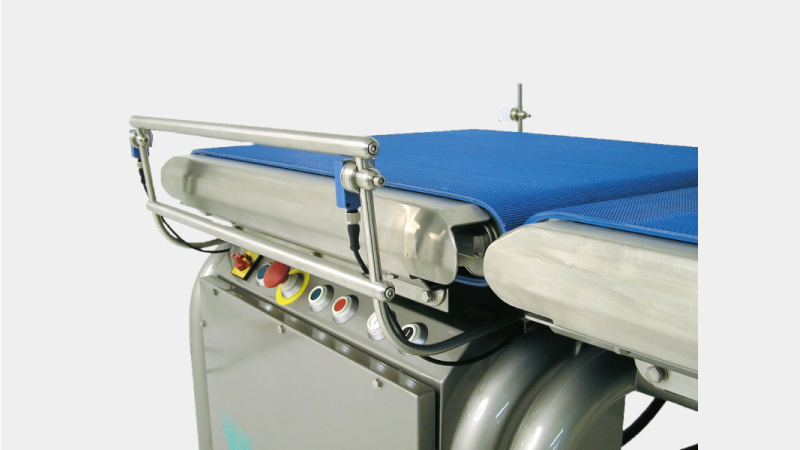

Wide sensors

The extra wide sensor positioning ensure the widest of products pass through the machine correctly.

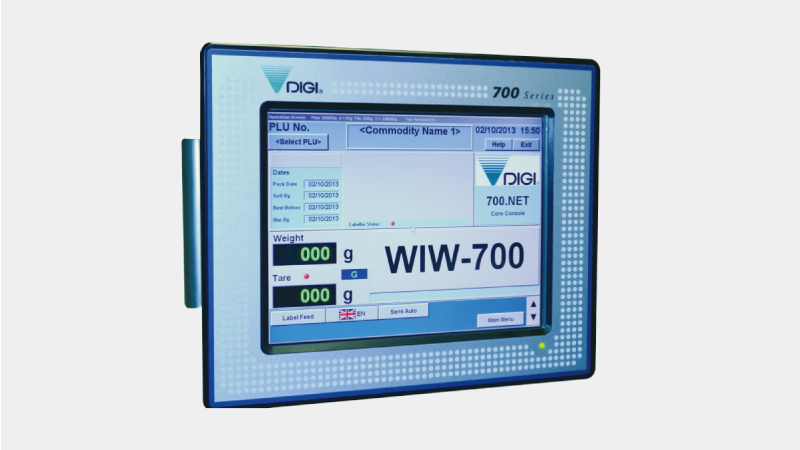

WIW-700 operation system

The DIGI-700 series uses an industrial PC utilising embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring.

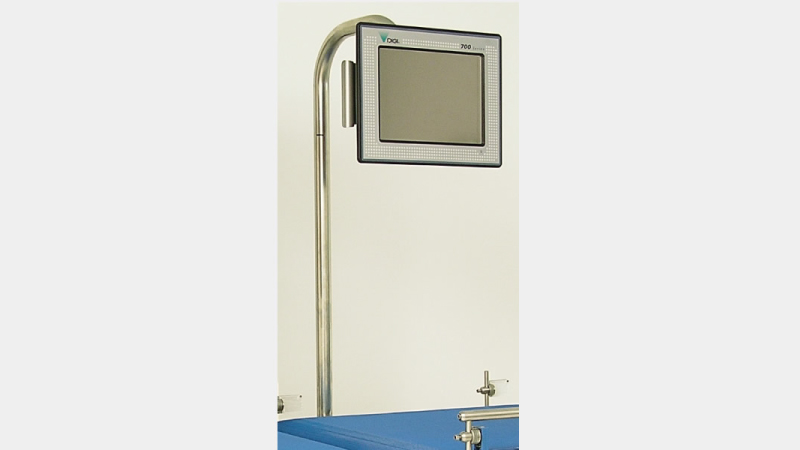

Adjustable screen position

The WIW-700 has the color touch screen mounted on a multi position swivel assembly. This allow the operator easy access to the screen without being restricted by the large conveyors.

Specifications

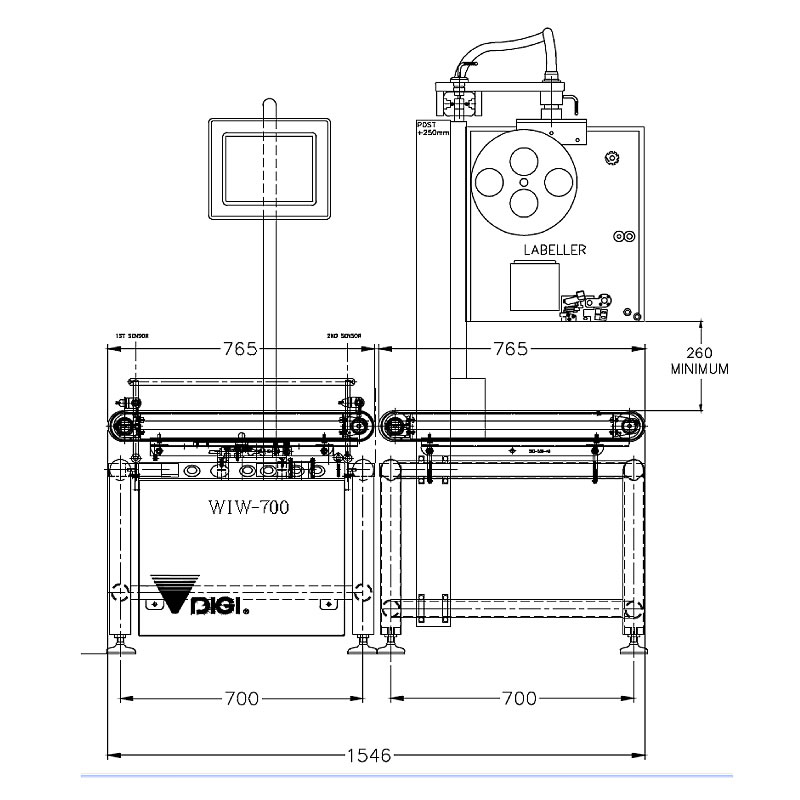

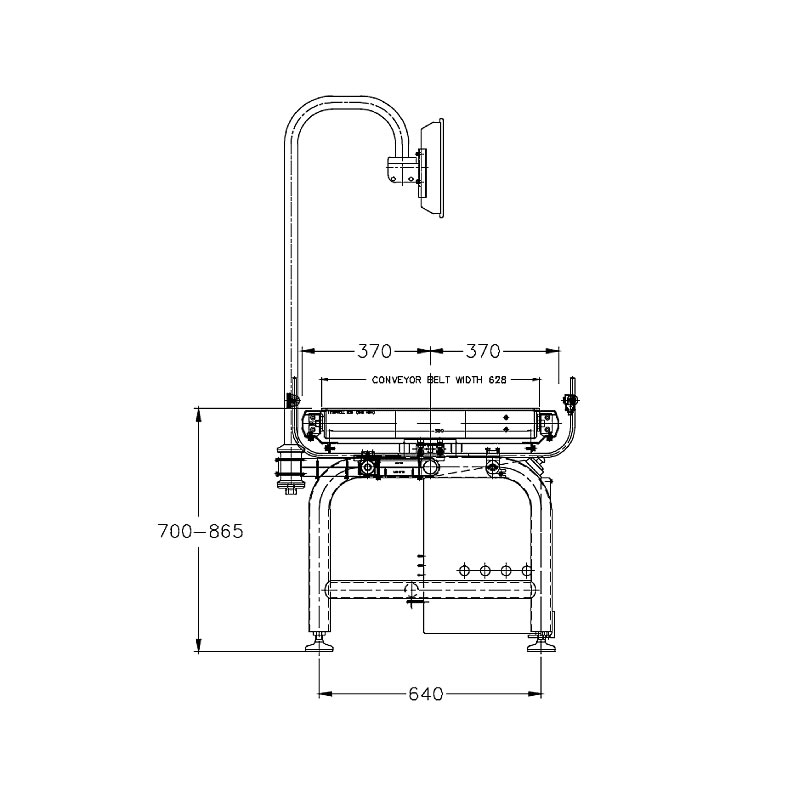

Dimensions

Weighing

Capacity	Max 30 kg	Max 60 kg
Single Interval	e= 10g	e= 20g

Display

Screen	12.1 Color LED display
Touch panel	12.1 pen/finger resistive type

Operation and general specification

Conveyor speed	Pre-set fixed speed of 15 to 24m/min (18-30ppm)
Conveyor lengths	Infeed(option): 765mm, Scale: 765mm, Outfeed: 765mm (classic labeler)

Pack size

Pack size capable	Length: up to 600mm, Width: up to 600mm, Height: 240 to 400mm

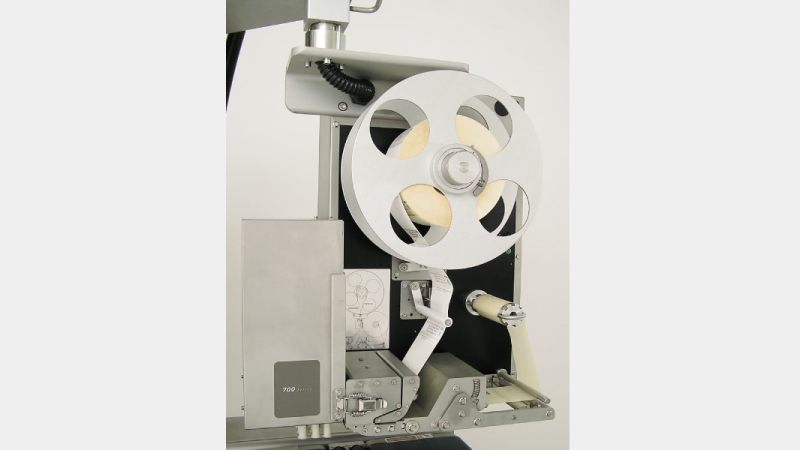

Labeler - Classic

Label size	Width: 30 to 120mm, Height: 28 to 150mm
Label roll	max 300mm diameter, 76mm core, inside/outside wound
Label application system	9 finger touch, Multijet air box
Print speed	50 to 260mm/sec
Print head	80mm at 300dpi, 108mm at 300dpi

Options

High speed labeler

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
                      Height: 28 to 150mm
Label roll - Roll diameter 300mm
                  Core diameter 76mm
                  Outside or inside wound
Print speed - 50 to 260mm/sec
Near edge printing

When the high speed labeler is used the outfeed conveyor is increased in length to 992mm

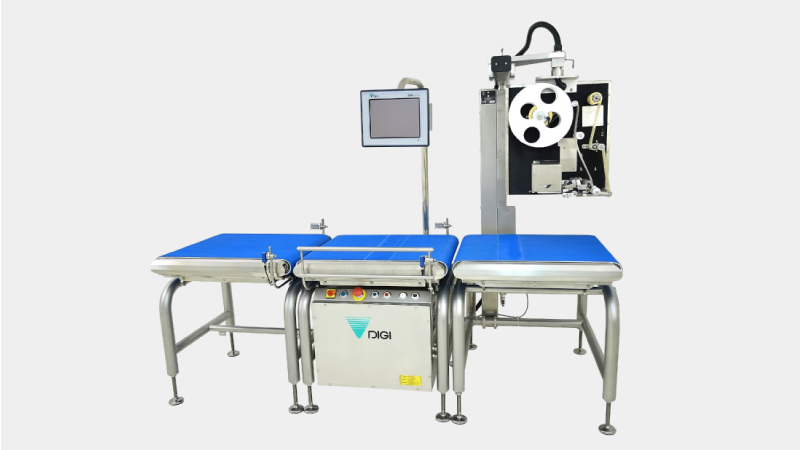

Optional infeed conveyor

An optional infeed conveyor can be added to the WIW-700. This infeed conveyor is the same length as the scale conveyor (765mm).

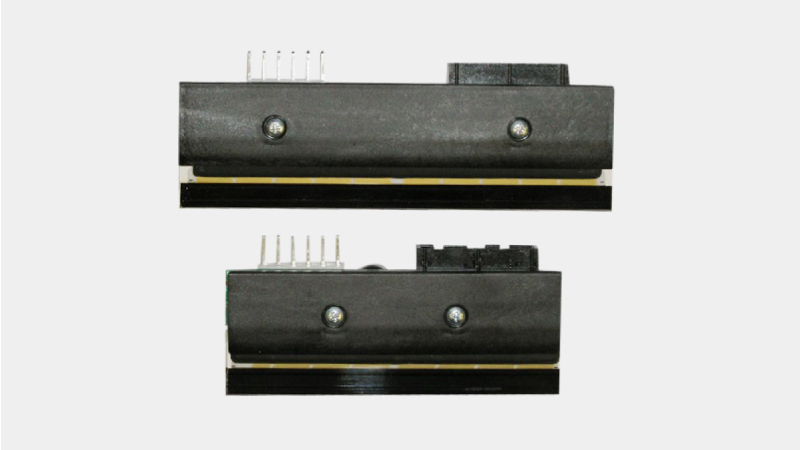

Thermal heads

As standard an 80mm wide thermal head is fitted to high speed and classic labelers. A 108mm wide thermal head is available for these two labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).

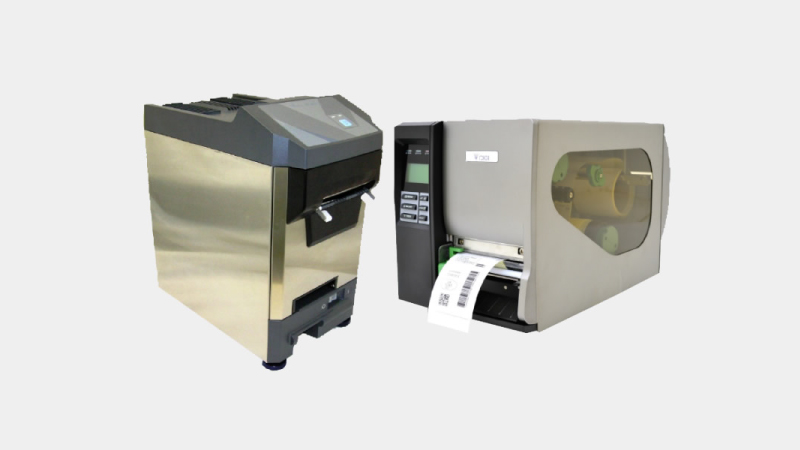

Additional printers

The flexibility of the WIW-700 allows other industrial type printers that support TCP/IP communication to be connected.

FAQ

Can the flow direction of the machine be left to right or right to left?

The machine can be built to either flow direction.
Can the labeler use thermal ribbon?

A thermal transfer ribbon kit can be fitted to the Classic labeler to allow the use of thermal ribbon.
What is the longest pack the WIW can weigh?

The WIW-700 can weigh a product up to 600mm long.
What is the widest pack the WIW can weigh?

The WIW-700 conveyor can handle a pack up to 600mm wide.
What is the conveyor speed of the WIW?

The WIW is a single fixed speed machine with a conveyor speed pre-set to between 15 and 24m/min which will give a maximum throughput of 30ppm.
