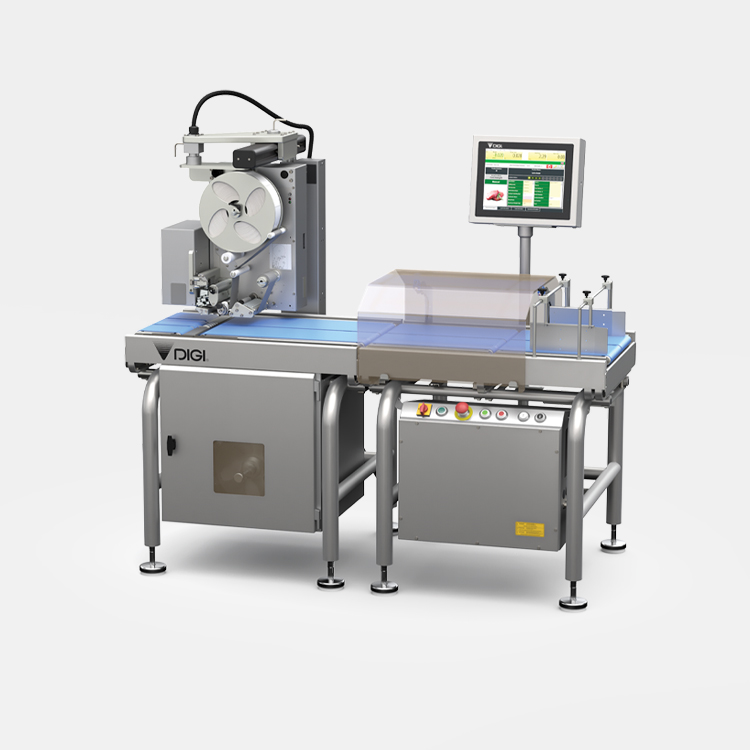

Mid-Speed Weigh Price Labeler For Wider Products
MI-700W II
IndustrieBelangrijkste kenmerken

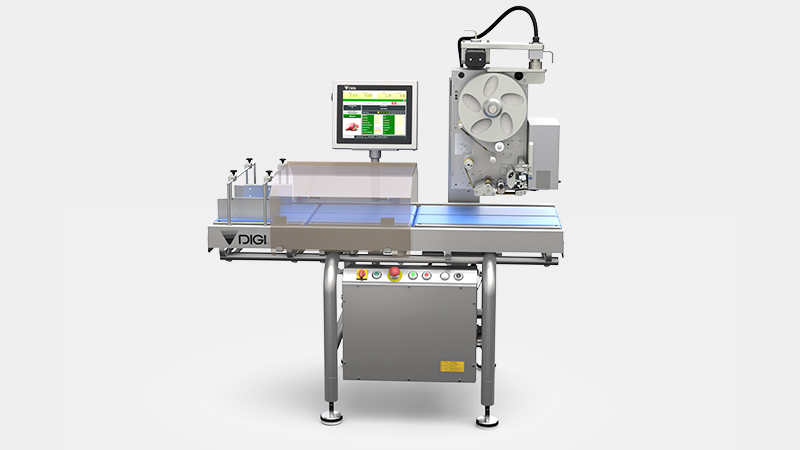

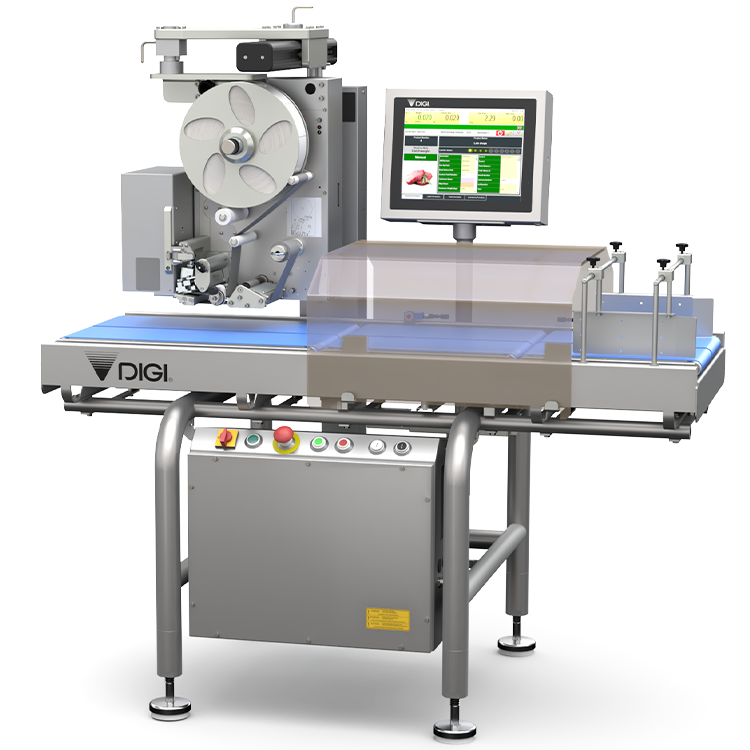

The MI-700W ll is a mid-range Weigh Price Labeler, featuring a single frame design and wider conveyors, processing wider products at a speed of up to 80ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.

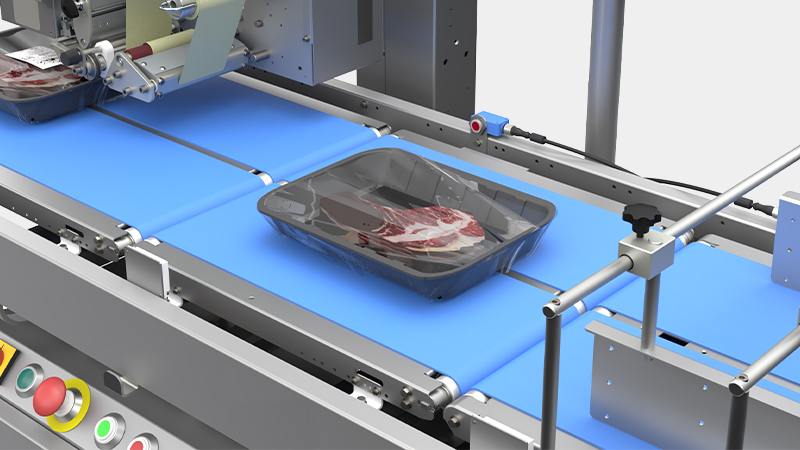

Wide Conveyors
The 400mm wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 80ppm.

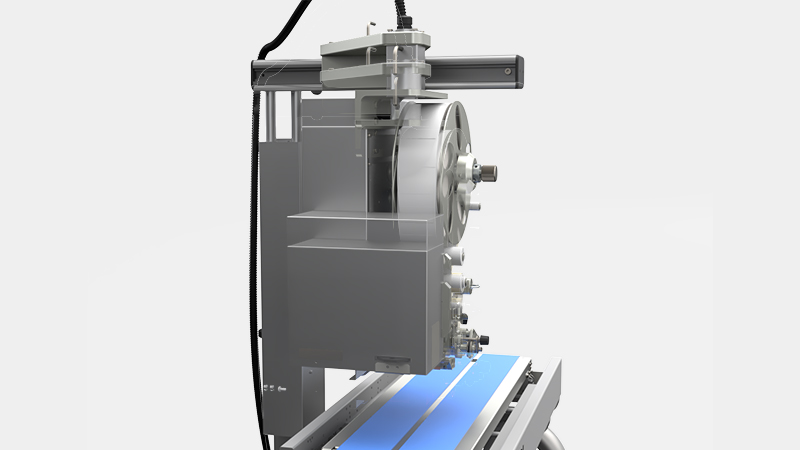

Signature Labeler
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
Specificaties

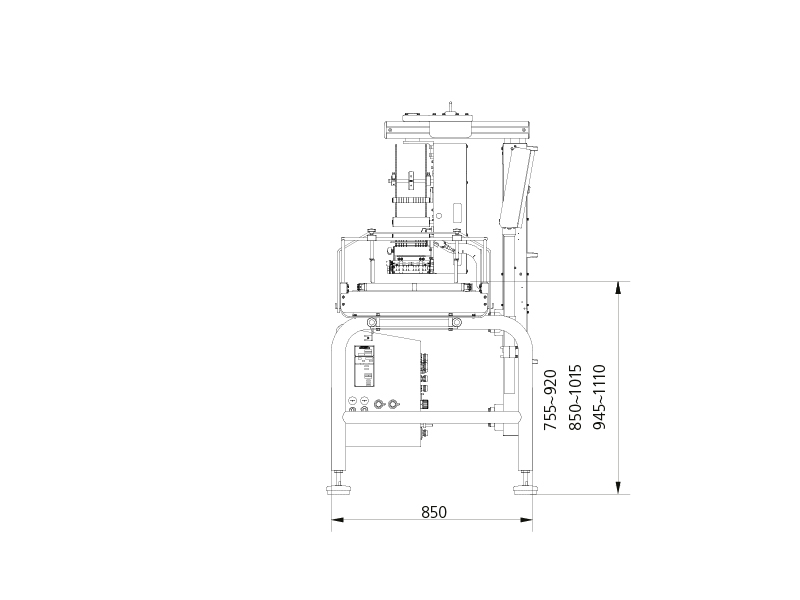

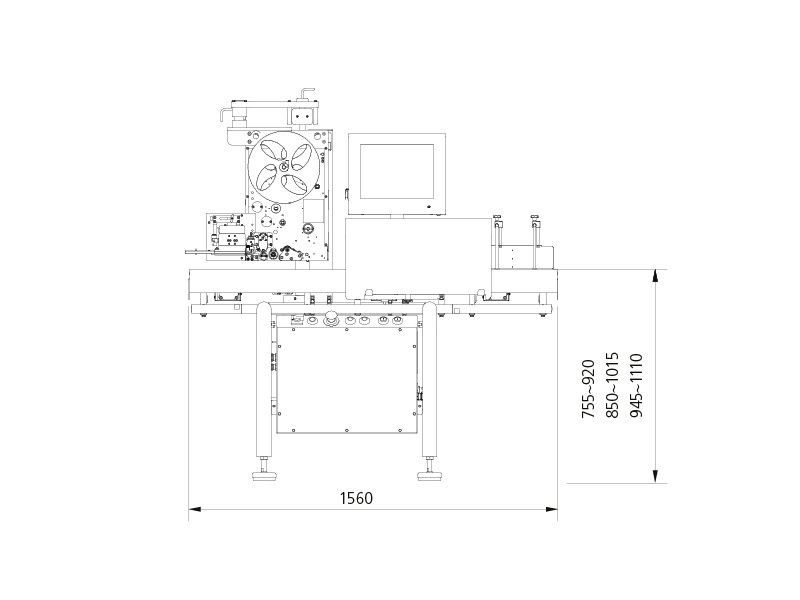

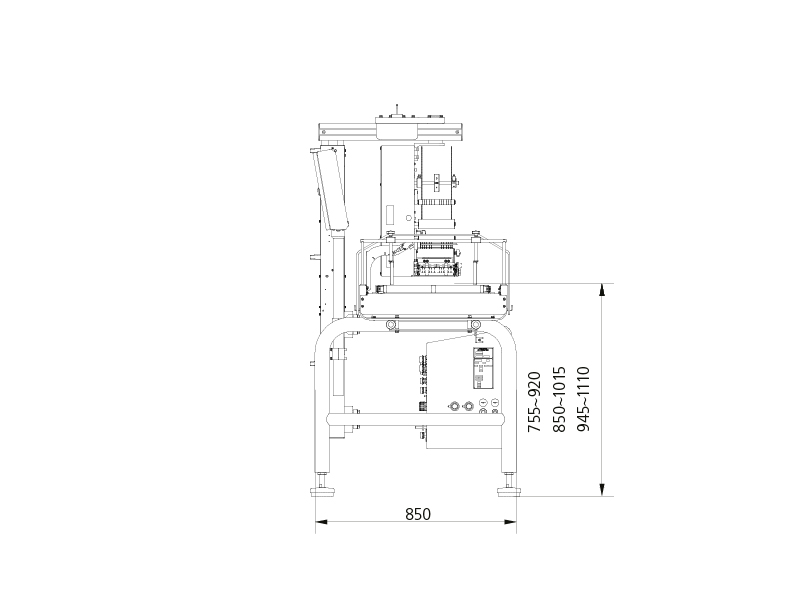

Afmetingen
Weighing
Capacity | Max 6 kg (or greater) | Max 12kg (or greater) | ||||
---|---|---|---|---|---|---|
Single Interval | e= 1g | e= 2g | ||||
Pack Speed | up to 80 packs per minute | |||||
Pack Size | L80-300mm x W40-400mm x H180mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
---|---|
Labelers | Multiple labelers/printers |
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Length | 400mm |
---|---|
Scale Cover | 'lift-off' formed polycarbonate |
Sensors | Overhead retro reflective |
Labellers | Signature |
Pack Guides | S100 tall guides |
Conveyors | Split blue belts |
