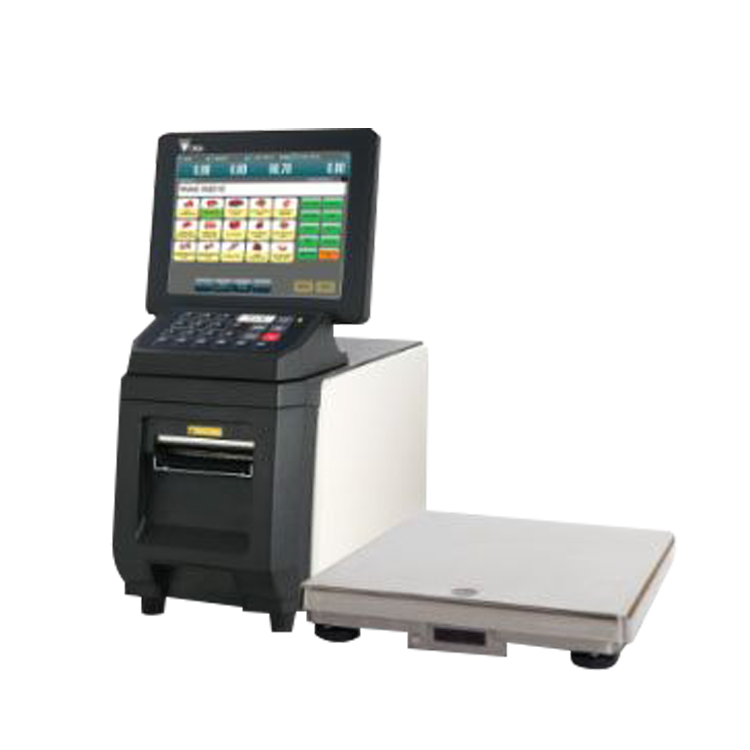

Versatile prepack scale designed for small work spaces
DPS-5000e
RetailBelangrijkste kenmerken
The DPS-5000e PC based compact printer offers a versatile printing solution with a space-saving design. With a high speed performance printer, it alleviates prepacking operation to achieve high efficiency without compromising floor space.

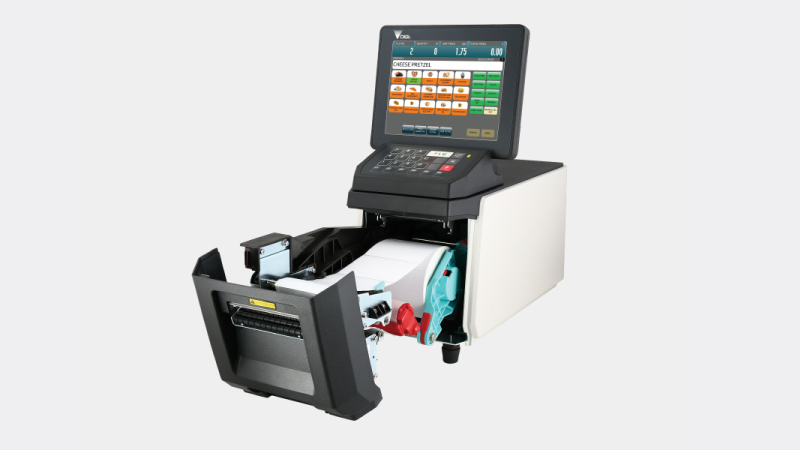

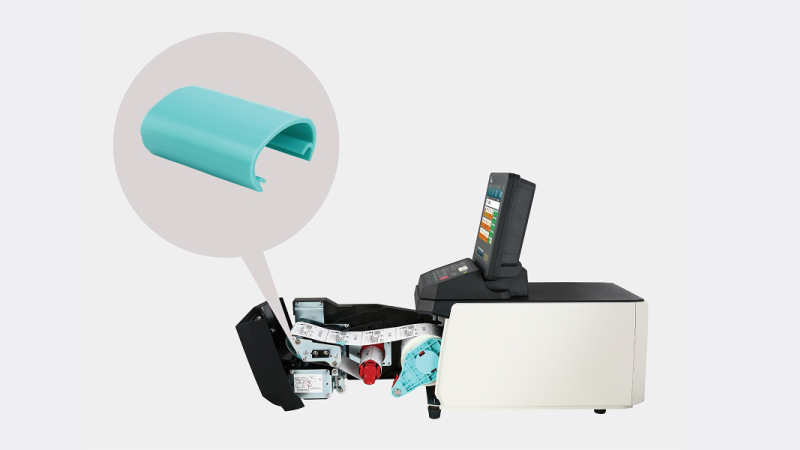

Front Label Loading
The loading mechanism of the DPS-5000 is designed at the front to cater for easier and faster label change. This feature greatly bolsters operation efficiency during the prepacking process.

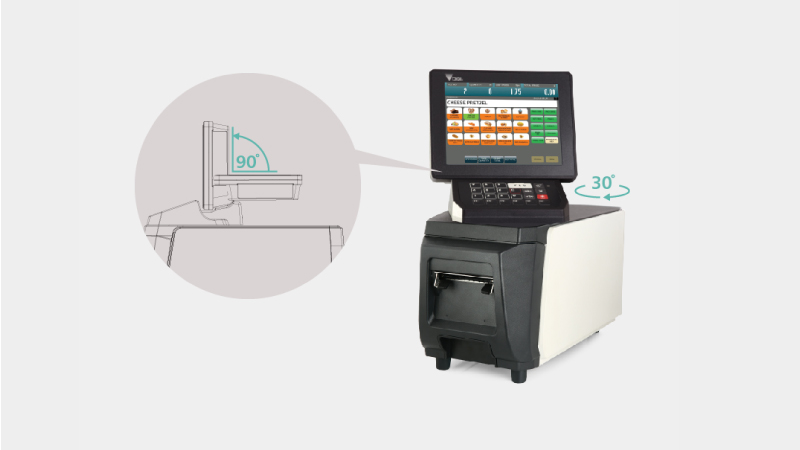

Flexible Operator Display
The 8.4" TFT touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.
Fast and Efficient Printing
Built for both speed and performance, DPS-5000e delivers high-resolution 300dpi printing with a crisp and appealing presentation for high readability.

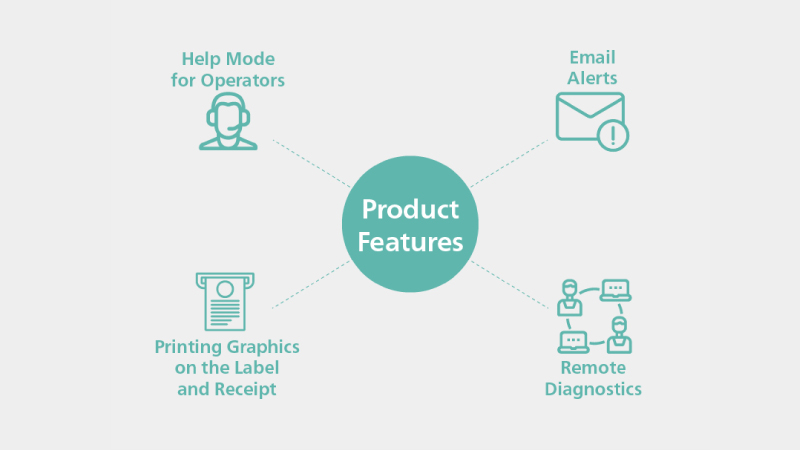

Other Features
The DPS-5000e also includes notable features like remote diagnostics, email alerts, printing graphics on the label and receipt, and help mode for operators.

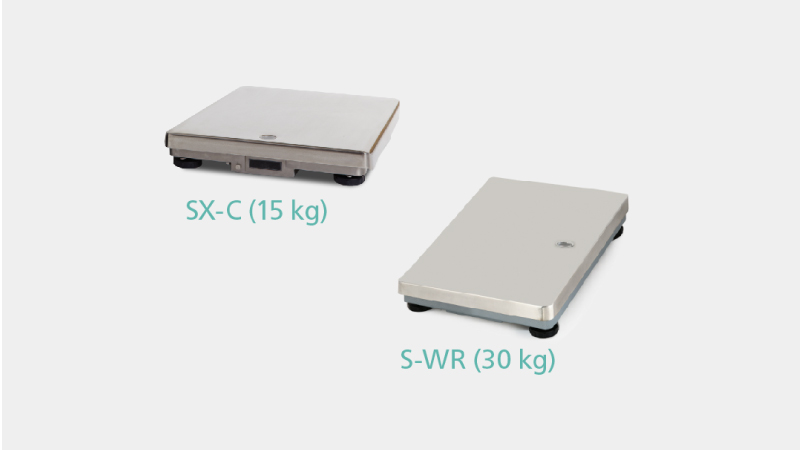

External Platform

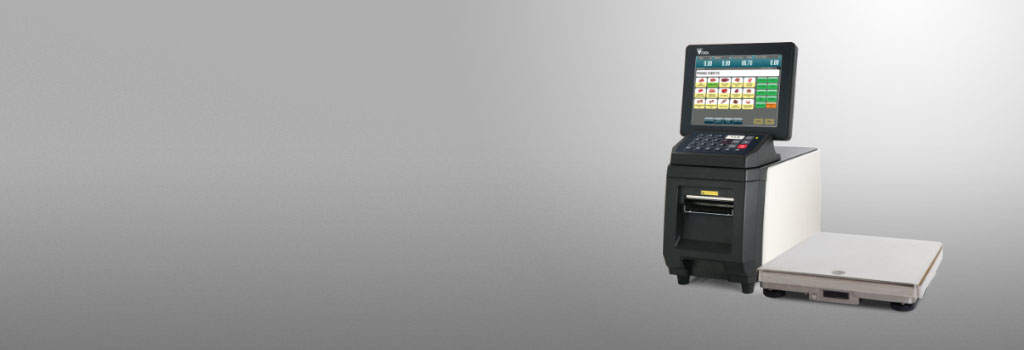

The DPS-5000e can also be linked up with an external SX-C and S-WR platform for operations that require high precision weighing capability.

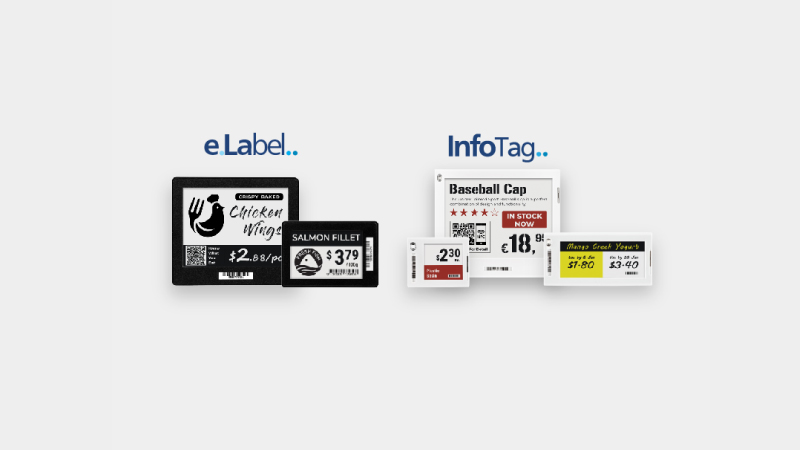

Electronic Shelf Label (ESL)
DIGI's enterprise-grade electronic shelf label (ESL) is developed to accelerate in-store digitisation with its error-free wireless price updates.
• Integrated QR code and Near Field Communication (NFC) capabilities
• Seamless integration with scale via USB base station for automatic price synchronisation
Specificaties
Afmetingen
Specification
| Capacity | Max 15kg/ 30lb | Max 30kg | |
|---|---|---|---|
| Single Interval | 1/ 3,000 | e= 5g/ 0.01lb | e= 10g |
| 1/ 6,000 | - | e= 5g | |
| 1/ 7,500 | e= 2g | - | |
| Capacity | Max 6kg/ 15kg | Max 15kg/ 30kg | |
| Multi Interval | 1/ 3,000 | e= 2/ 5g | e= 5/ 10g |
| Model | DPS-5000e | ||||
|---|---|---|---|---|---|

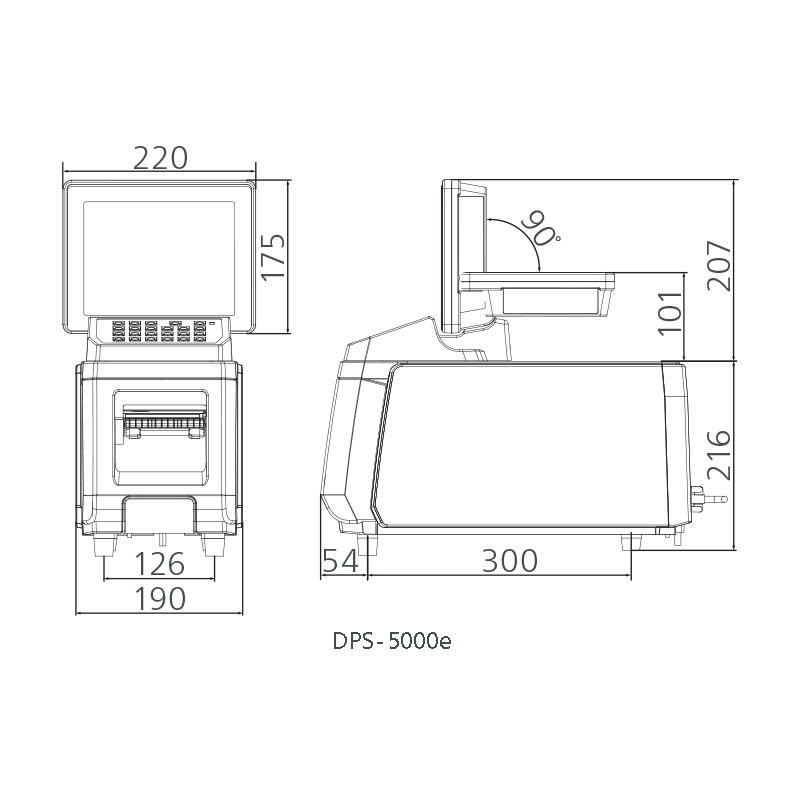

| Dimension W x D x H (mm) | DPS-5000e | 220 x 423 x 423 | |||

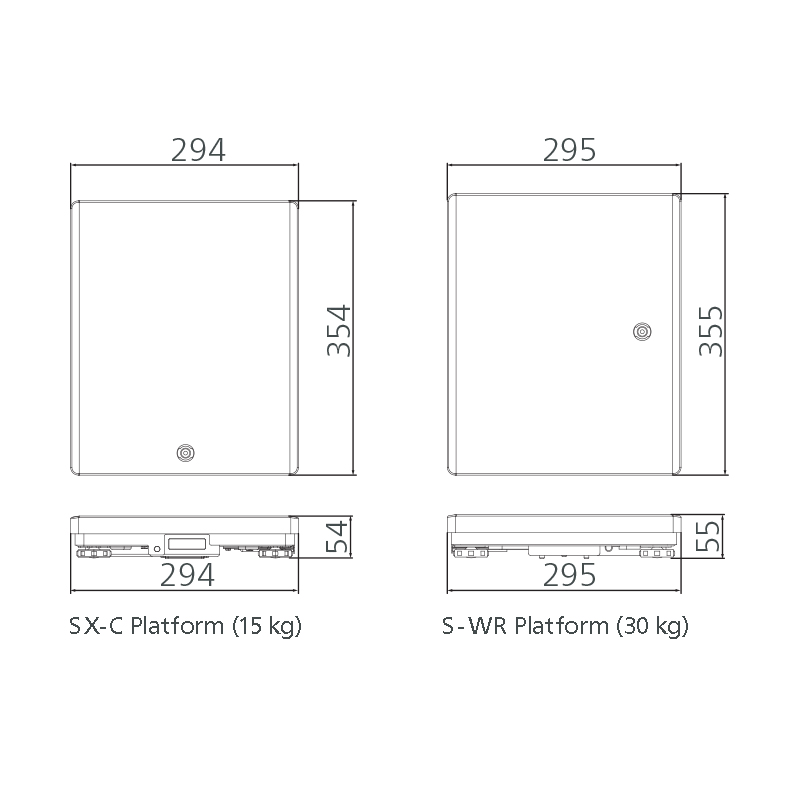

| Platform | SX-C (15kg): 294 x 354 x 54 | S-WR (30kg): 295 x 355 x 55 | |||

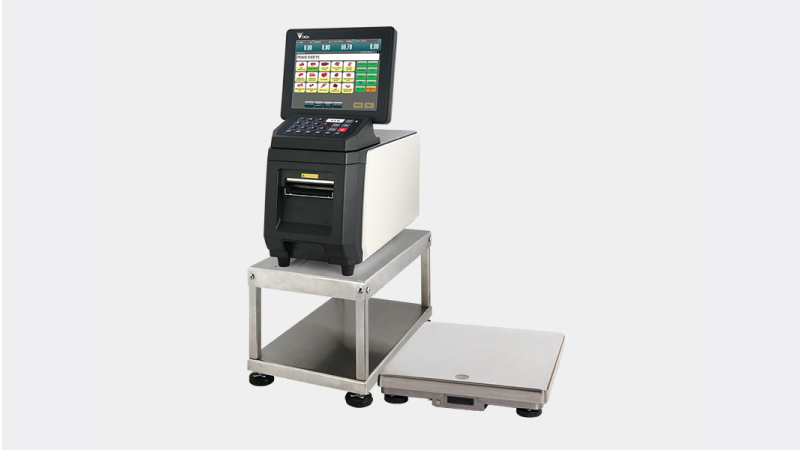

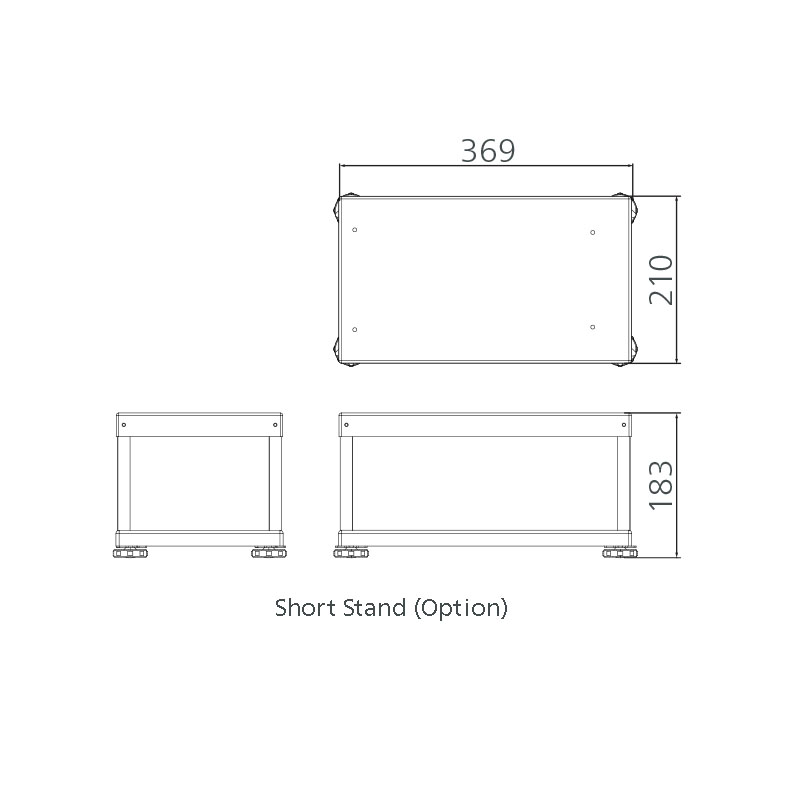

| Short Stand (Option) | 210 x 369 x 183 | ||||
| Operation Display | 8.4" TFT SVGA with Touch Panel | ||||
| Display Size W x D (Pixels) | 800 x 600 | ||||
| Display Rotatable Degree | + / - 30 degree left and right ; 90 degree up and down | ||||
| Label / Receipt | Types | Liner | Linerless with Auto-Cutter | ||
| Roll Diameter | Max 125mm | Max 125mm | |||
| Roll Width | Max 80mm | Max 80mm | |||
| Print Width | Max 80mm | Max 80mm | |||
| Printing Speed | Max 150mm / second* | Max 150mm / second* | |||
| Print Resolution | 300 dpi | 300 dpi | |||
| Barcode Type | Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix | ||||
| Power Source | AC 100V / 220V | ||||
| Power Consumption | 80W | ||||
| Operating Temperature | -10℃ to +40℃ | ||||
| Humidity | 15% to 85% RH Non-Condensation | ||||
| Standard Interface | 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket | ||||
| Net Weight | DPS-5000e | 11.2 kg | |||
| Platform | SX-C: 6.65 kg | S-WR: 4.5 kg | |||
| Short Stand (Option) | 3.4 kg | ||||
Opties

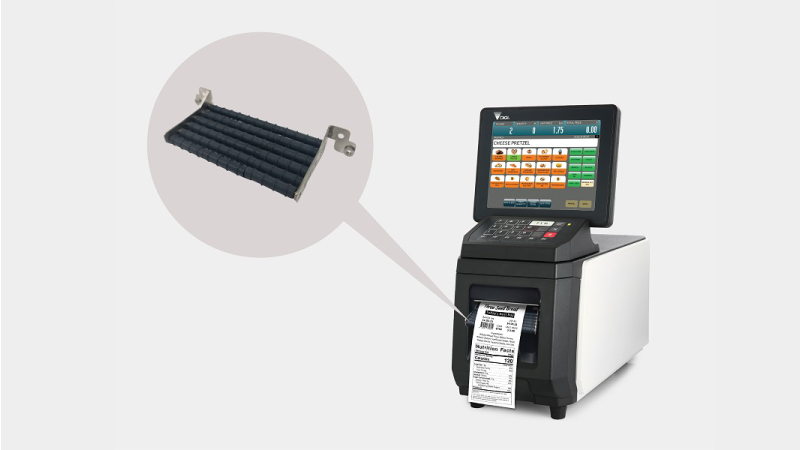

Internal Rewinder Kit
Long Label Holder
