Nota: Dit product wordt niet meer verkocht en wordt mogelijk niet ondersteund. Neem contact op met uw lokale contactpersoon met betrekking tot het onderhoud van dit model of vervangende modellen.

The customer and checkout staff work together to make checkout speedy. Staff don't handle cash, making checkout more hygienic and eliminating cashier errors.

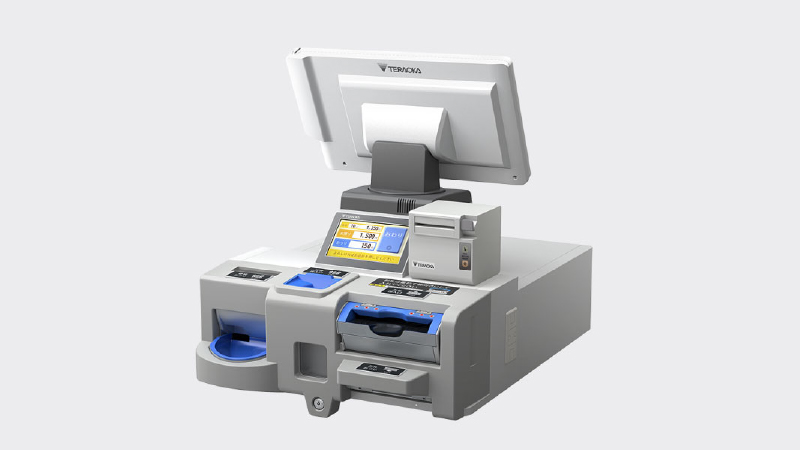

WebSpeezaSL-T / WebSpeezaSL-K

Retail

Belangrijkste kenmerken

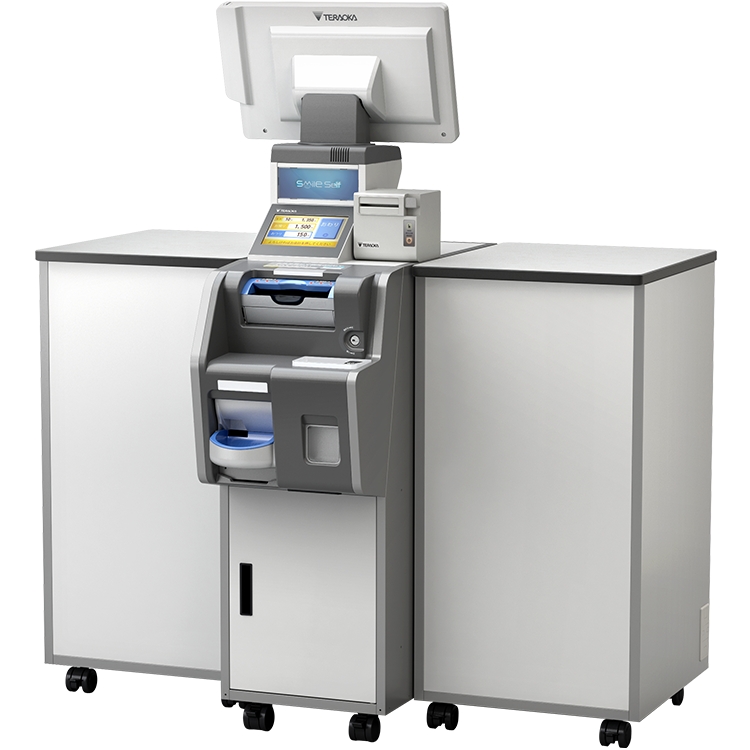

Teraoka's Smile Self Checkout System is a self-payment checkout register where staff scan and bag the purchased items while the customer takes care of the payment. So, the customer and checkout staff work together to make checkout speedy. Three models are available, letting you choose the perfect match for your sales environment and store space: Specialty Shop model, Mini-supermarket model, and Countertop model.

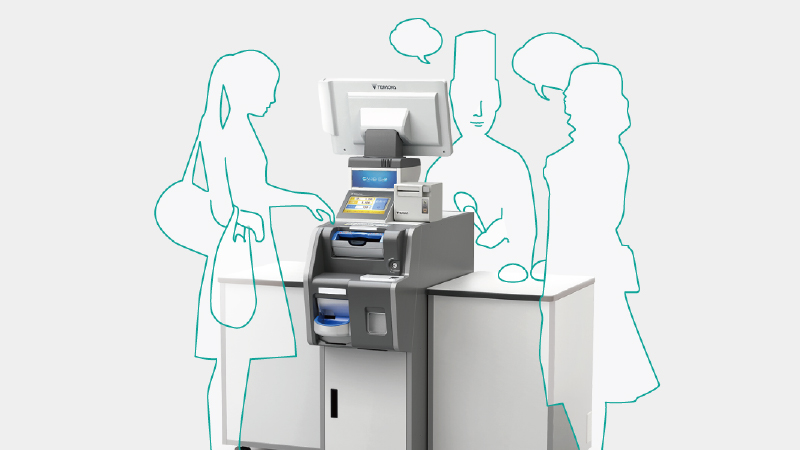

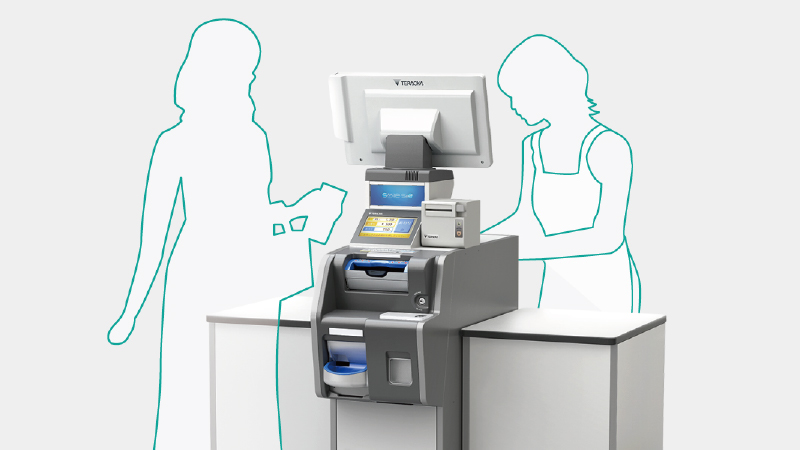

Customers and staff work together for speedy checkout

With Smile Self, staff scan and bag while the customer makes the payment, which streamlines the checkout process and shortens checkout waiting time. Customers can insert cash at any time while the staff are bagging or boxing the items. And Smile Self's voice guidance feature makes operation simple and easy, even for first-time users.

Eliminates cashier errors and gives checkout a cleaner image

Because customers make the payment themselves, staff do not need to handle cash. This eliminates cashier errors, such as wrong price input, bill miscounting, and wrong change amounts. In addition, because staff do not directly touch the money, checkout is more hygienic. This adds to the store's clean image and gives peace of mind to customers, particularly in stores that carry food items.

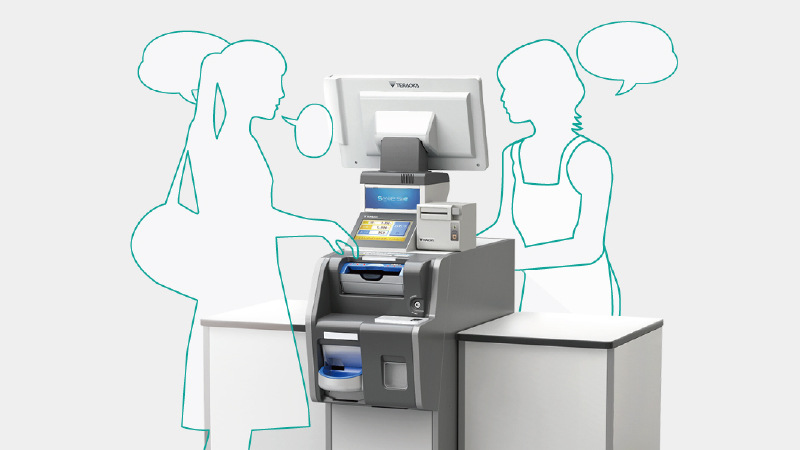

Next-customer item scanning increases checkout efficiency

Checkout staff can start scanning items for the next customer in line while the current customer is paying. This increases overall checkout efficiency and makes for a smoother checkout process for staff.

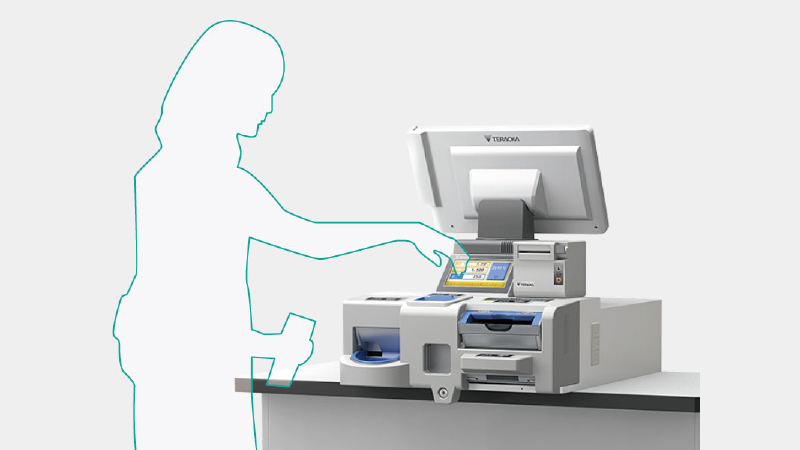

Simple operation makes serving customers easier, for a better shopping experience

Smile Self relieves checkout personnel of the most stressful part of their job -- handling the customer's cash.
System operation is simple: scanning product barcodes and making selections on the touch panel. This significantly shortens training time and reduces stress for checkout staff.
And this gives staff the leeway to focus more on customer service -- communicating with customers and improving the shopping experience.

Specificaties

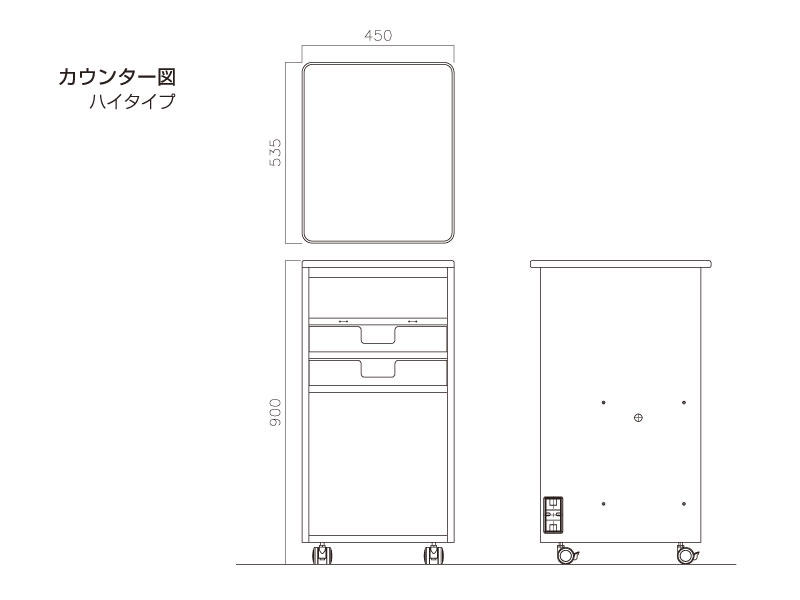

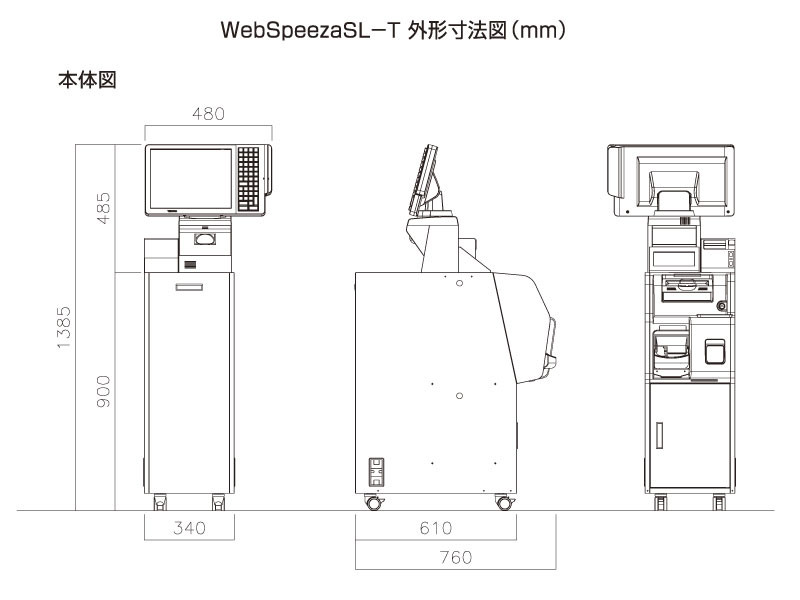

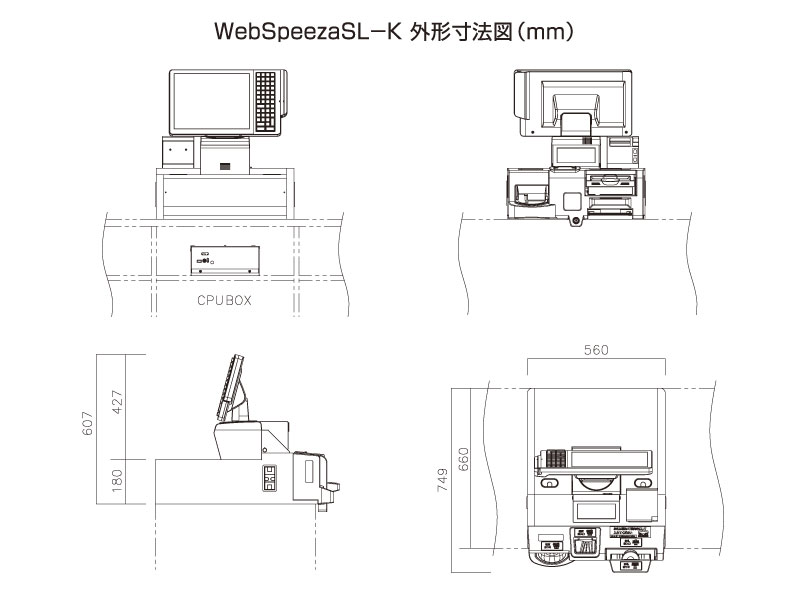

Afmetingen

		WebSpeezaSL-T	WebSpeezaSL-K
Motherboard	OS	Linux	Linux
	CPU	64 bit quad core processor	64 bit quad core processor
	Memory	2GB	2GB
	Main memory	SSD 32GB	SSD 32GB
Oparator display	Touch panel	15.0 inches TFT coler XGA	15.0 inches TFT coler XGA
Customer display	Touch panel	7.0 inches TFT coler WVGA	7.0 inches TFT coler WVGA
Keyboard	Mechanical key	52 keys (Dust control/Drip-proof type)	52 keys (Dust control/Drip-proof type)
Printer	Type	Thermal printer	Thermal printer
	Print speed	Max 200mm/sec	Max 200mm/sec
	Print width	58mm	58mm
	Receipt unit	Drop in system	Drop in system
Interface	USB2.0	Back side ×6 (3 space) Front side ×1	Back side ×6 (3 space) Front side ×1
	LAN	1000/100/10BASE-TX×1	1000/100/10BASE-TX×1
	Serial port	RS-232C×5（4 space）	RS-232C×5（4 space）
	Scaner port	RS-232C×1	RS-232C×1
	Drawer	24V×1 (6 pin drawer)	24V×1 (6 pin drawer)
Power Supply	Main	ATX AC100V 50/60Hz	ATX AC100V 50/60Hz
Power Supply	UPS	Internal×2 (for blackout shut down)	Internal×2 (for blackout shut down)

Variaties

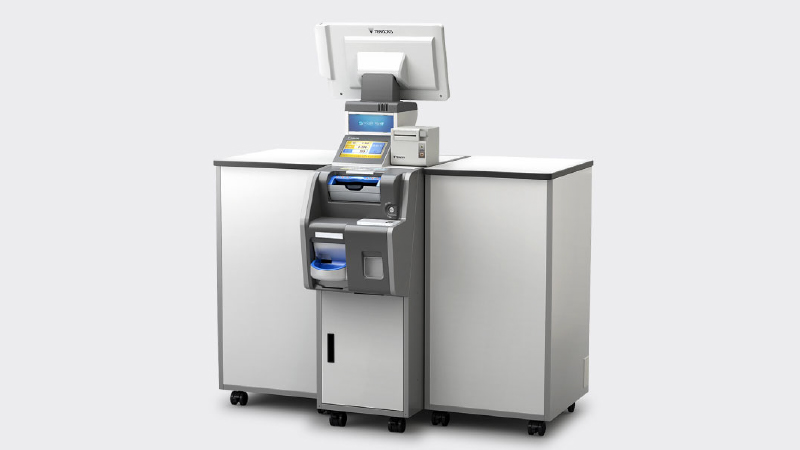

WebSpeezaSL-T Specialty Shop Model

WebSpeezaSL-T ＋ Tall Counter

Combines WebSpeezaT with a tall counter to make bagging and boxing easier.
Also ideal for bakery checkout.

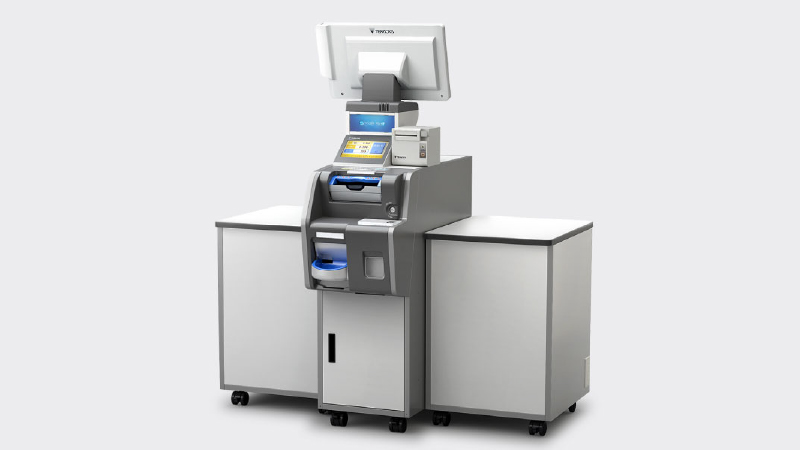

WebSpeezaSL-T Mini-supermarket Model

WebSpeezaSL-T + Low Counter

Combines WebSpeezaT with a low counter that's just the right height for setting down a shopping basket.
Ideal for stores with limited floor space, such as small-scale supermarkets and mini-supermarkets.
