Belangrijkste kenmerken
High speed direct thermal printing with user-friendly features.
- Highly-visible 19-segment green LCD display
- Automatic date & time update with a built-in clock
Specificaties
Afmetingen
Weighing
| Capacity | 3/6kg | 6/15kg | 15/30kg |
|---|---|---|---|
| Multi Interval | e=1/2g | e=2/5g | e=5/10g |
Display
| Operator Display | 19-segment LCD with green backlight |
|---|
Operation and General Specification
| SM-100B | SM-100P | SM-100H | SM-100EV | |
| Number of Preset Keys | 40 | 40 | 76 | 74 |
| Memory Capacity | 1MB | |||
| Standard Interface | Cash Drawer, RS-232C, Ethernet | |||
Labeling
| Label Printing Size | Max W: 60 x L: 220 mm |
|---|---|
| Paper Width | Max 60mm |
| Printing Speed | 80mm/sec for label, 105mm/sec for receipt |
Options
| Memory Expansion Board (2MB) |
| Wireless LAN (IEEE 802.11b) |
Variaties

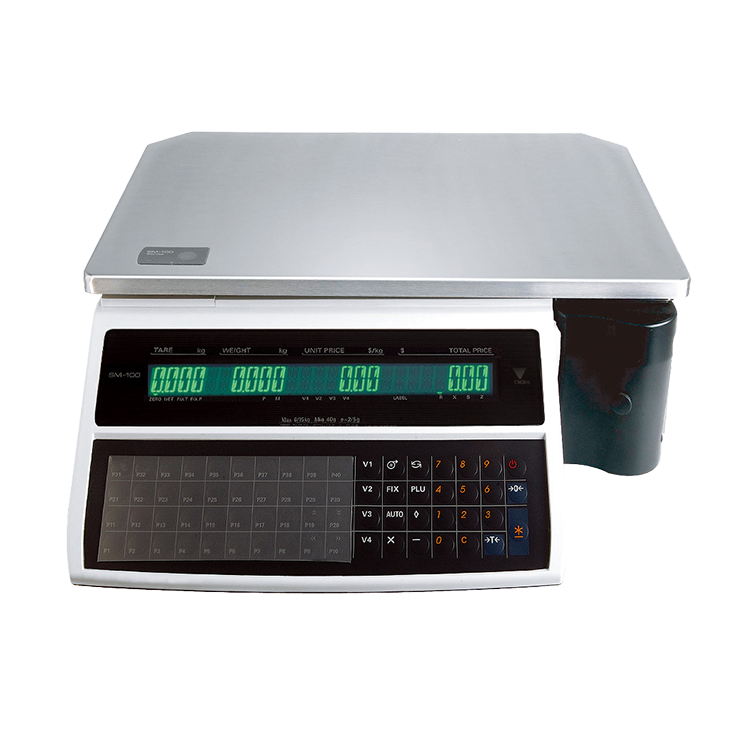

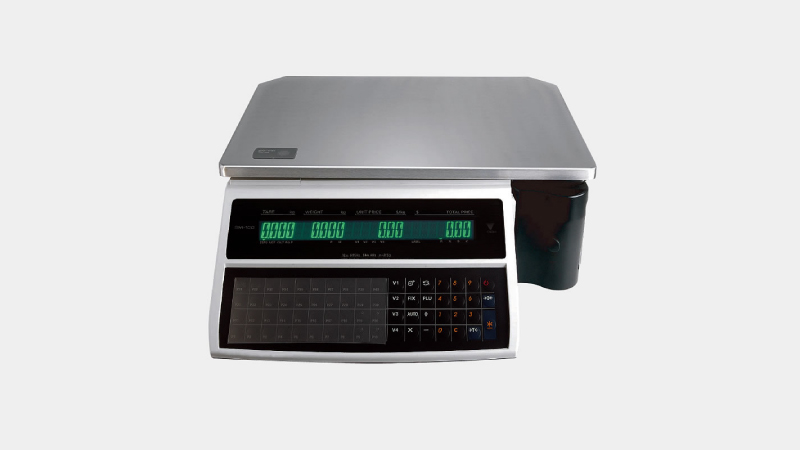

Bench Type
SM-100B

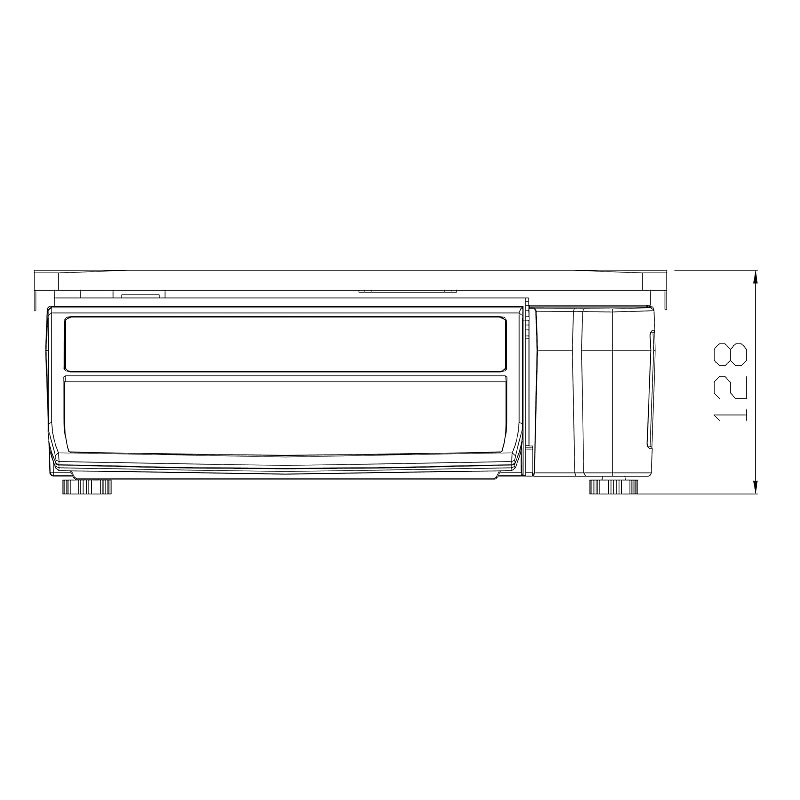

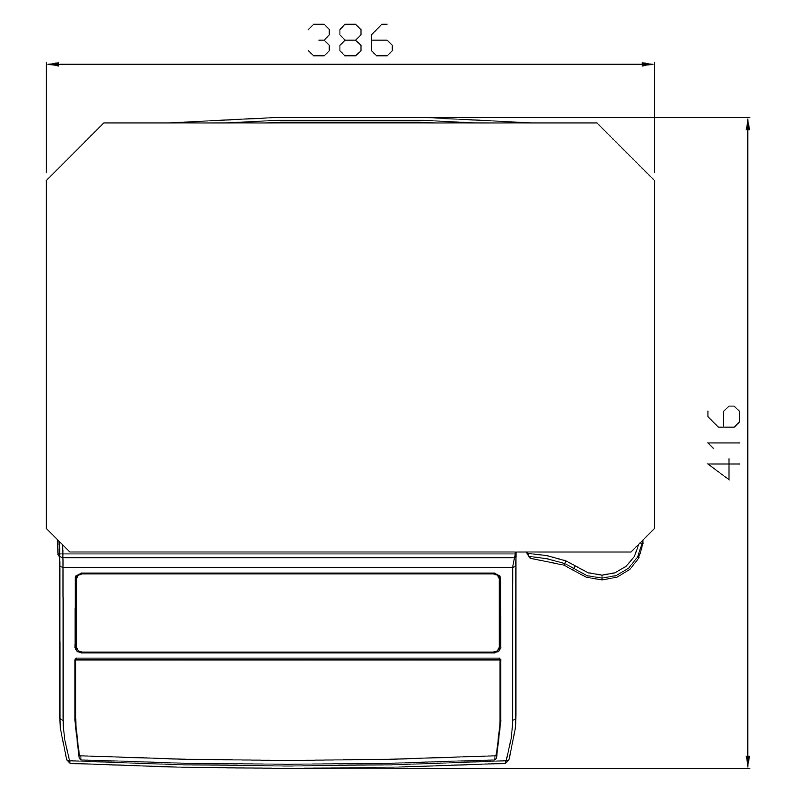

Dimensions (mm) W: 386 x D: 416 x H: 128

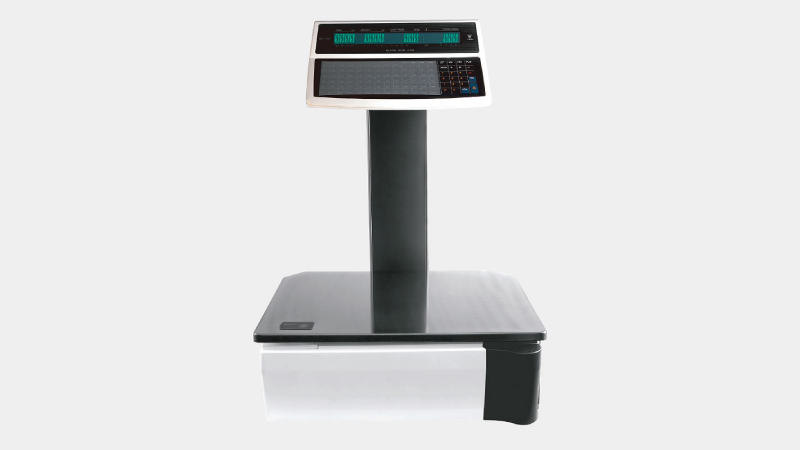

Pole Type
SM-100P
Dimensions (mm) W: 385 x D: 478 x H: 485

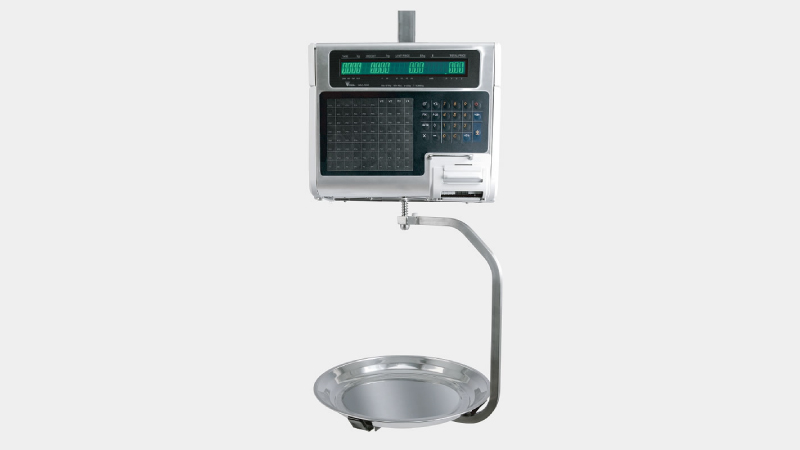

Hanging Type
SM-100H
Dimensions (mm): W: 340 x D: 310 x H: 860

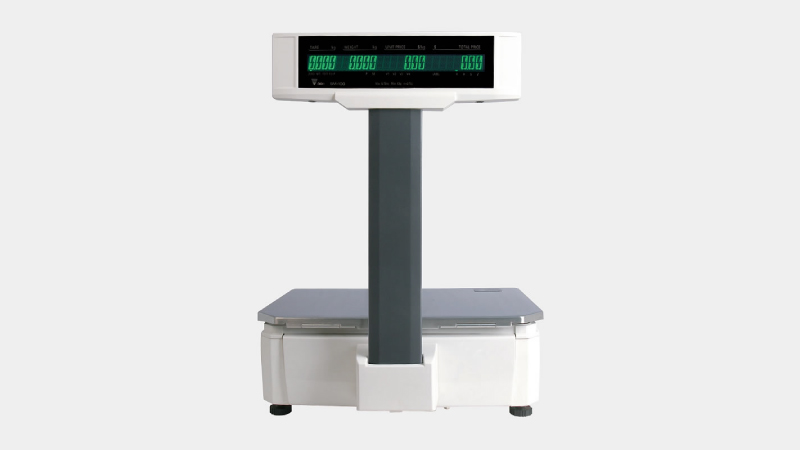

Elevated Type
SM-100EV
Dimension (mm): W: 386 x D: 416 x H: 550
