Faster Picking, Fewer Errors, Smarter Workflows

AI Picking Carts

Logistiek

Order Picking & Sorteersystemen

Belangrijkste kenmerken

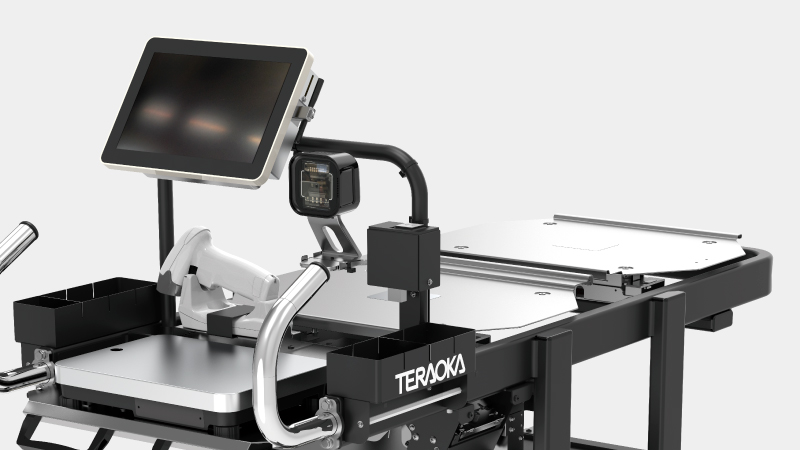

The PKG Series Picking Cart streamlines piece-picking operations with an integrated weighing system that verifies item weight and scans barcodes simultaneously, ensuring accuracy and reducing errors. Its capability to process up to 8 orders simultaneously further enhances efficiency, making it ideal for high-volume operations.
An on-board printer eliminates shipping instructions and paperwork, enabling a paperless workflow and reducing costs. Wireless integration with IT-Matex III optimizes routes and verifies quantities in real time.
Lightweight, compact, and easy to maneuver, the PKG Series is ideal for high-order volumes, small-batch picking, and narrow aisle enviroment, offering efficiency without compromise.

Error-Free Picking

Our system ensures accurate quantity checks with a high-precision load cell and reduces errors in unit weight.

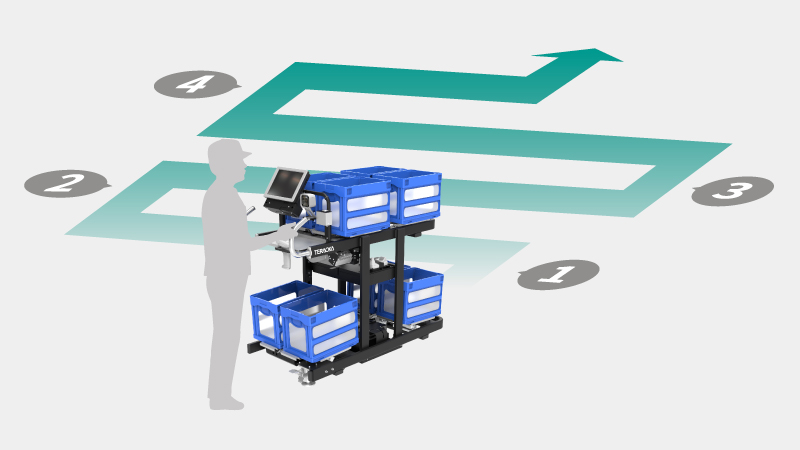

Enhanced Algorithms

Smart picking algorithms, supported by on-site surveys and simulations, optimize routes to save time and avoid congestion. This solution improves efficiency and keeps your operations running smoothly.

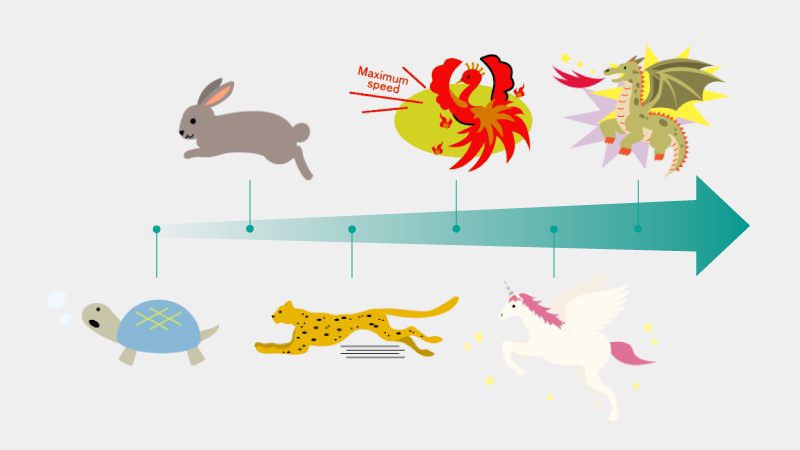

Motivation-Boosting Display

Animated characters change based on picking performance, adding an engaging element to boost productivity.

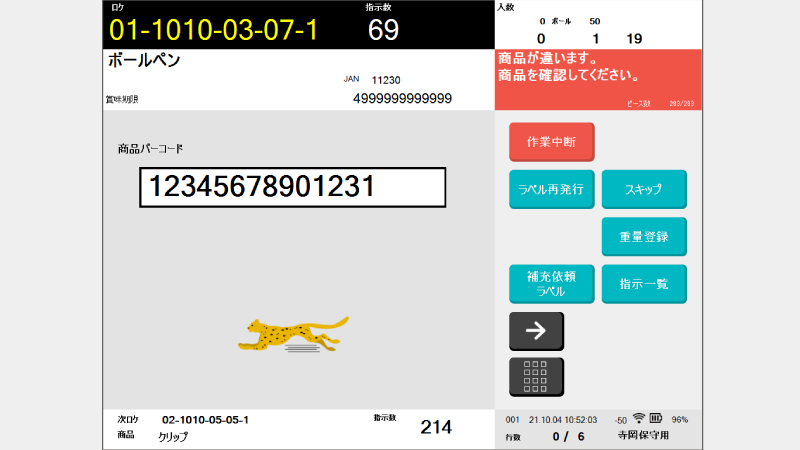

User-Centric Design

Displays product images and custom messages for effortless operation, even for first-time workers, while its design ensures smooth navigation in narrow spaces, making it suitable for workers of all ages and physical capabilities.

Specificaties

Afmetingen

Product	Model	PKGM-4800	PKGM-4400	PKGM-4400F	PKGN-3300	PKGM-2100	PKGM-3100	PKGC-4500
Product	Type	Multi-cart (Vertical type)	Multi-cart (Vertical type)	Multi-cart (Front-on type)	Multi-cart (Vertical type)	Single cart (Detachable type)	Single cart	Built-in lightweight scales
Display		10.4-inch TFT LCD			10.1-inch TFT LCD	10.4-inch TFT LCD		10.1-inch TFT LCD
Wireless communication	Wireless LAN	IEEE 802.11a/b/g/n/ac
Scanner		UPCA, UPCE, EAN/JAN 8, EAN/JAN13, CODE39, CODE128, ITF2of5
Printer	Print Method	Thermal Printing
Printer	Print Size	80 (W) x 115 (L) mm
Weighting Section (Loading)	Maximum load weight	6kg/15kg	30kg
	Minimum increment	1g
	Number of scales	8	4		3	1		4
Weighting Section (Lightweight)	Maximum load weight	-						2.5kg/5kg
	Minimum increment	-						0.2g/0.5g
	Number of scales	-						1
Power supply	Continuous operating time	14 hours or better (front-on type cart) * Varies according to manner used and environment.
	Type	Ni-MH (Nickel-Metal Hydride Battery)
	Charging time	10.5 hours
	Charging system	DIGI Chain charging (charges up to 5 units at once)			Magnetic Charging	DIGI Chain charging (charges up to 5 units at once)
Cart	Operating Temperature	5 to 35℃ during operation, 0 to 55℃ in storage
	Operating Humidity	20 to 85% RH (no condensation)
	Frame material	Aluminum
	Dimensions (mm) W x L x H	570×1,277×1,174		800×977x1,097	480×1,239×1,152	620×1,001×1,196	570×1,335×1,000	570×1,327×1,174
	Weight	64.5kg	50kg	55kg	50kg	45kg	47kg	57kg

Variaties

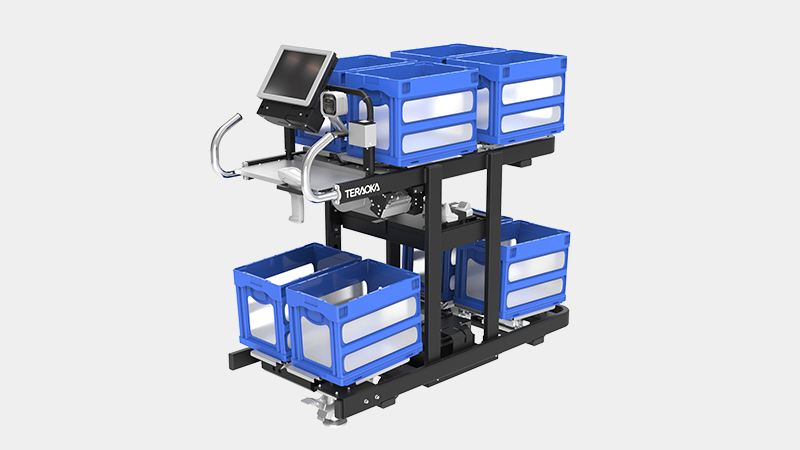

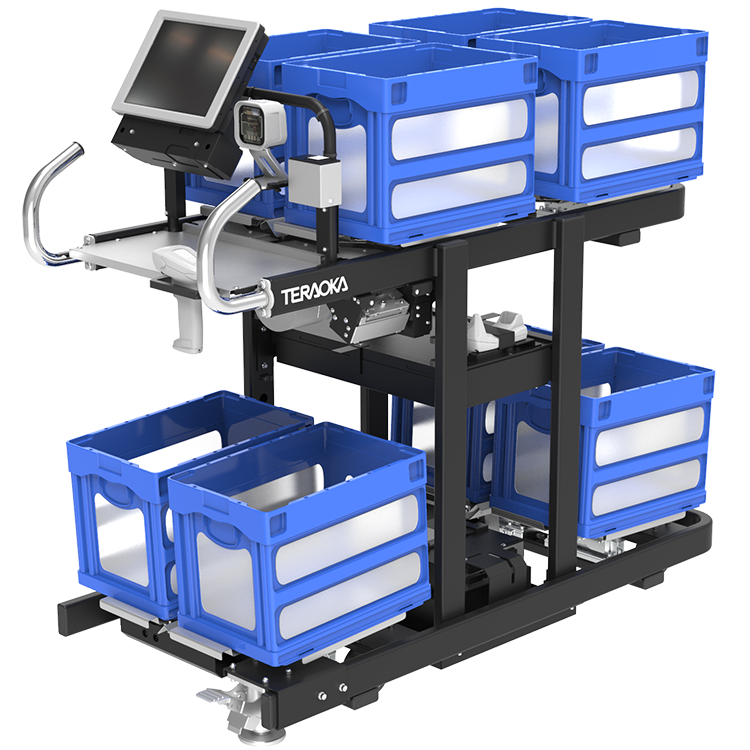

8-Multi Type (vertical type)

PKGM-4800

Compact and ideal for high-mix, low-volume orders. Suitable for narrow aisles (570mm width).

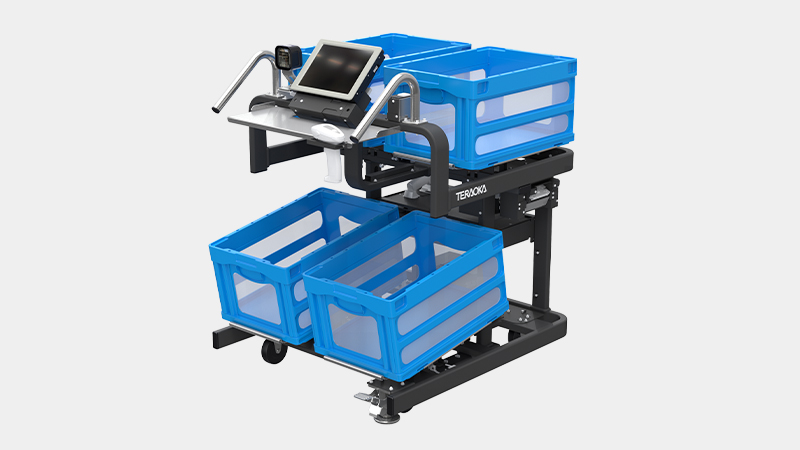

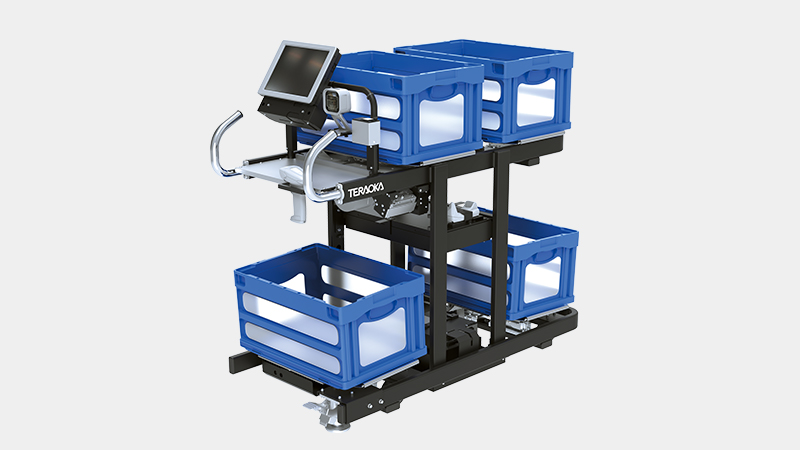

4-Multi Type (vertical type)

PKGM-4400

A versatile option for standard operations, optimized for various environments.

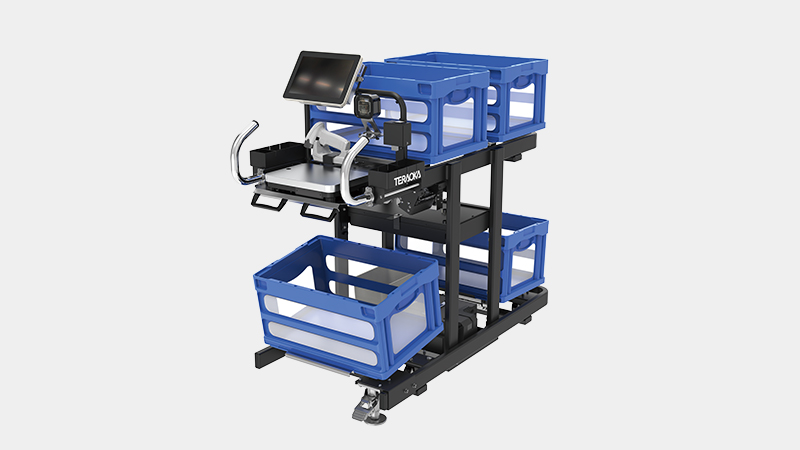

4-Multi Type (forward type)

PKGM-4400F

Prioritizes smooth item placement and superior ease of operation with a wider design.

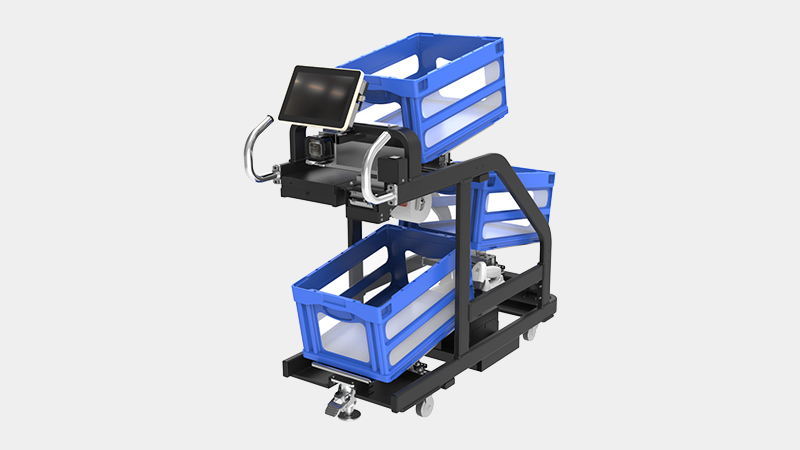

3-Multi Picking Cart (PKGM-3300)

PKGN-3300

A compact solution with a slim 480mm width, perfect for space-constrained environments.

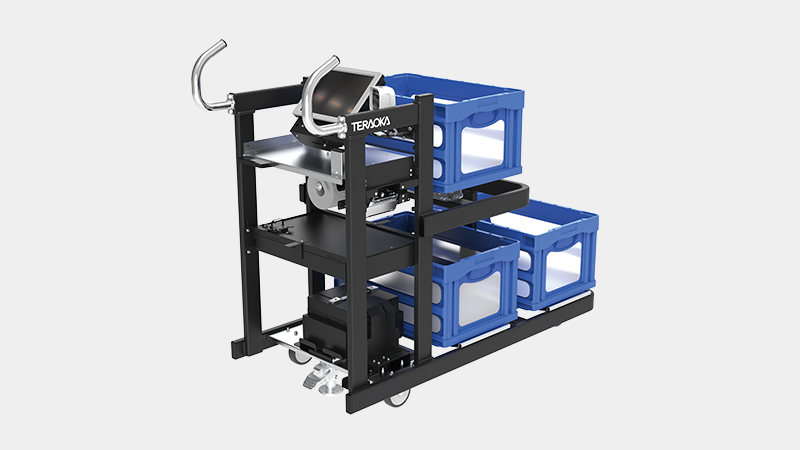

Single cart (Detachable)

PKGM-2100

Features a detachable dolly for streamlined single-order operations.

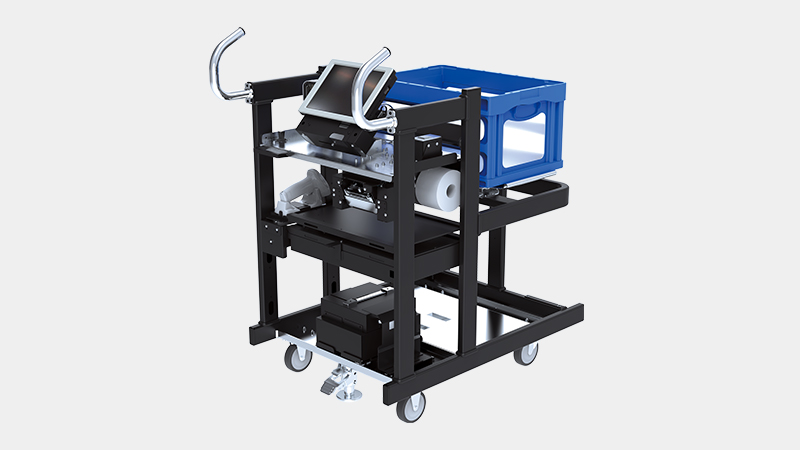

Single cart

PKGM-3100

Equipped for large-volume transport with replaceable storage boxes.

Counting cart

PKGC-4500

Maximize efficiency and minimize post-process inspection work by fully utilizing specialized scales for lightweight items to prevent quantity errors.

In de praktijk

AI Picking Cart - Picking Cart with Built-in Weigh Scale SPK - High-precision Dimensioning Weigh Scale

Tokyo Logistics Factory Co., Ltd.

The need for inspection and repacking of products before shipping was eliminated, dramatically improving work efficiency and increasing productivity.

Read Full Case Study

AI Picking Cart with Built-in Weigh Scale and SPK High-precision Dimensioning Weigh Scale

Keihin Distribution Co., Ltd.

Improved productivity by increasing picking accuracy through double inspection (scanning and weighing) and reducing post-picking inspection work when packaging.

Read Full Case Study

FAQ

Aside from eliminating storage for forms, what is the advantage of doing away with paper picking lists?

Time required to produce lists is eliminated, including printing. Errors in product type, packaging, and quantity that result from misreading lists are also reduced. Further, not having to hold a list leaves both hands free for picking.
How much time is needed for charging?

14hours or better (front-on type cart)
* Varies according to manner used and environment.
How does the PKG Series Picking Cart address high initial costs?

The PKG Series is ideal for small-scale implementations, allowing businesses to start with a minimal investment and scale up as needed, reducing financial risk compared to fixed automation systems.
Can the PKG Series handle fluctuating demand?

Yes, the cart's modular nature makes it easy to add more units during peak periods or scale down during slower times, ensuring flexibility and cost-effectiveness.
