Nota: Dit product wordt niet meer verkocht en wordt mogelijk niet ondersteund. Neem contact op met uw lokale contactpersoon met betrekking tot het onderhoud van dit model of vervangende modellen.
Powerful ally for blending process standardization
Indicator with full dust and water ingress protection
DI-2000Ⅱ
LogistiekBelangrijkste kenmerken

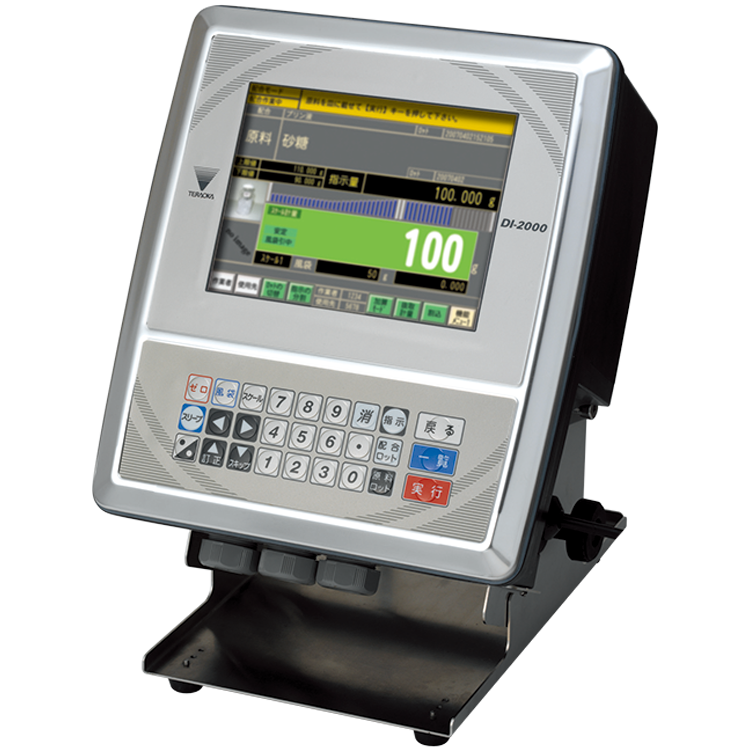

The DI-2000 II is a dust and waterproof indicator designed for weighing of blending ingredients at food and manufacturing facilities. It can be connected to up to 3 scales, allowing indication of a large range of weights with a single unit. During blending operations, workers follow displayed instructions interactively for all steps from ingredient verification to weighing, helping to prevent errors. Weighing history is automatically stored in indicator memory. Weighing systems incorporating the DI-2000 II help make great quality improvements, reduce work cost and help rationalize traceability of blended products.
Efficiency enhancement through networking
The DI-2000 II can exchange data with existing systems by USB memory or by LAN connection, enabling output of blending instruction entries and history data. When adopted together with the It-Matex III shipping/receiving/inventory management system, weighing histories and instruction data transferred can be used for dual purposes, such as printing labels and managing inventory. This dramatically increases work efficiency.
Specificaties

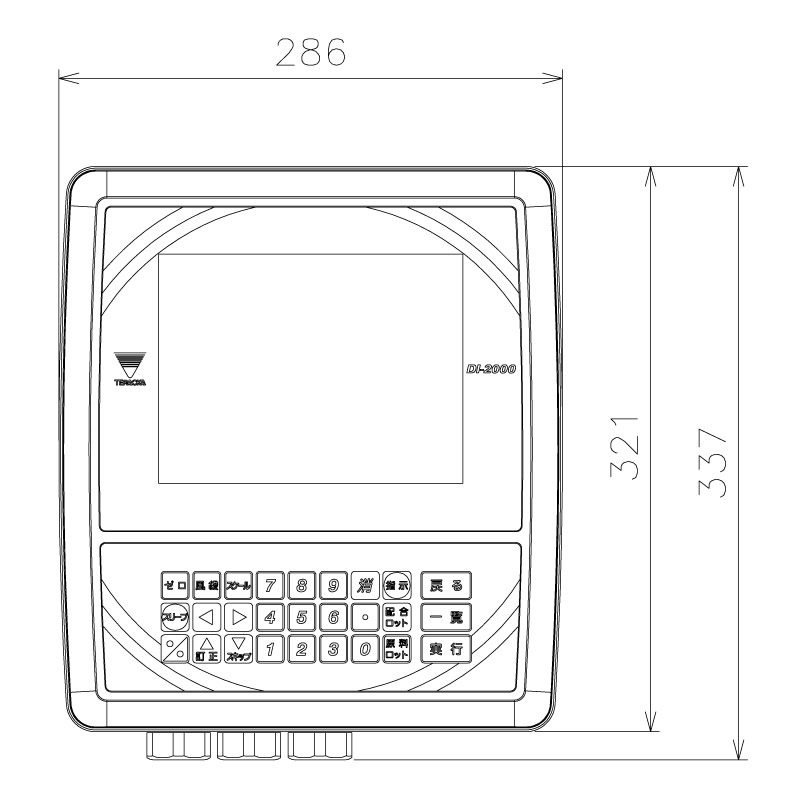

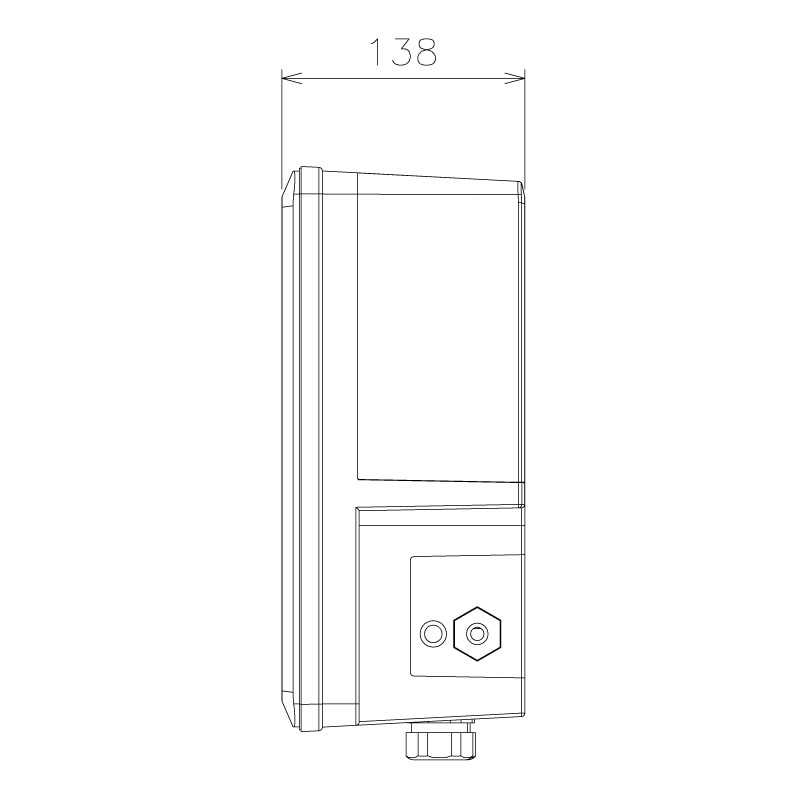

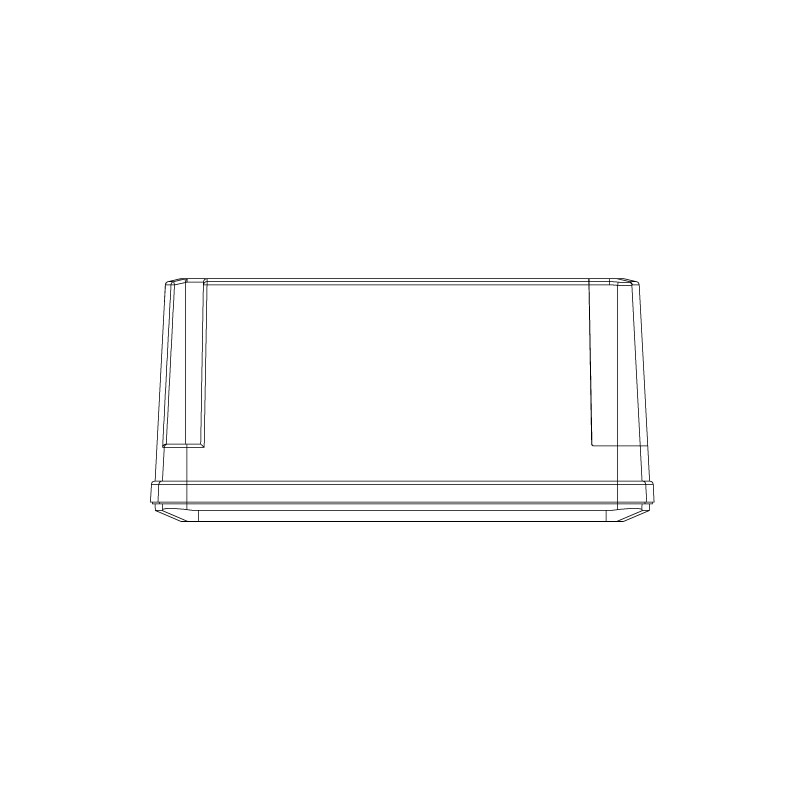

Afmetingen
Display resolution | Max. 1/20,000 |
---|---|
Internal resolution | 1/600,000 |
Scale connection | Max. 3 scales |
Display |
8.4-inch color LCD touch panel
VGA 480(H)x640(W) dots
|
Programmable items |
Ingredient: 10,000
Combination: 2,000
Recipe: 2,000 (max. 50 ingredients/recipe)
|
Input/ output signal | Open Collector OUT5 IN5 |
Power source | AC100V, 35W |
Service environment |
Temperature: 0 to 40 degrees C (no condensation)
Humidity: Under 80%(no condensation)
|
Weight | Approx. 5.5 kg (Approx. 7.7 kg with a stand) |
FAQ
-
Can blending data that has been prepared on a computer be sent to the DI-2000 II?Yes. Data prepared as a CSV file in the prescribed data format can be loaded onto the DI-2000 II via USB memory or LAN.
