dmd200_WP02_01

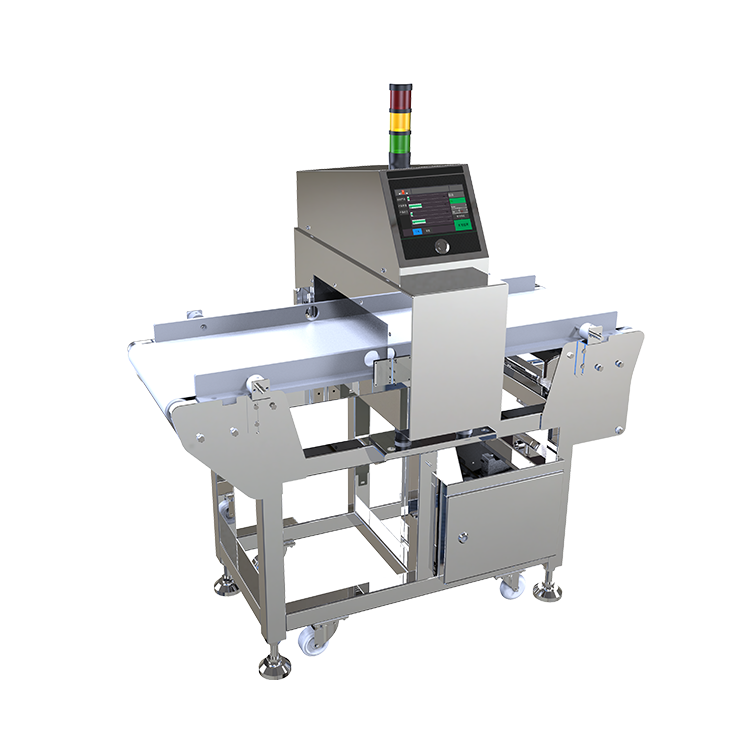

Digital Metal Detector

DMD-200

Industrie agroalimentaire

Présentation

The DMD-200 is designed to safeguard product integrity by preventing or detecting foreign objects within packages. Its advanced automatic phase adjustment effectively eliminates product interference, enhancing detection sensitivity across various packaging types.

dmd200_WP04_01

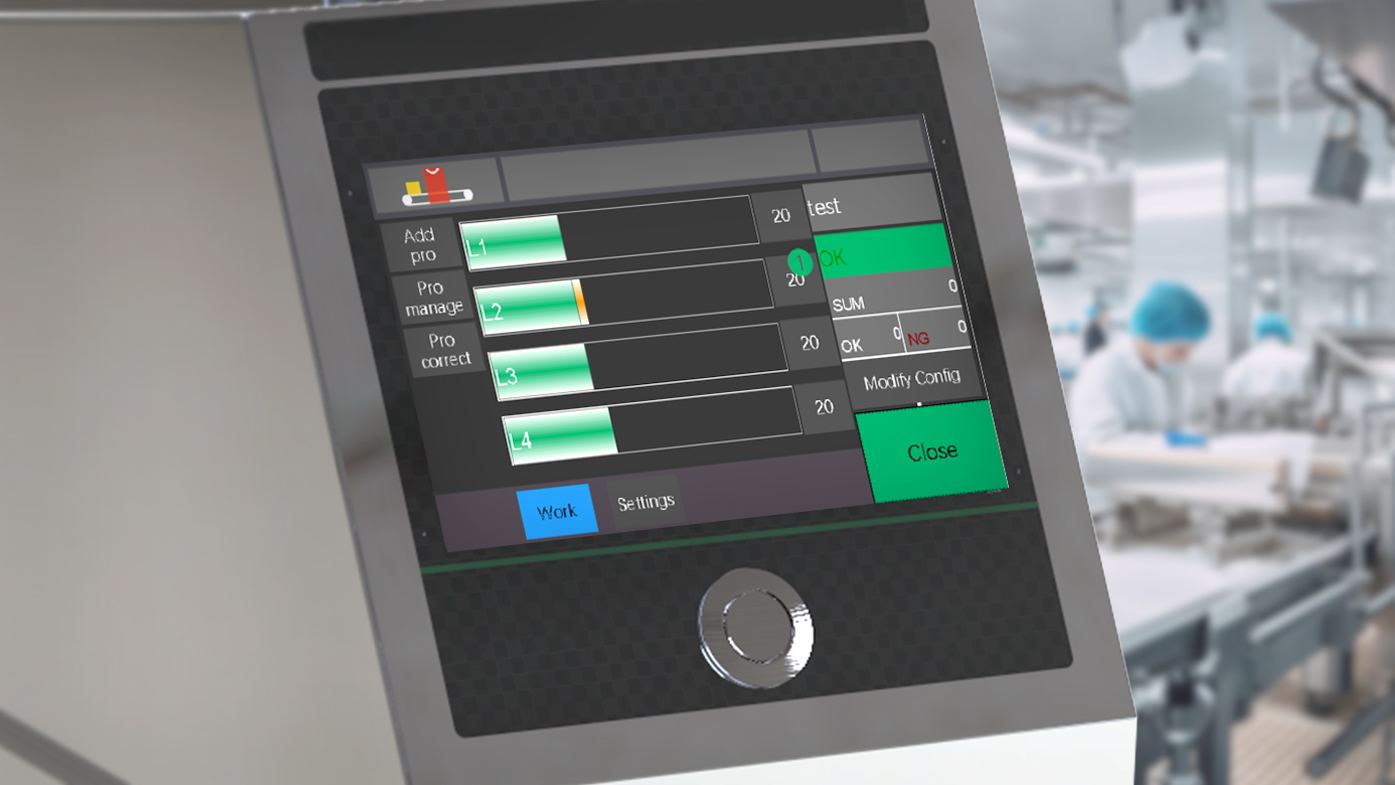

Enhanced detection with automatic phase adjustment

Automatic phase adjustment technology is adopted to effectively suppress product effects and achieve detection sensitivity. The multi-frequency technology is applied for all application requirements.

dmd200_WP04_02

5 Detection modes

Five built-in detection modes can detect dry, wet, high-wet, wet & salty, and aluminum film packaging items. With multi-frequency detection, ferrous, stainless steel, non-ferrous, and other metal foreign matter can be detected sensitively.

dmd200_WP04_03

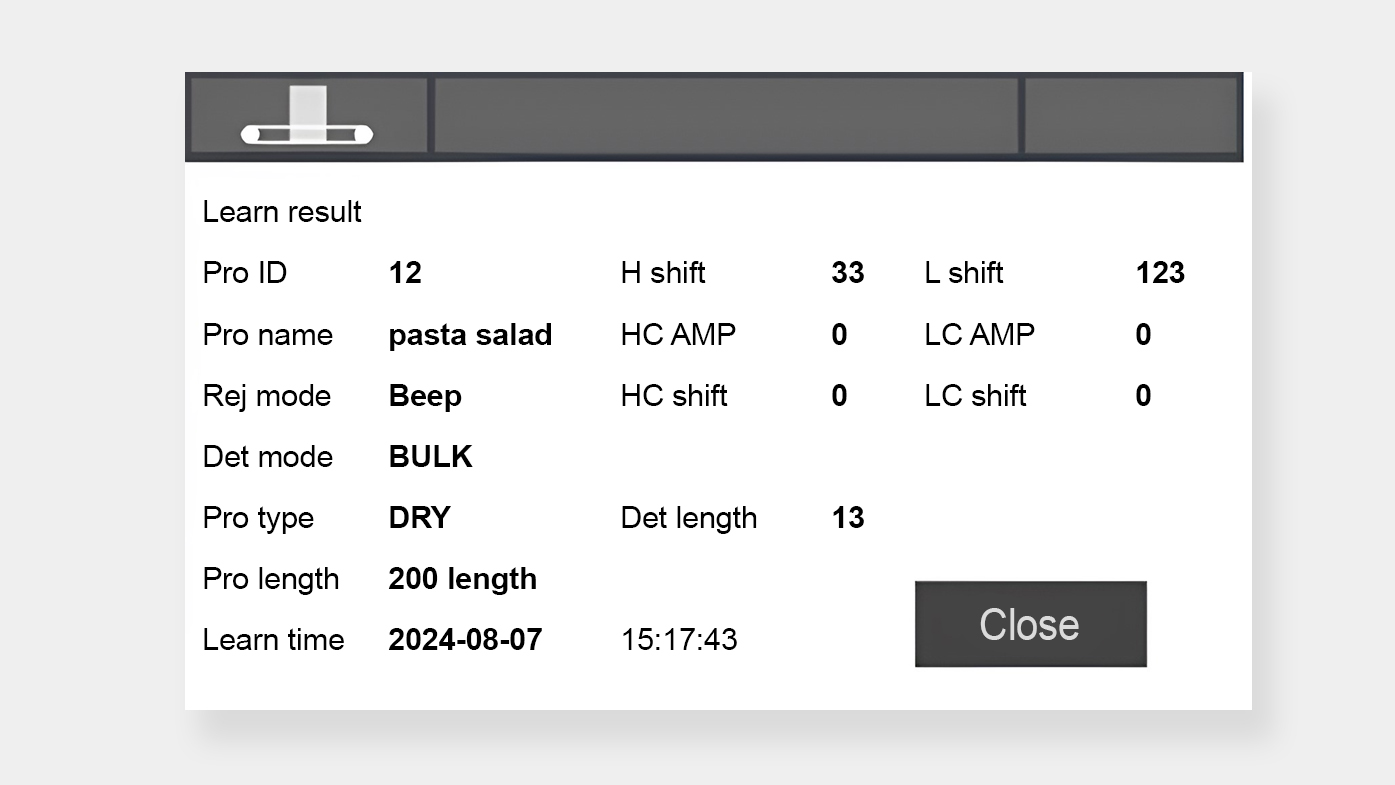

Easy to operate

With smart settings and automatic self-learning, new product setup can be done in just simple two steps.

dmd200_WP04_04

Durable and easy to clean

Waterproof construction with high IP rating and easy to clean. With one-touch replacement of the belts, maintenance is fast and simple.

Caractéristiques

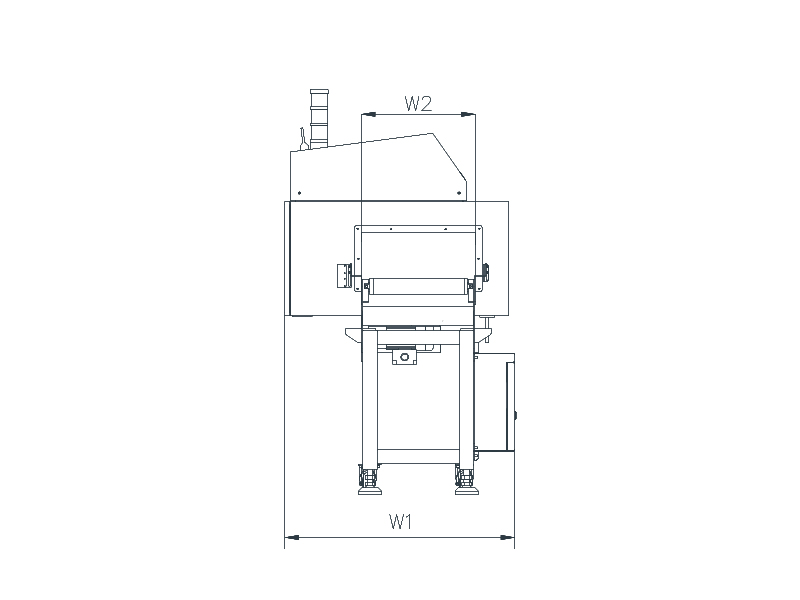

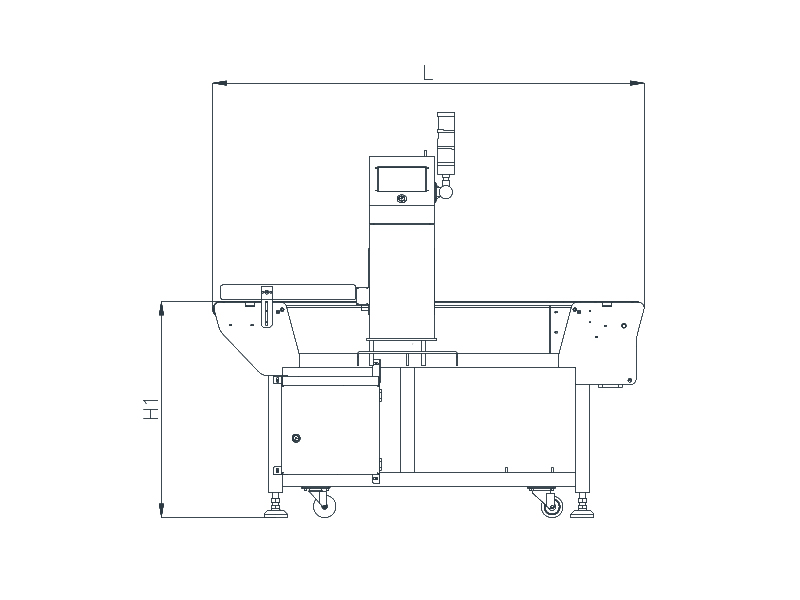

Dimensions

  • dmd200_WP05_01
  • dmd200_WP05_02
Model 40 50
Length (mm) 1200/1500/1800
Conveyor Height H1 (mm) Customizable
Machine Width W1 (mm) 820 920
Channel Width WP (mm) 400 500

Machine Length 1.2m, 1.5m, 1.8m
Detection Frequency Built-in 5 groups of frequencies,optional dual frequency combination
Can detect dry,wet,wet salt,aluminized film packaging items
Display 7 inches TFT LCD display with Touch panel
External Interface USB/LAN/Printer/4G Remote Control/AI Remote Control
Conveyor Speed 20,30,40 meter/minutes(Optional)
Power AC220V,50/60Hz
Alarm Mode Sound-light Alarm/Alarm Stop/Automatic Sorting System(Optional)
Conveyor Material Food grade PU Belt/Chain Belt
Operating Temperature 0~45C
Humidity 30~85% Humidity, non-condensing
Environmental Sealing IP66
Machine Material SUS304,Surface Drawing Process/Mirror Surface/Scrub(Optional)
