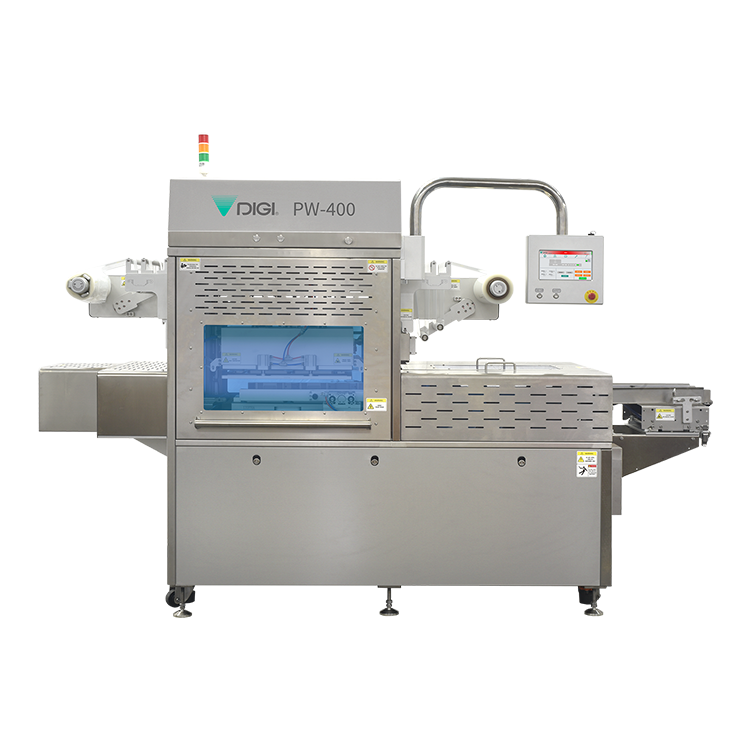

Cardboard and Tray Skin Packaging Machine
PW-400
Industrie agroalimentairePrésentation
PW-400 is a fully automatic cardboard and tray skin packaging machine that can be applied to various industries and products, including meat, seafood, personal care, and daily chemical products.

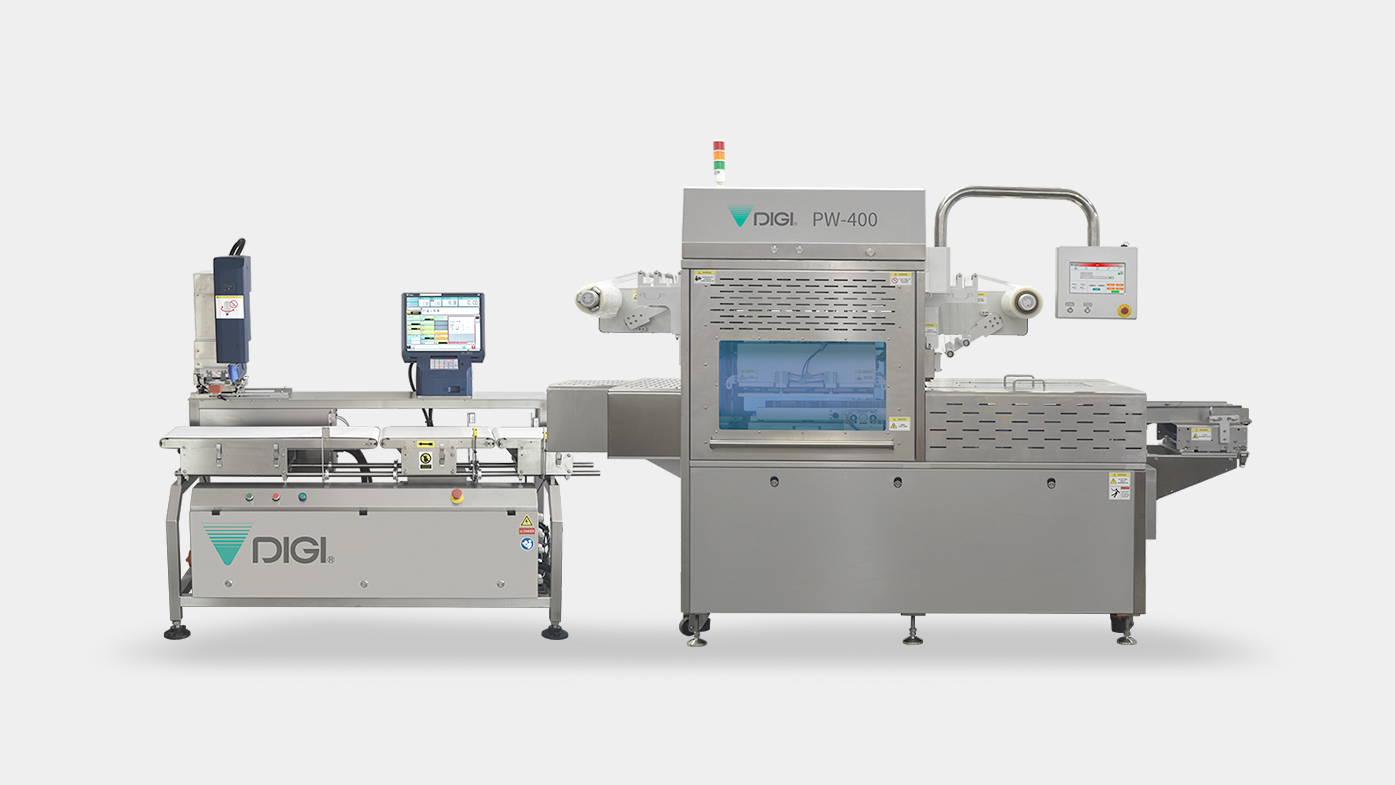

One operator, maximum output

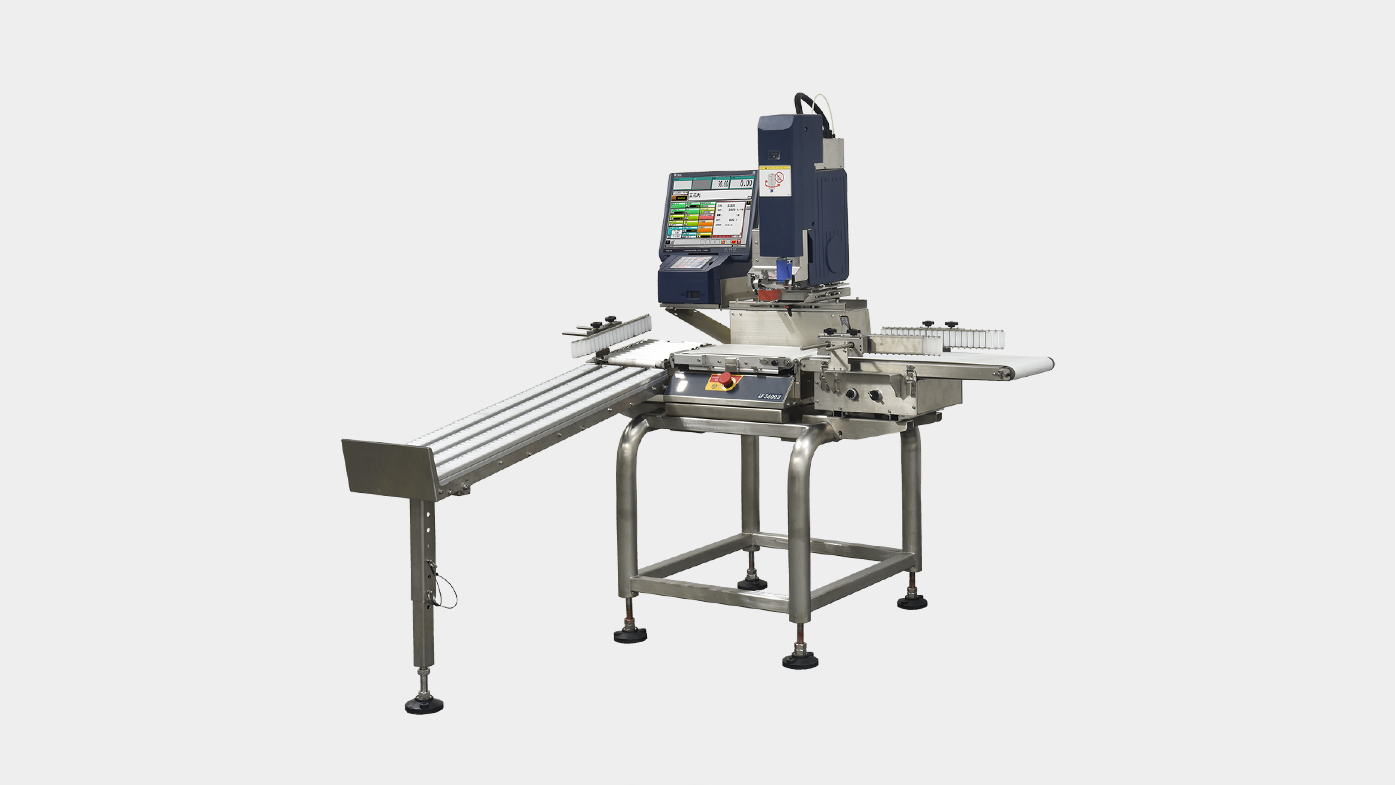

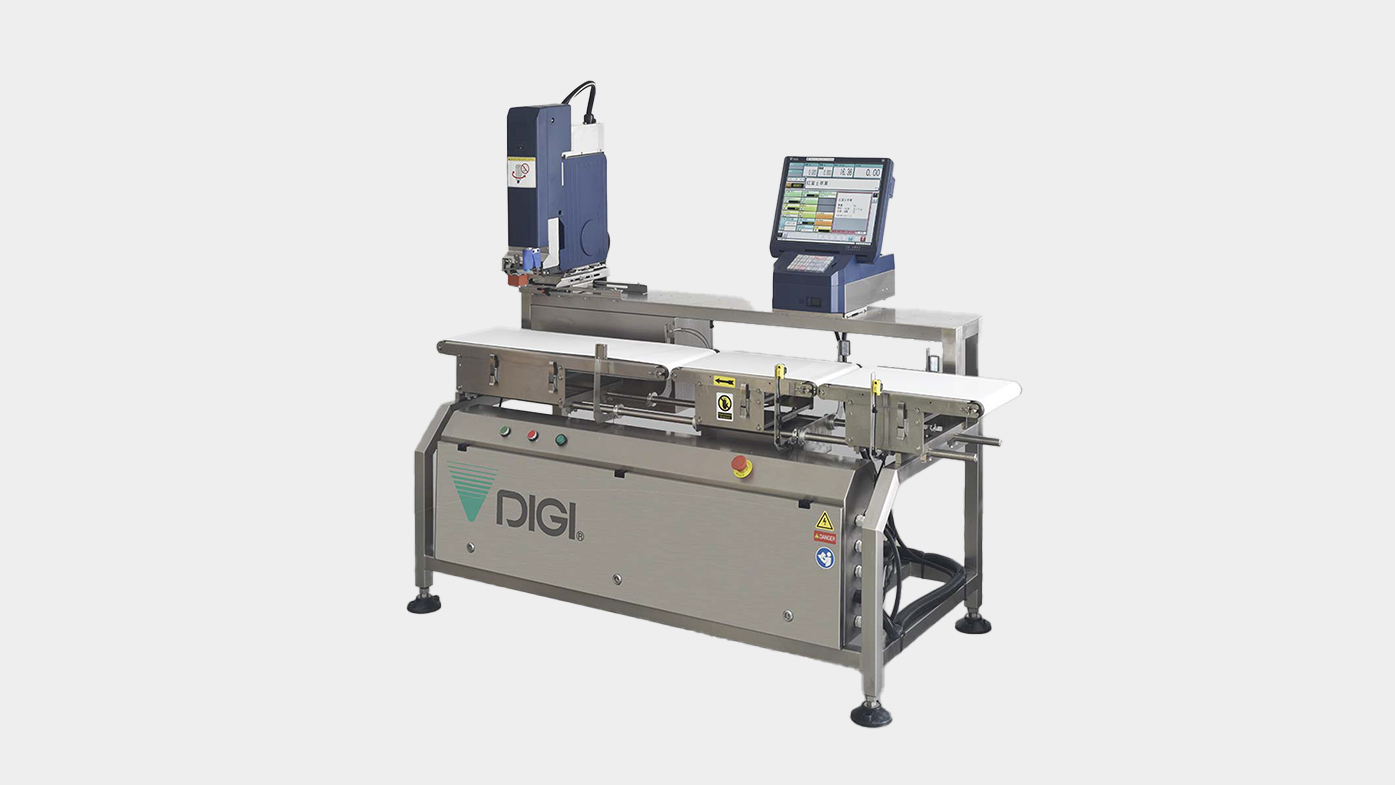

This machine is ideally suited to the demands of seafood and meat processing facilities. When integrated with DIGI's automated weighing and labeling equipment, a single operator can efficiently execute the packaging, weighing, and labeling procedures - Boosting efficiency and reducing labor costs.
Maximize shelf life and product appeal
Skin packaging is the perfect response to today's consumer demands for premium quality presentation and food safety. Its exceptional clarity and luster vividly showcase product freshness, while its barrier properties can greatly extend shelf life, lock in nutrients, and maintain the natural flavor of food.

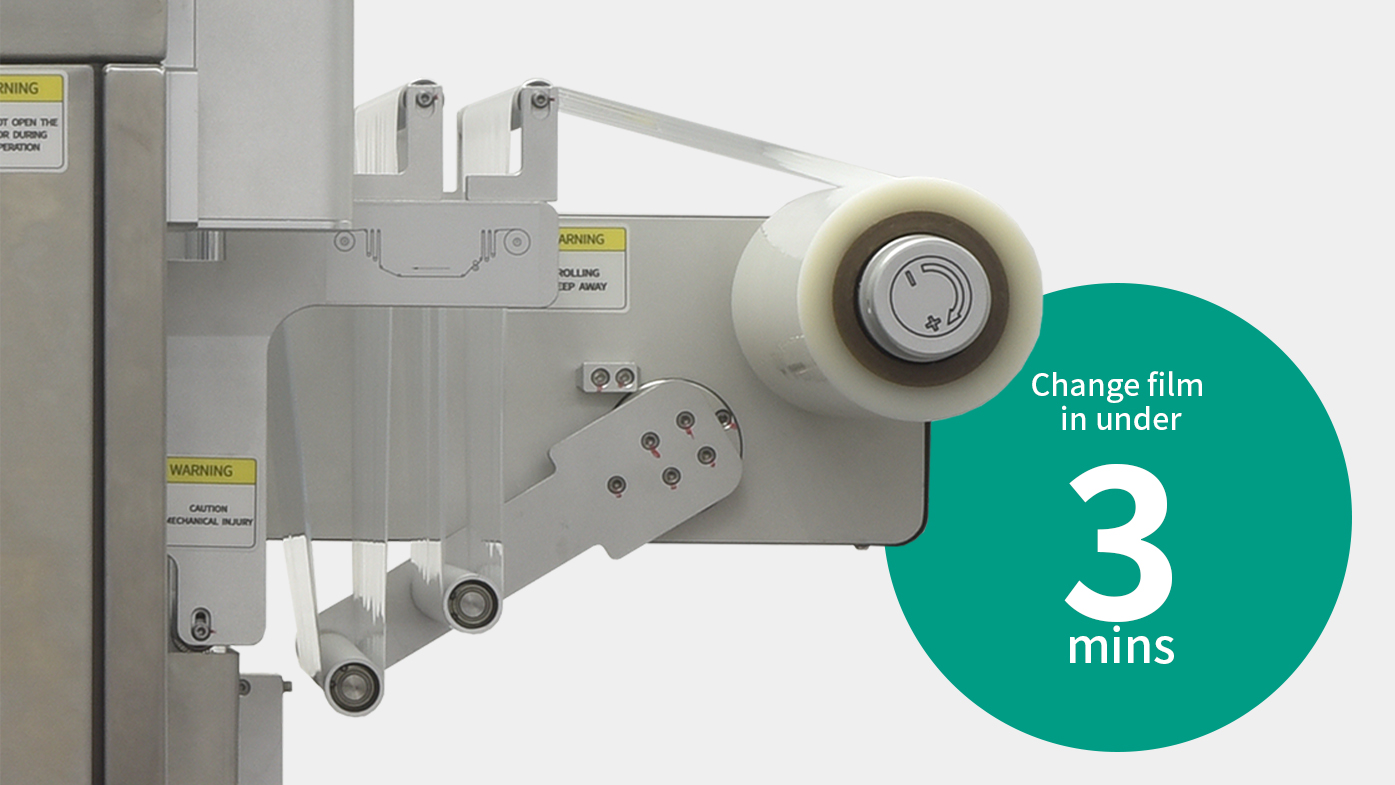

Quick, easy film change
Clear instructions and a simple design mean just one operator can replace the film in under three minutes after minimal training, reducing machine downtime.

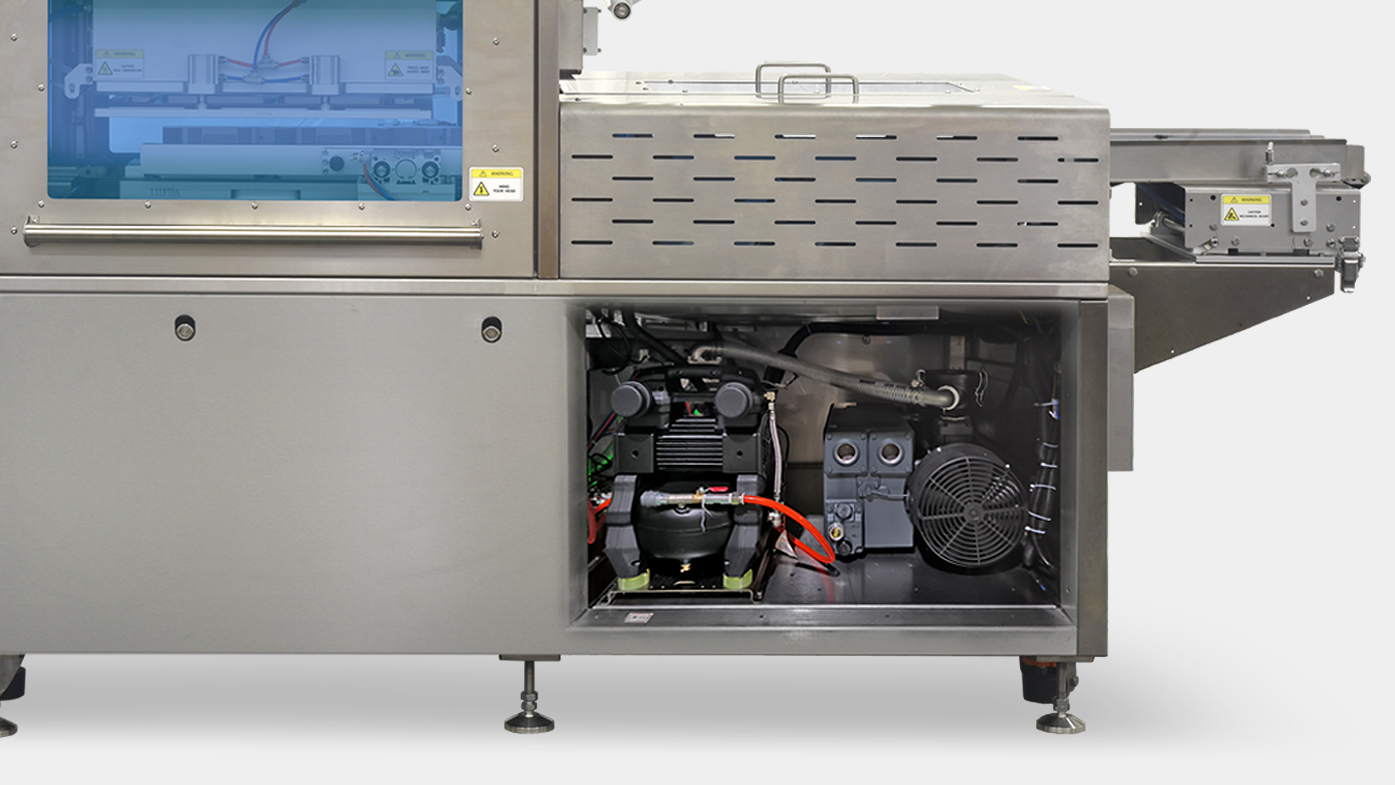

Integrated air compressor
This machine features a built-in air compressor, eliminating the need for external air supply. Simply plug it in and start working. This streamlined design reduces setup costs and simplifies operation.
Caractéristiques

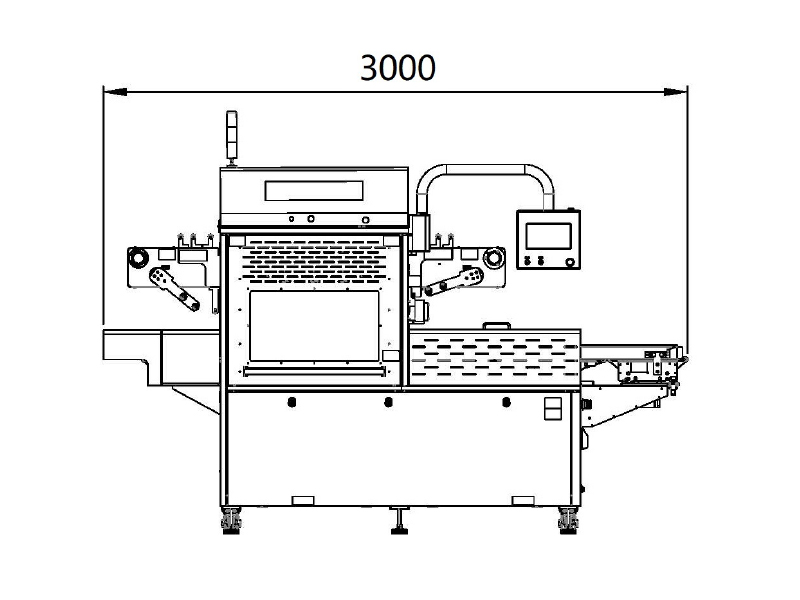

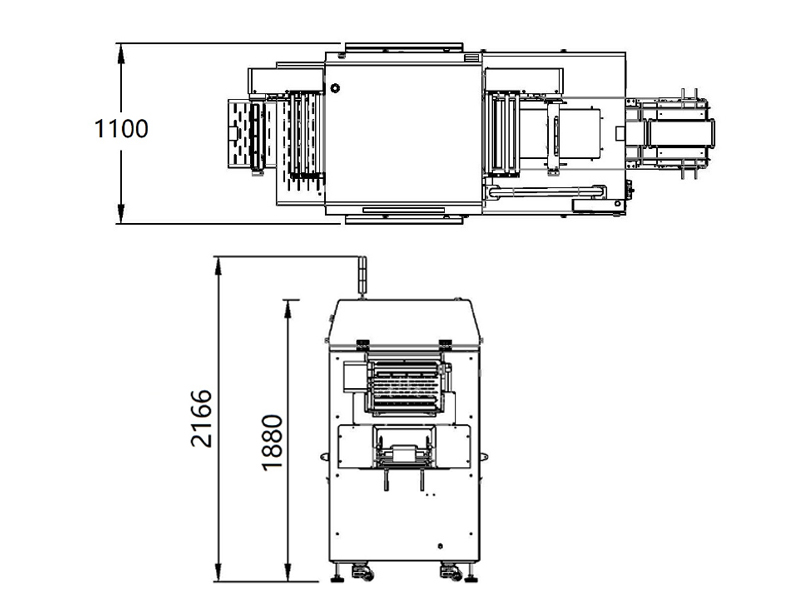

Dimensions
Packaging Type | Skin Packaging | Film Material | Skin Film |
---|---|---|---|
Packaging Item | Tray and Cardboard | Film Width (mm) | 340-390 |
Cycle Time (seconds) | 20-25 | Film Thickness (um) | 100 |
Packaging Speed (PC S/Hour) | 290-360 | Diameter of Film Roll (mm) | Max. 260 |
Power Supply | AC 380V, 50Hz/60Hz | Core Diameter of Film Roll (mm) | 76 |

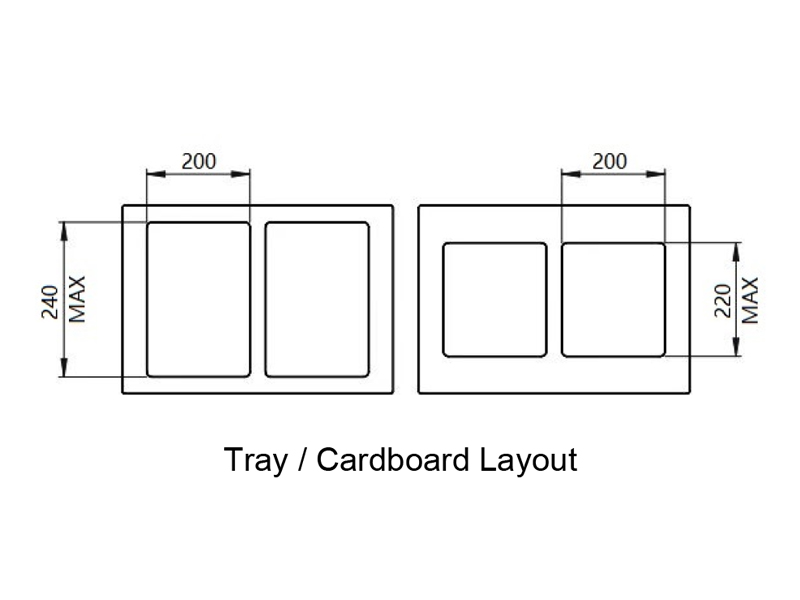

Power Consumption (kW) | 10 | Size of Tray/Cardboard Two Cavities (W x L mm) | Max. 200 x 240 |
Gas Supply (MPa) | 0.6~0.8 (Air compressor integrated) | Max. Packing Height of Cardboard (mm) | 30 |
Machine Weight (kg) | 1044 | Max. Packing Height of Tray (mm) | 70 (Max. deep of tray 40+ Max. protruding surface 30) |
Overall Dimensions of Machine (L x W x H mm) | 3000 x 1100 x 2166 | Machine Height When Cover Opens (mm) | 2520 |
