Wide and Long Conveyors for Weigh Price Labeling of Larger Products
WIL-700 II
Industrie agroalimentairePrésentation

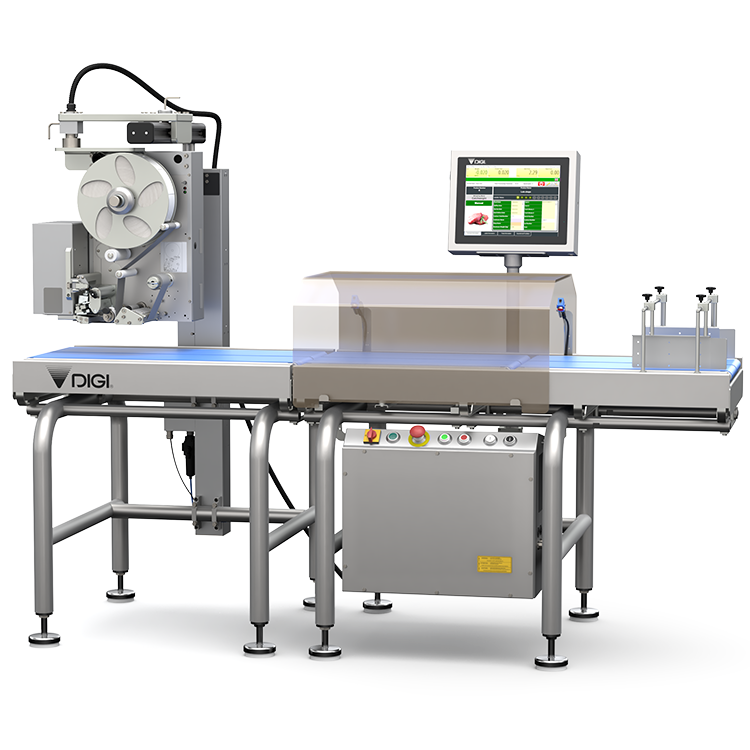

The WIL-700 II Weigh Price Labeler's conveyor is both wider and longer, designed specifically for processing larger products at a speed of up to 36ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.
Caractéristiques

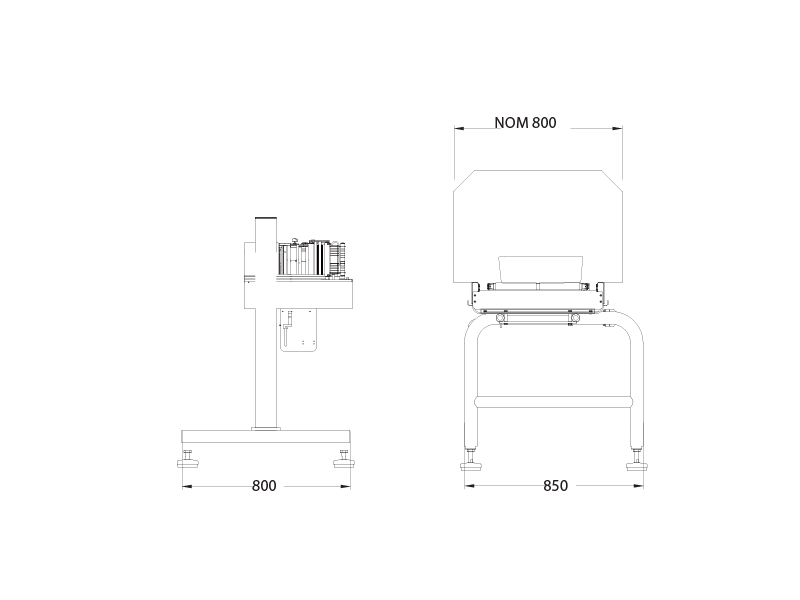

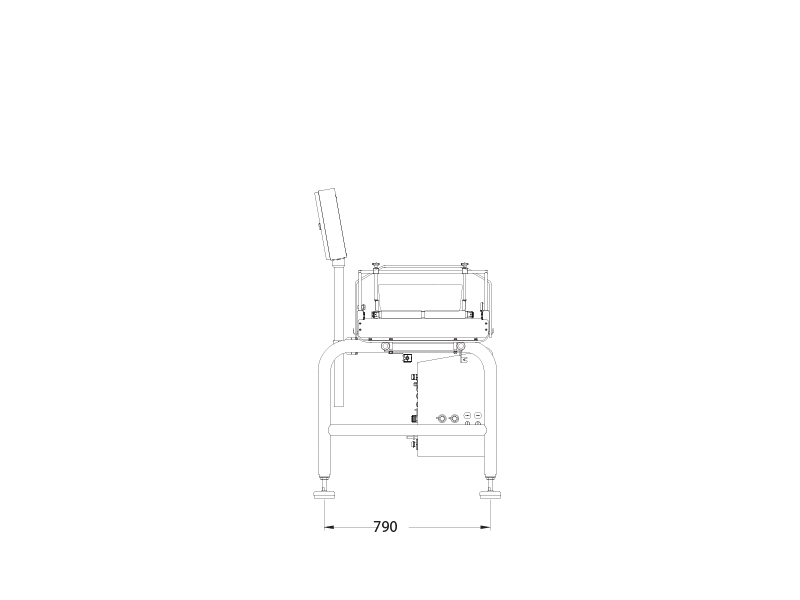

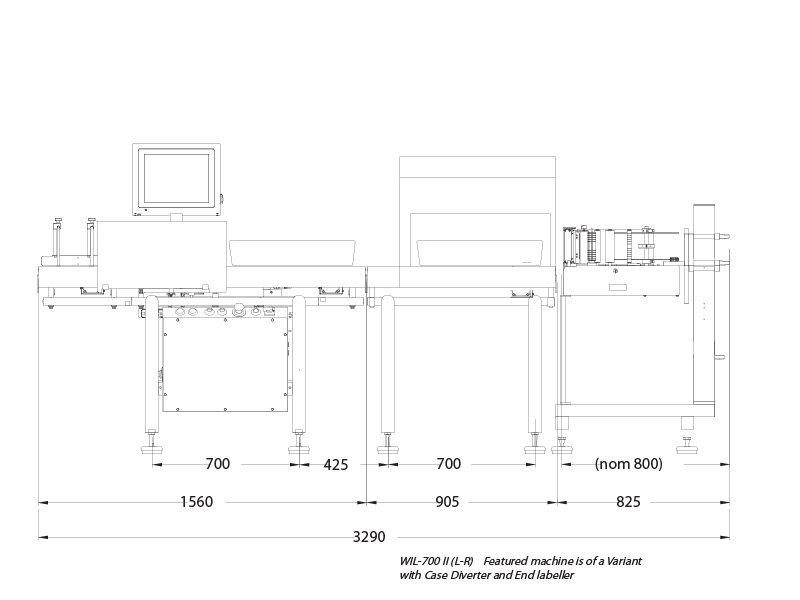

Dimensions
Weighing
| Capacity | Max 15 kg | ||
|---|---|---|---|
| Single Interval | e= 5g | ||
| Pack Speed | up to 36 packs per minute | ||
| Pack Size | L80-600mm x W40-400mm x H180mm | ||
Display
| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
|---|---|
| Labelers | Multiple labelers/printers |
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features
| Scale Length | 660mm |
|---|---|
| Scale Width | 400mm |
| Scale Cover | 'lift-off' formed polycarbonate |
| Sensors | Horizontal retro reflective |
| Labellers | Signature |
| Pack Guides | S100 tall guides |
| Conveyors | Split blue belts |
Modèles

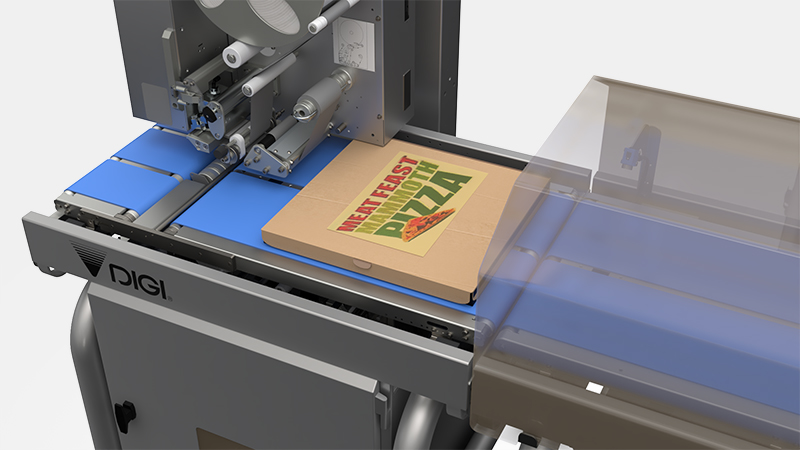

Top, Bottom, Side and Front Labelling
The Signature labeller can be positioned differently to suit the products being weighed and labelled.
