Be free from limits. Be free from the status quo.

SM-6000

Retail

Main Features

Let SM-6000 redefines user experience with our state-of-the-art innovation! Fully equipped with the latest technologies and enchanting features that provides smooth and efficient practicality for both operators and shoppers. Generate additional revenue and brand awareness with 15” high contrast colour customers display.

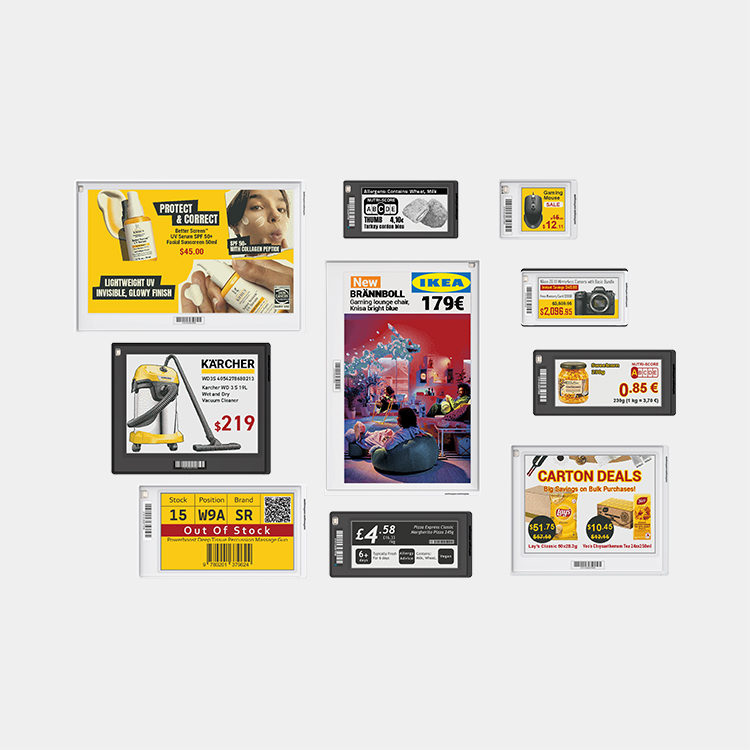

Relish in the swift updating speed of e.Labels with Hi-Touch or InfoTags. The low-profile platter and anti-stick operator screen with capacitive touch is one of the many features designed for this model.

Reinvent the daily experience with the latest SM-6000 scale today!

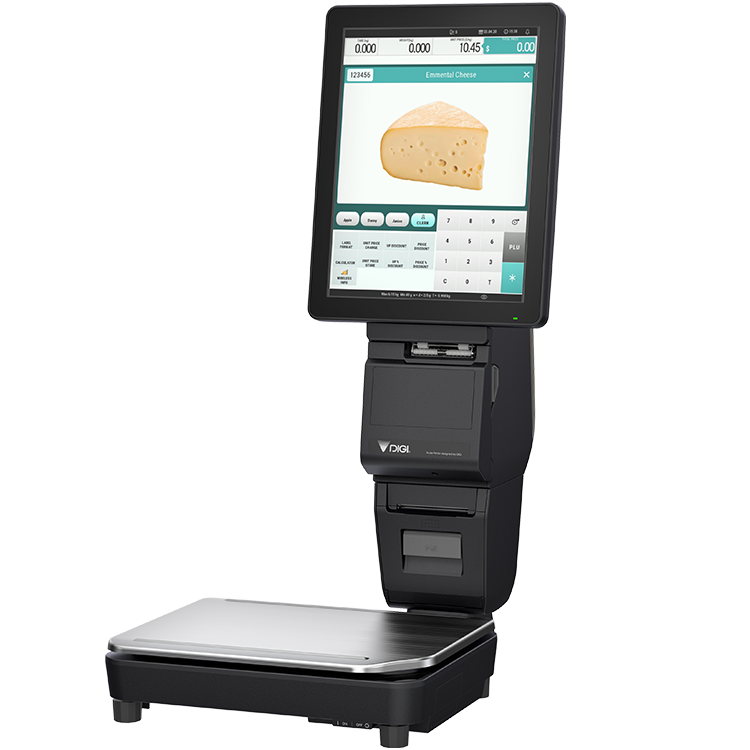

SM-6000 – A PC scale with innovative design and three groundbreaking technologies

Be Free from Limits, the SM-6000 is equipped with 3 unique technologies that free up end users’ time and space, challenging the status quo. The SM-6000’s unique and functional design allows for a pleasant and customer-centric shopping experience.

e.Sense

e.Sense is a motion-activated sensor that can be installed on container or dispenser to transmit the PLU code automatically to the SM-6000.

Easy to set up, this eliminates error and effectively reduces shrinkage while allowing ground staff to be deployed to other high-value activities such as inventory management.


Bring-Your-Own-Container

With the SM-6000, customers can enjoy a sustainable and packaging-free shopping experience by bringing their own containers. The SM-6000 uses radio frequency identification technology to detect the container's registered tare weight through its RFID sticker label, allowing customers to purchase only the amount they need, preventing unnecessary wastage for both retailers and consumers.

sm6000_WP04_02

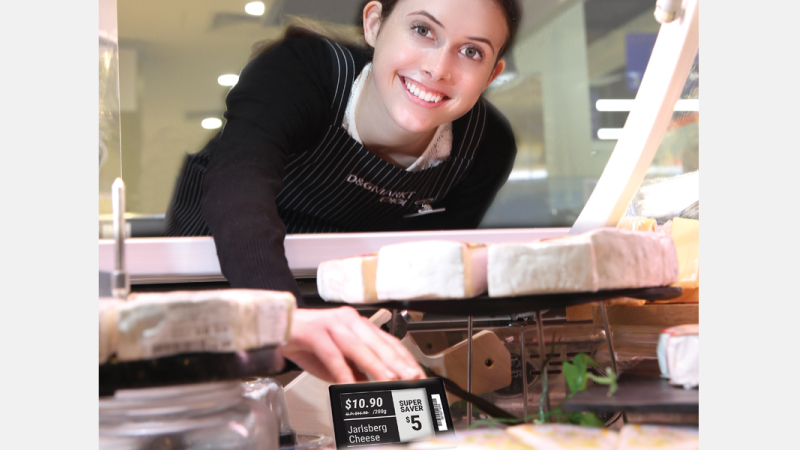

e.Label Hi-Touch remote preset keys

Do away with preset keys by using the tap sensor technology. Operators can now easily call up the correct PLU via the e.Label with Hi-Touch. The responsive and competent system reduces human errors and eliminates the need to memorise PLU numbers.

Equipped with the IP67 rating, e.Label is dust and water resistant and is compatible for use with all DIGI PC scales. It is designed with a high contrast ePaper display, ensuring high screen readability for your customers. Engage with your customers by customising with QR codes that can be accessed through a smartphone.

sm6000_WP04_03

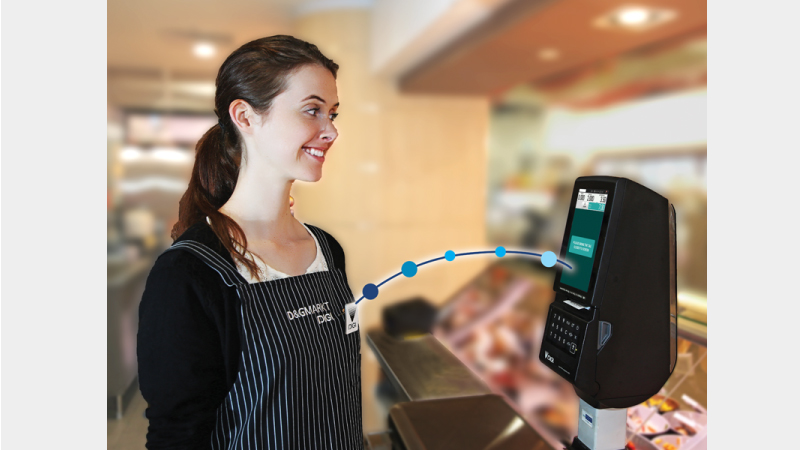

Speed ID

Replace manual key in of a clerk password with the near field identification feature that offers a hassle-free user login. It also prevents unauthorised access while the built-in operational log ensures accountability and transparency.

sm6000_WP04_04

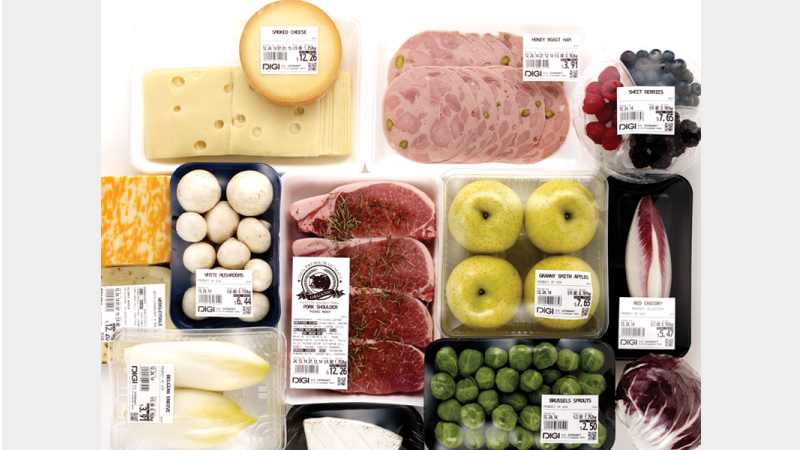

Linerless labels with auto-cutter

Fit in twice as many label prints on a single label roll without the liner film sheet and enjoy zero backing paper waste at work! Create different label prints of variable lengths at ease and reduce roll replacement for workplace efficiency.

Revel in extra savings on storage and logistics costs as linerless labels require lesser storage space.

sm6000_WP04_10

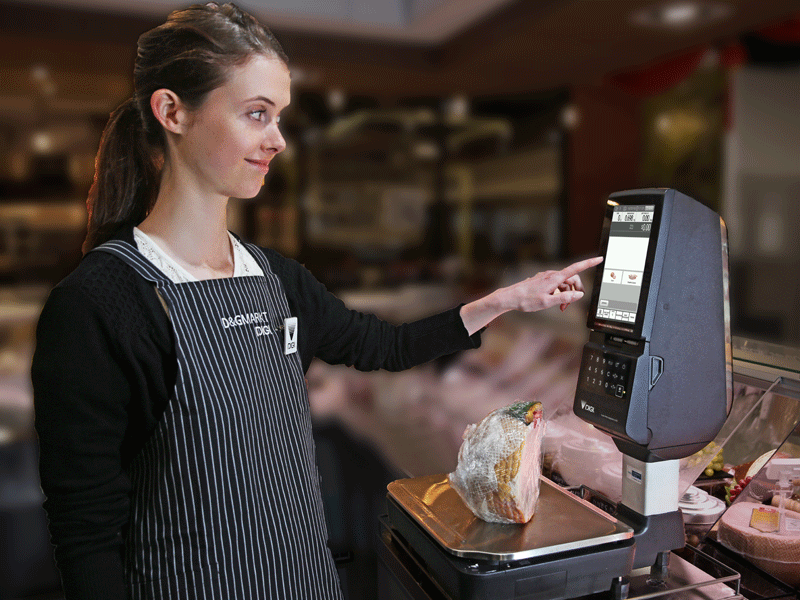

Portrait screen with Capacitive touch

Portrait display has never been more comfortable! Operators can now fully utilise the display screen with videos for advertisements and branding.

Designed to mimic user's daily experience with smartphone and electronic gadgets, the capacitive touch is highly responsive and is easy to clean.

sm6000_WP04_08

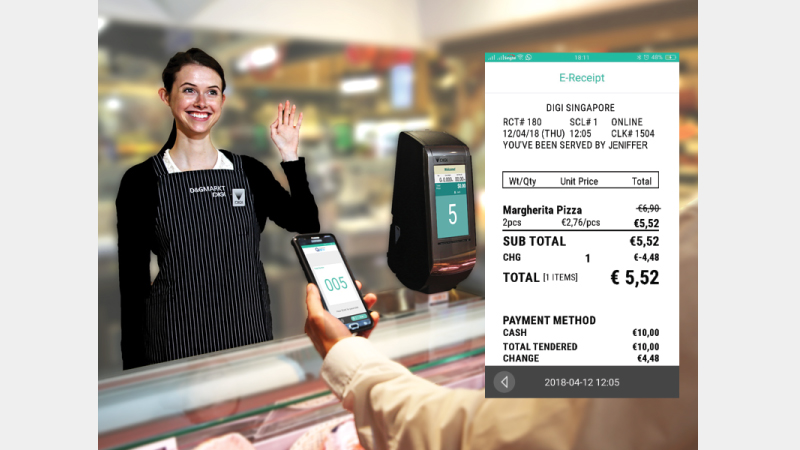

Queue management

Redefine customers’ queuing experience with effective queue management solution! Queue management keeps customers informed of their queue status, cutting down waiting time and minimises walkaways.

Operators can also monitor queue status through queue indicator to manage customer flow efficiently.



sm6000_WP04_09

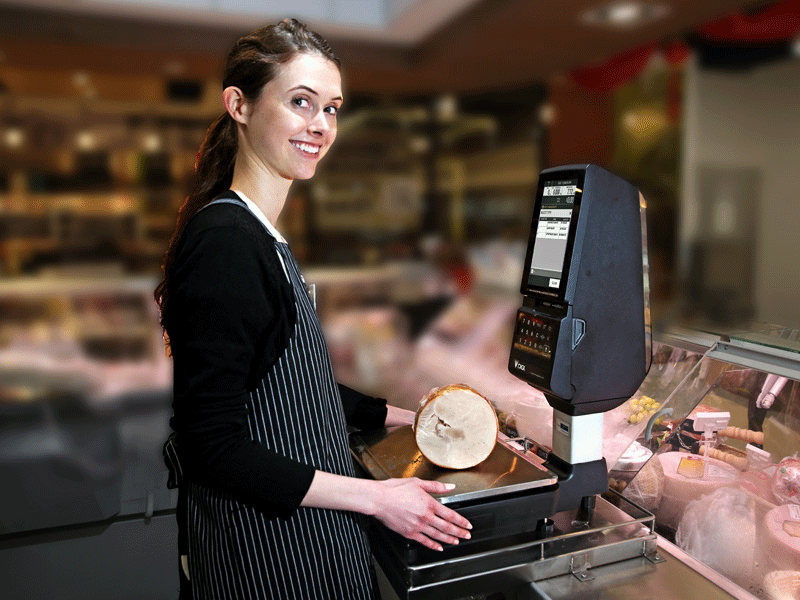

Waste management

Track and managed wastage effortlessly with indicative reports from SM-6000! Wastage can be accurately captured by expiry date or weight of items.

Our solution helps your business boost profitability and reduce unnecessary waste with an in-depth understanding of customers shopping patterns with these reports.

sm6000_WP04_13

Power saving

In line with the 80PLUS silver credential, SM-6000 let businesses enjoy savings on electricity during operation hours!

Specifications

Dimensions

  • sm6000_WP05_01
  • sm6000_WP05_02
  • sm6000_WP05_03

Weighing

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g


General

Display Resolution 1/ 3,000, 1/ 6,000, 1/ 7,500
Keyboard 18 x Keypad (For 8" Operator only)
Label / Receipt Types Linerless With Auto-Cutter
Label / Receipt Roll Diameter Max 95mm
Label / Receipt Print Width Max 60mm
Label / Receipt Paper Width Max 62mm
Label / Receipt Printing Speed Max 150mm / second*
Label / Receipt Print Resolution  300 dpi
Power Source Compiled to 80PLUS Power Saving**
Operating Temperature -10°C to +40°C
Humidity 15% to 85% RH Non-Condensation
Standard Interface  Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11
*   To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for details.
** 100-120Vac Gold   (North America, Canada and Japan)
    210-240Vac Silver (European, UK and most of Asia)


Model Type Dimension  W x D x H (mm) Operator display Customer display Net weight
SM-6000 EV Elevated  364 x 464 x 606 8" TFT WVGA with
Capacitive Touch
(480 x 800)
8" TFT WVGA (480 x 800) 13.3 kg
SM-6000 EV PLUS 411 x 460 x 766 15" TFT XGA (768 x 1024) 14.9 kg
SM-6000 EV (15) 411 x 464 x 762 15" TFT XGA with
Capacitive Touch
(768 x 1024)
8" TFT WVGA (480 x 800) 14.9 kg
SM-6000EV(15) PLUS 411 x 460 x 766 15" TFT XGA (768 x 1024) 17.4 kg
SM-6000 EV HC High Counter 518 x 284 x 429 8" TFT WVGA with
Capacitive Touch
(480 x 800)
8" TFT WVGA (480 x 800) 12.5 kg
SM-6000 EV HC PLUS 636 x 284 x 459 15" TFT XGA (768 x 1024) 14.1 kg
SM-6000EV (15) HC 586 x 284 x 576 15" TFT XGA with
Capacitive Touch
(768 x 1024)
8" TFT WVGA (480 x 800) 14.1 kg
SM-6000 SSP Self-Service 364 x 464 x 762 14.9 kg

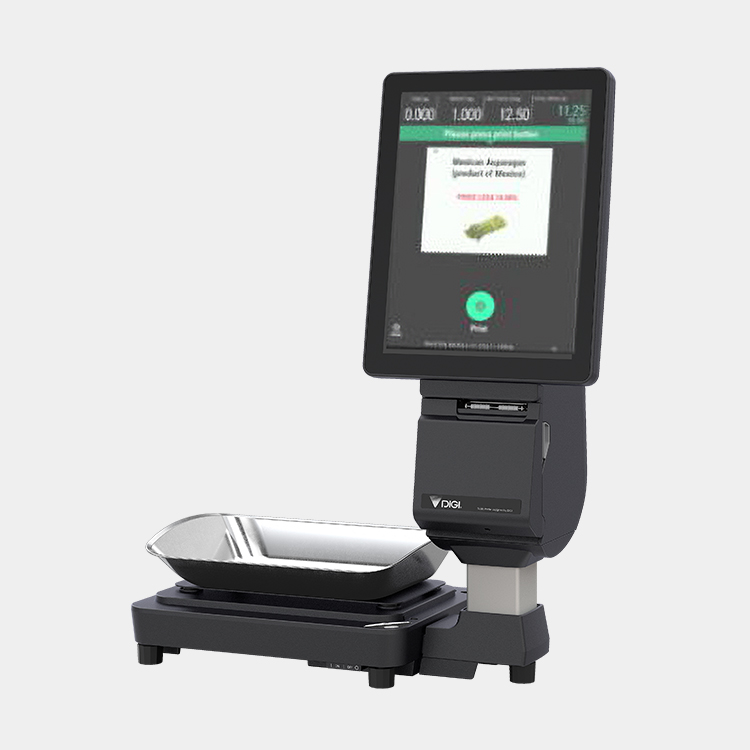

SM-6000 SSR (8) 515 x 284 x 549 8" TFT WVGA with Capacitive Touch
(480 x 800)
13.7 kg
SM-6000 SSR (15) 583 x 284 x 708 15" TFT XGA with
Capacitive Touch
(768 x 1024)
15.6 kg


Variations

sm6000_WP07_03

Elevated type with high-mount customer display

SM-6000 EV PLUS


sm6000_WP07_04

SSP type

SM-6000 SSP

Options

sm6000_WP09_02

Factory options

2nd Receipt Printer

Options Wireless LAN IEEE 802.11 a / b / g / n / ac, e.Label with Hi-Touch, InfoTag, e.Sense, Queue Printer, Base Station
Factory Option  2nd Receipt Printer except all the PC Based Self-Service System Scale Printer, Auto Tilt Sensor, Speed ID
