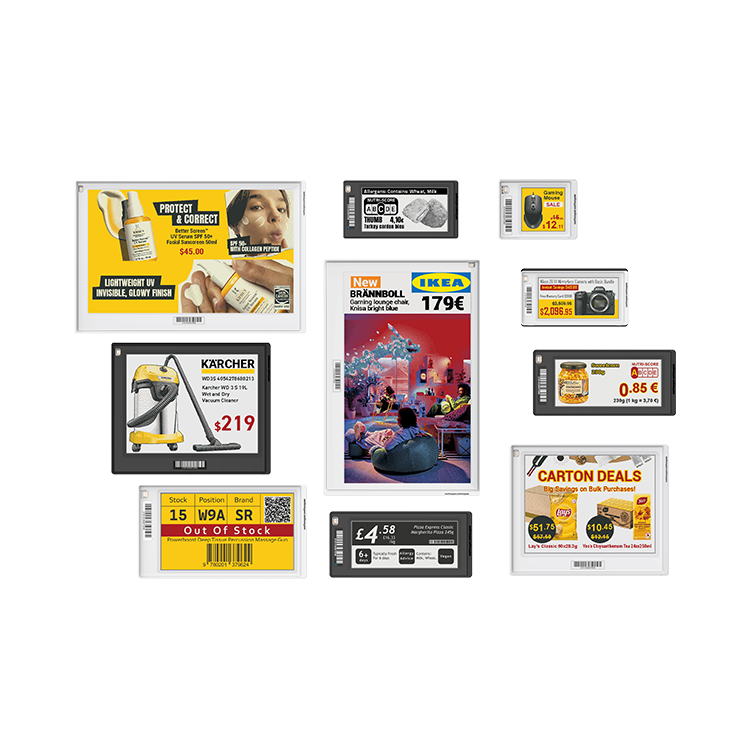

ESL- InfoTag
Reimagine Possibilities
Specification
Model (4-Colour) |
InfoTag 1.54" | InfoTag 2.13" | InfoTag 2.9" | InfoTag 3.7" | InfoTag 4.2" | InfoTag 5.83" | InfoTag 7.5" | InfoTag 10.2" | |
---|---|---|---|---|---|---|---|---|---|
Dimension W x H x D (mm) |
50 x 38 x 16 | 70 x 38 x 16 | 90 x 42 x 16 | 104 x 58 x 16 | 103 x 85 x 18 | 138 x 108 x 18 | 187 x 123 x 18 | 241 x 169 x 18 | |
Screen Size | 1.54" | 2.13" | 2.9" | 3.7" | 4.2" | 5.83" | 7.5" | 10.2" | |
Display Size | Pixels | 152 x 152 | 250 x 122 | 296 x 128 | 416 x 240 | 400 x 300 | 648 x 480 | 880 x 528 | 960 x 640 |
mm | 27 x 27 | 49 x 24 | 67 x 29 | 82 x 47 | 85 x 64 | 119 x 88 | 163 x 98 | 216 x 144 | |
Resolution (DPI) | 140 | 131 | 112 | 130 | 120 | 138 | 136 | 113 | |
Display Colours | Black, White, Red and Yellow | ||||||||
Operating Temperature | 5°C to 40°C | ||||||||
Display Technology | ePaper | ||||||||
Compliance | CE, RoHS | ||||||||
Operating Humidity | 65% Max. RH Non-Condensing | ||||||||
Water Protection (IP Rating) |
IPX5 | ||||||||
NFC | Available | ||||||||
LED Colours | Red, Yellow, Green, Cyan, Magenta, Blue and White |
Model (3-Colour) |
InfoTag 1.54" | InfoTag 2.13" | InfoTag 2.9" | InfoTag 3.7" | InfoTag 4.2" | InfoTag 5.83" | InfoTag 7.5" | InfoTag 10.2" | |
---|---|---|---|---|---|---|---|---|---|
Dimension W x H x D (mm) |
50 x 38 x 16 | 70 x 38 x 16 | 90 x 42 x 16 | 104 x 58 x 16 | 103 x 85 x 18 | 138 x 108 x 18 | 187 x 123 x 18 | 241 x 169 x 18 | |
Screen Size | 1.54" | 2.13" | 2.9" | 3.7" | 4.2" | 5.83" | 7.5" | 10.2" | |
Display Size | Pixels | 152 x 152 | 250 x 122 | 296 x 128 | 416 x 240 | 400 x 300 | 648 x 480 | 800 x 480 | 960 x 640 |
mm | 27 x 27 | 49 x 24 | 67 x 29 | 82 x 47 | 85 x 64 | 119 x 88 | 163 x 98 | 216 x 144 | |
Resolution (DPI) | 140 | 131 | 112 | 130 | 120 | 138 | 124 | 113 | |
Display Colours | Black, White and Red | ||||||||
Operating Temperature | 5°C to 40°C | ||||||||
Display Technology | ePaper | ||||||||
Compliance | CE, RoHS | ||||||||
Operating Humidity | 65% Max. RH Non-Condensing | ||||||||
Water Protection (IP Rating) |
IPX5 | ||||||||
NFC | Available | ||||||||
LED Colours | Red, Yellow, Green, Cyan, Magenta, Blue and White |
Model (2-Colour) |
InfoTag 2.13" LT | InfoTag 2.9" LT | |
---|---|---|---|
Dimension W x H x D (mm) |
70 x 38 x 16 | 90 x 42 x 16 | |
Screen Size | 2.13" | 2.9" | |
Display Size | Pixels | 250 x 122 | 296 x 128 |
mm | 49 x 24 | 67 x 29 | |
Resolution (DPI) | 131 | 112 | |
Display Colours | Black and White | ||
Operating Temperature | Normal | ― | |
Low | -25°C to 5°C | ||
Display Technology | ePaper | ||
Compliance | CE, RoHS | ||
Operating Humidity | 85% Max. RH Non-Condensing | ||
Water Protection (IP Rating) |
IPX5 | ||
NFC | Available | ||
LED Colours | Red, Yellow, Green, Cyan, Magenta, Blue and White |
